主要特點
-
Sunlight Readable
-
MTBF 100K
-
Low Power Consumption

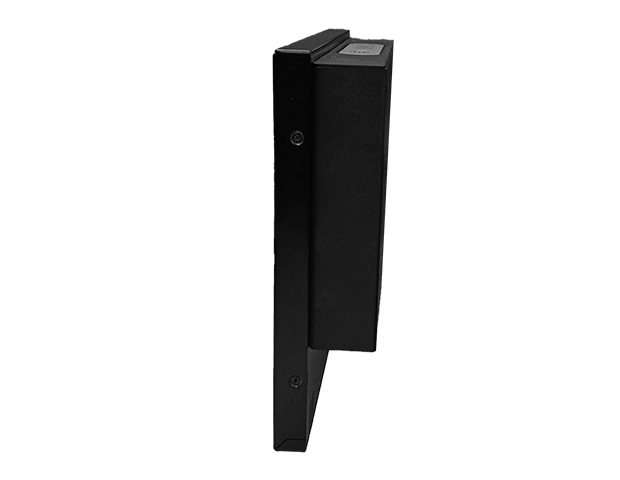

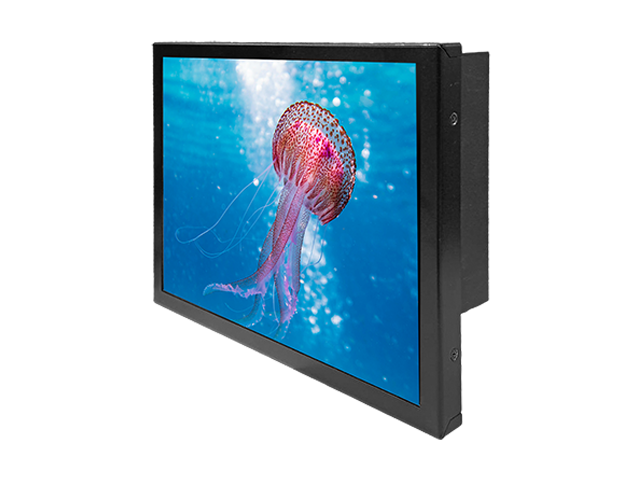

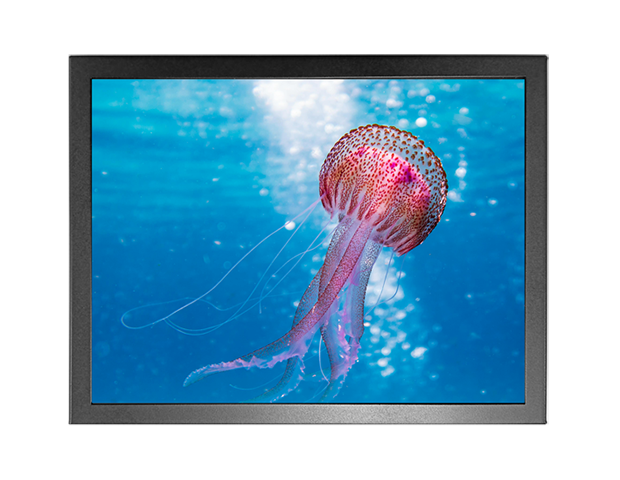

The DLD1040-I is a 10.4 inch industrial grade sunlight readable LCD, with high brightness 2000 nits, it produces sharp images, crisp text and lifelike colors. The Durapixel LED backlight technology ensures high reliability and low power consumption, suitable for outdoor application, kiosk, factory automation, military, transportation and gaming application.
| Model Name | DLDL1040-I | ||
| Description | 10.4” TFT LCD, 2000nits LED Backlight, 1024x768 | ||
| Screen Size | 10.4” | ||
| Display Area (mm) | 210.432 (H) x 157.824(V) mm | ||
| Brightness | 2000 cd/m2 | ||
| Resolution | 1024x768 | ||
| Aspect Ratio | 4 : 3 | ||
| Contrast Ratio | 1300 : 1 | ||
| Pixel Pitch (mm) | 0.2055(H) x 0.2055(V) | ||
| Pixel Pre Inch (PPI) | 123 | ||
| Viewing Angle (Min.) | 178°(H),178°(V) | ||
| Color Saturation (NTSC) | 76% | ||
| Display Colors | 16.7M | ||
| Response Time (Typical) | 25ms | ||
| Panel Interface | LVDS | ||
| Input Interface | HDMI, DP | ||
| Input Power | DC 12V | ||
| Power Consumption | 12W | ||
| OSD Key | 4 Keys (Power Switch, Menu, +, -) | ||
| OSD Control | Brightness, Color, Contrast, H/V Position…etc | ||
| Dimensions (mm) | 233.6 x 181 x 46 (T) | ||
| Bezel Size(U/B/L/R) | 11.59/11.59/11.59/11.59mm | ||
| Weight (Net) | 1.25 kg | ||
| Mounting | VESA 75x75, 100x100 mm | ||
| Operating Temperature | -30℃ ~ 80℃ | ||
| Storage Temperature | -30℃ ~ 80℃ | ||
