主要特色
-
Sunlight Readable
-
MTBF 100K
| Model Name | SSF3525-A | SSH3525-A | SSD3525-A |

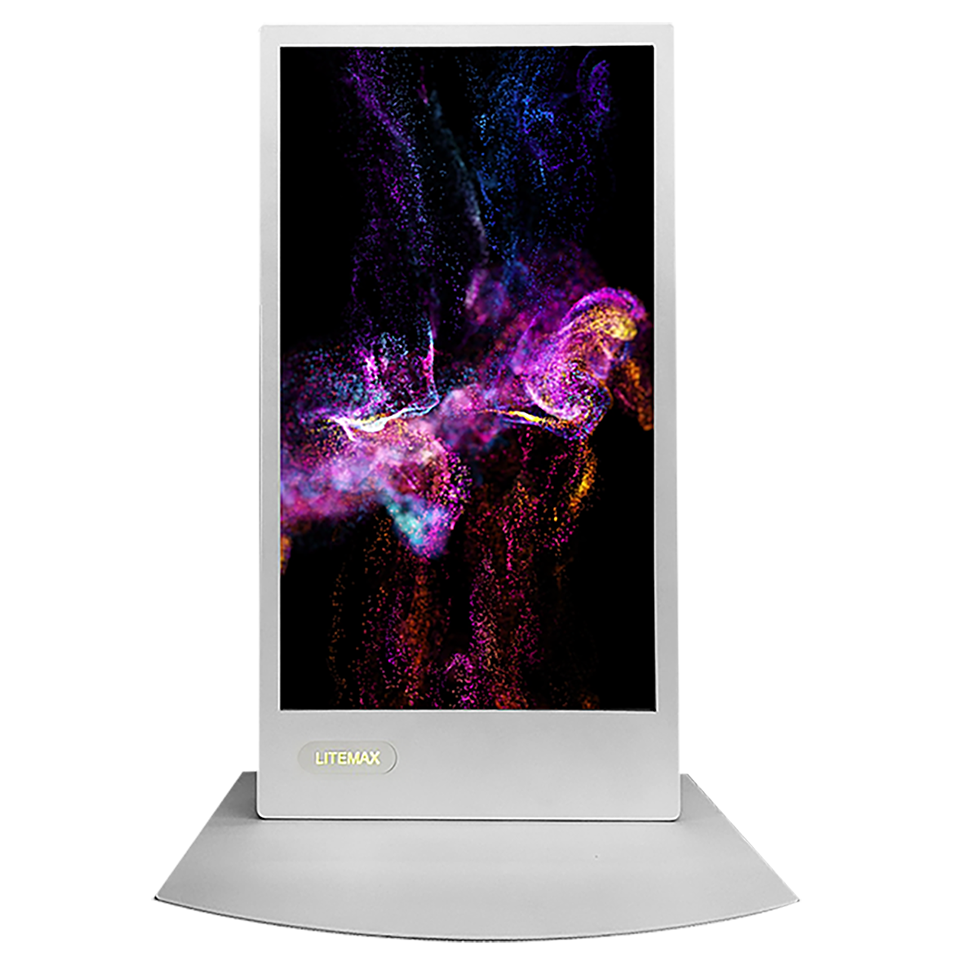

| Description | 35.2” Resizing LCD, 1000nits LED backlight, 1850x2160 | ||
| size | 35.2” | ||
| Display area (mm) | 582.750(H) x 680.400(V) | ||
| Brightness | 1000 cd/m² | ||
| Resolution | 1850x2160 | ||
| Aspect ratio | 7.7:9 | ||
| Contrast ratio | 6200:1 | ||
| Pixel pitch (mm) | 0.315(H) x 0.315(V) | ||
| Pixel per inch (PPI) | 80 | ||
| Viewing angle | 178° (H), 178° (V) | ||
| Color saturation (NTSC) | 84% | ||
| Display colors | 1.07B | ||
| Response time (Typical) | 8ms | ||
| Video interface | V-by-One | DVI-D, HDMI, DP | |
| Input power | DC24V | ||
| Power consumption | 76W | 81W | |
| Dimensions (mm) | 630.5 x 711.9 x 26 | 633 x 714.4 x 74.7 | |
| Bezel size (U/B/L/R) | 14.400/17.100/23.875/23.875 | 15.7/18.4/25.1/25.1 | |
| Weight (Net) | 8kg | 15.3kg | |
| Mounting | VESA 400x300, 400x200 | ||
| OSD key | 5 Keys (Power Switch, Menu, +, Exit, -) | ||
| OSD control | Brightness, Color, Contrast, Auto Turing, H/V Position…etc | ||
| Operating temperature | 0°C ~ +50°C | ||
| Storage temperature | -20°C ~ +60°C | ||
下載
-
標題
SSD3525-A
類型Datasheet
發佈日期2021/Aug/21
-
標題
SSF_H3525-A
類型Datasheet
發佈日期2021/Aug/21
