Home / Product / Industrial Display / Ubipixel™-Industrial High Brightness LCDs / ULO2302

industrial grade LCD

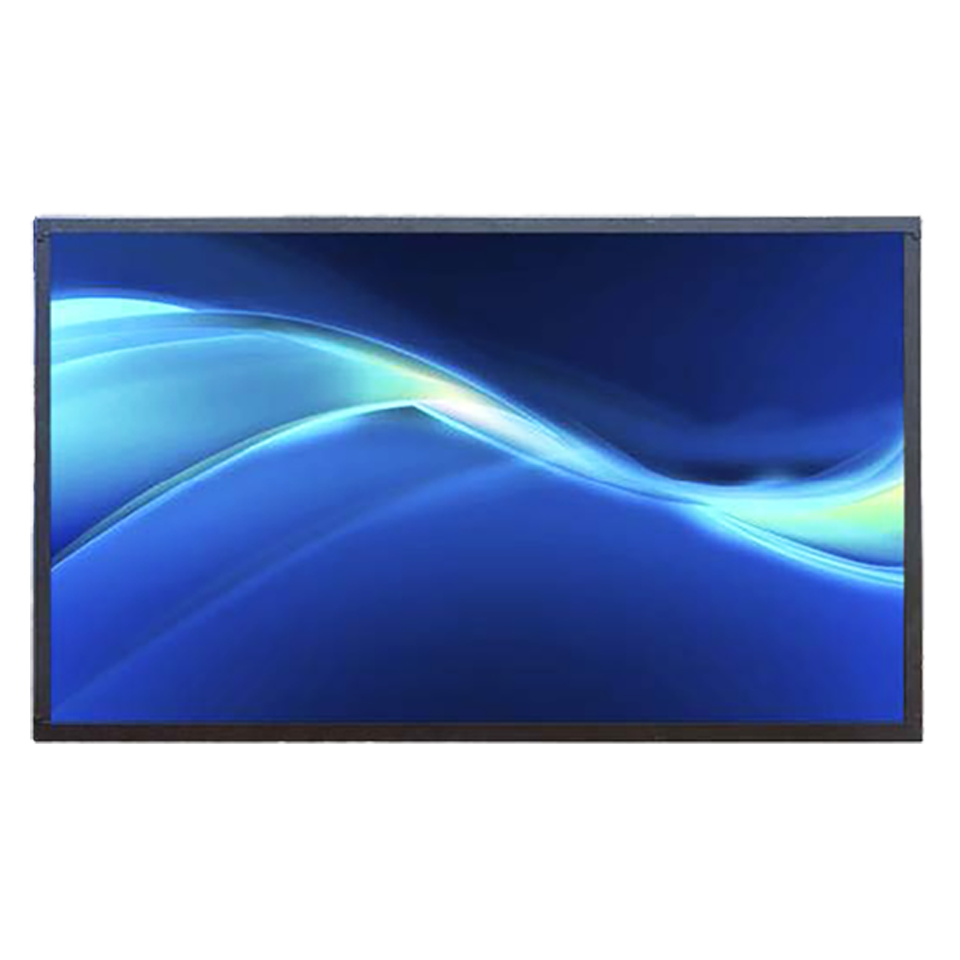

ULO2302

23” TFT LCD, 400nits LED Backlight, MaxRGB, 1920x1080
  • Brightness 400 nits
  • LED Backlight
  • PCT Touch
  • Low Power Consumption
  • High Color Saturation
  • BL MTBF: 100,000 hours
PRINT
INQUIRY COMPARE

Main Features

  • Transportation

  • Low Power Consumption

  • Gaming

  • Automation

SPECIFICATION DOWNLOAD
Model Name ULO2302-BGW-I11 ULO2302-BTW-I11
Description 23” TFT LCD, 400 nits LED Backlight, MaxRGB , 1920x1080
size 23”
Display area (mm) 509.2 (H) x 286.4(V)
Brightness 400 cd/m2
Resolution 1920x1080
Aspect ratio 16 : 9
Contrast ratio 1200 : 1
Pixel pitch (mm) 0.2652(H) x 0.2652(V)
Pixel per inch (PPI) 96
Viewing angle 178°(H),178°(V)
Color saturation (NTSC) 91%
Display colors 16.7M
Response time (Typical) 14ms
Panel Interface LVDS
AD Board Input Interface DVI-I, DP
Touch Interface   RS232
Input power DC 12V
Power consumption 22W
Dimensions (mm) 536.2 x 317.9 x 55.4 539.2 x 317.9 x 55.4
Bezel size (U/B/L/R) 15.75/15.75/13.8/13.8
Weight (Net) 7kg
Mounting VESA 75 x 75, 100 x 100
OSD key 4 Keys (Power Switch, Menu, +, -)
OSD control Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Operating temperature 0 ˚C ~ 50 ˚C
Storage temperature -20 ˚C ~ 60 ˚C
