Home / Product / Industrial Computing / Industrial Panel PCs & Monitors / EN50155 Transportation Panel PCs / ITRP-2845-APL2

Transportation Panel PCs

ITRP-2845-APL2

28" PIS Full IP65 Fanless Panel PC
  • Intel® Atom®/Pentium®/Celeron® (ApolloLake SoC) Processor support
  • 28" LCD, 1920 x 357, 1000 nits
  • Full IP65 and fanless design
  • M12 connector for Dual GbE, USB, COM,Power input
  • Anti-Shock and vibration
PRINT
INQUIRY COMPARE

Main Features

  • Transportation

  • M12 Connectors

  • Full IP65

  • Fanless

INTRODUCTION SPECIFICATION DOWNLOAD

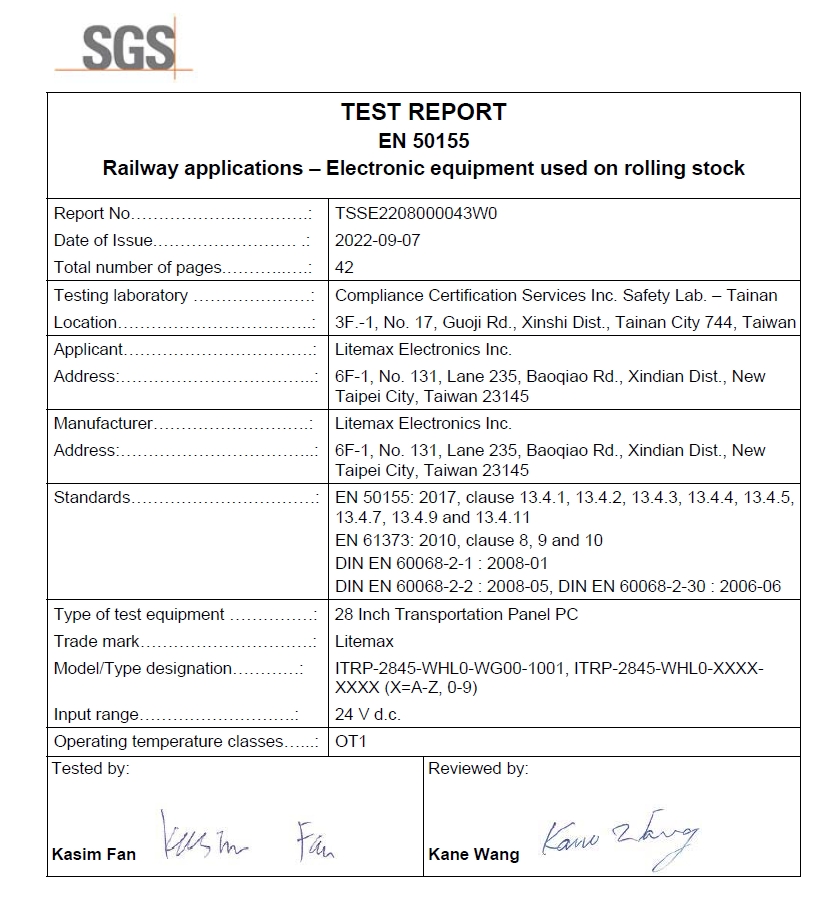

ITRP-2845-APL2 is a fanless Passenger Information System, EN 50155 compliant, serving as a reliable platform to provide passenger information on wide versatility of vehicles, such as trains and trams. It features a 28 and 38 inch stretched LCD panel.

Powered by Intel® Atom®/Pentium®/Celeron® (ApolloLake SoC) Processor, and designed from the ground up to be robustness with IP (Ingress protection) level 65. It supports EN 50155 T1 level, for smoothly implementation in a wide working temperature ranging from -25°C to 55°C, to make sure its best operation in harsh environment and deliver the real-time information to passengers.
Model Name ITRP-2845-APL2
LCD
Display Type 28" Resizing TFT LCD
Resolution 1920x357
Brightness 1000 nits
Color 16.7M
Pixel Pitch (H/V) 0.3637mm x 0.3637mm
Constrast Ratio 6500:1
Viewing Angle (H/V) 178°(H),178°(V)
Size 28"
System
Chipset Intel® Apollo Lake-I SoC integrated
Memory 1 x 204-pin DDR3L 1866MHz SDRAM; max. up to 8GB
Graphic Intel® HD Gen. 9-LP Graphics
Indicators N/A
Controls N/A
Expansion Slot 1 x Mini-PCIe (Half size)
1 x Mini-PCIe (Full size, share with mSATA)
Processor Intel® Atom® x7-E3950 1.6GHz,QC (12W)
Intel® Atom® x5-E3940 1.6GHz,QC (9.5W)
Intel® Atom® x5-E3930 1.3GHz,DC (6.5W)
Intel® Pentium® N4200 1.1GHz,QC (6W)
Intel® Celeron® N3350 1.1GHz, DC, (6W)
I/O 1x HMDI, 2 x USB 2.0, 1 x LAN Connector Type: M12
OS Support Win10, Linux
System I/O
LAN 1 x Gigabit Ethernet (Intel® I211)
Storage Support
mSATA 1 x mSATA
Power
Power Supply 110 Vdc input, M12 connector (24/36/48/72/96 Vdc optional)
Environment
Operating Temperature EN50155 T1 -25°C ~ 55°C
Storage Temperature -40°C ~ 80°C
Relative humidity 0% ~ 90% (non-condensing)
IP level Full IP65
Vibration,Shock EN50155
Mechanical
Weight 6.94 kg
Dimensions 815 mm(W) x 68.6 mm(D) x 178.1 mm(H)
