Home / Product / Industrial Computing / Industrial Panel PCs & Monitors / EN50155 Transportation Panel PCs / ITRP-2155-EHL1-ZG00-2001

Transportation Panel PCs

ITRP-2155-EHL1-ZG00-2001

ITRP-2155-EHL1-ZG00-2001” TFT LCD, LED Backlight 1600nits,1920x1080
  • High Brightness 1000 nits
  • EN50155
  • Sunlight Readable
  • Celeron® J6412 (2.0GHz/2.6GHz,QC,16EU, 10W)
  • Low Power Consumption
  • Wide View Angle
  • 10mm P4 Glass
  • BL MTBF: 100,000 hours
PRINT
INQUIRY COMPARE

Main Features

  • Transportation

  • Low Power Consumption

  • Kiosk

  • Gaming

  • Automation

INTRODUCTION SPECIFICATION DOWNLOAD
The ITRP-2155-EHL1-ZG00-2001 is a 21.5inch industrial grade sunlight readable LCD, with high brightness 1000 nits and high color saturation, it produce sharp images, crisp text and lifelike colors. The Durapixel LED backlight technology ensures high reliability and low power consumption, suitable for outdoor application, kiosk, factory automation, military, transportation and gaming application.
Model Name ITRP-2155-EHL1-ZG00-2001
 Description 21.5” TFT LCD, LED Backlight 1000 nits, 1920x1080
Screen Size 21.5”
 Display Area (mm) 476.06(H) x 267.79(V)
 Brightness 1000 cd/m2
 Resolution  1920x1080
 Aspect Ratio  16 : 9
Contrast Ratio  3000 : 1
 Pixel Pitch (mm)  0.24795(H) x 0. 24795(V)
 Viewing Angle  178°(H),178°(V)
Input Interface HDMIx1、USB3.0x1、LAN(M12)x1、Power(M12)x1
 CPU Celeron® J6412 (2.0GHz/2.6GHz,QC,16EU, 10W)
 OS Win10 Iot、Linux
RAM 4GB DDR4
Storage  128GB M.2 SSD
Light sensor Auto Light Sensor
 Input Power DC 17~31V \34~63V/ 67~143V input
 Glass 10mm P4 Glass
Power Consumption 50W
 IP Level Front IP65
 Dimensions (mm) 556 x 344.5 x 63 mm
Weight (Net) 10.5 KG
 Mounting Wall Mount、VESA 75x75
 Operating Temperature -25 ˚C ~ 55 ˚C
 Storage Temperature  -25˚C ~ 60 ˚C

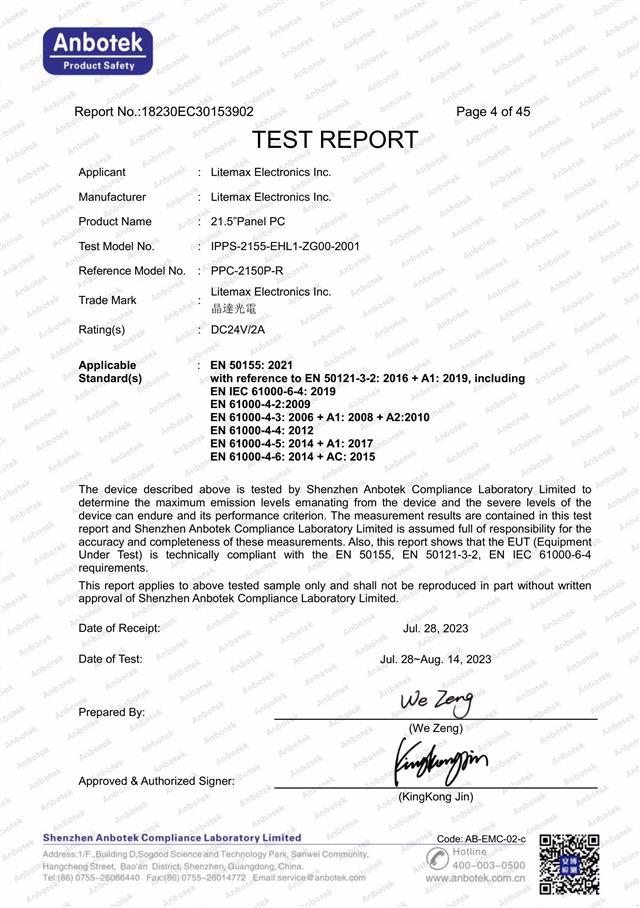

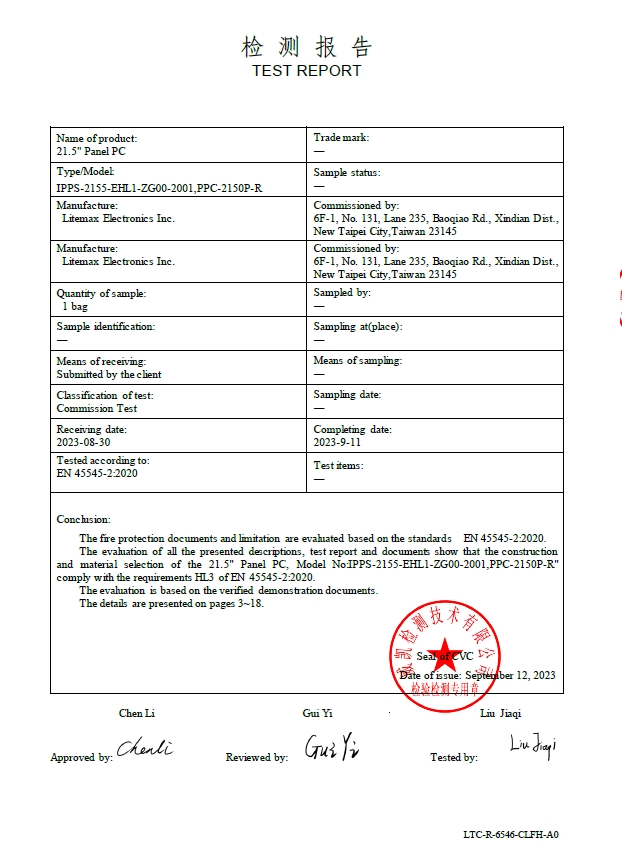

Certification EN50155、EN45545

Download
