Home / Product / Industrial Display / Spanpixel™ - Resizing LCDs / 1232-R

Stretch Digital Display

1232-R

12.3” TFT Panel PC, LED Backlight 500nits, FHD(1920x720)
  • Brightness 500nits
  • Aspect ratio 16:6
  • Quad-core ARM Cortex-A55 CPU and Mali-G52 GPU
  • 2GB RAM, 16GB eMMc flash
  • 2mm Glass
  • BL MTBF: 50,000 hours
PRINT
INQUIRY COMPARE

Main Features

  • Transportation

  • Sunlight Readable

  • Digital Signage

SPECIFICATION DOWNLOAD
Model Name ITRP-1232-RKC3-ZG00-1001
Description 12.3” TFT LCD, 500nits LED Backlight, 1920x720
size 12.3”
Display area (mm) 292.32 (W)×109.62 (H) mm
Brightness 500 cd/m2
Resolution 1920x720
Aspect ratio 16 : 6
Contrast ratio 1000:1
Pixel pitch (mm) 0.15225 x 0.15225
Viewing angle 178°(H),178°(V)
CPU Rockchip RK3566 Quad-core ARM Cortex-A55 CPU
OS Android 11.0
RAM 2GB LPDDR4
Storage 16GB eMMC
I/O RJ45 (M12)x1, Power (M12)x1, USB2.0x1
Input power DC 40~160V input
Power consumption 30W
Dimensions (mm) 338mm x 136mm x 45mm
Weight (Net) 2.5kg
Mounting Wall Mount
Operating temperature -25 ˚C ~ 55 ˚C
Storage temperature  -20°C ~ +60°C

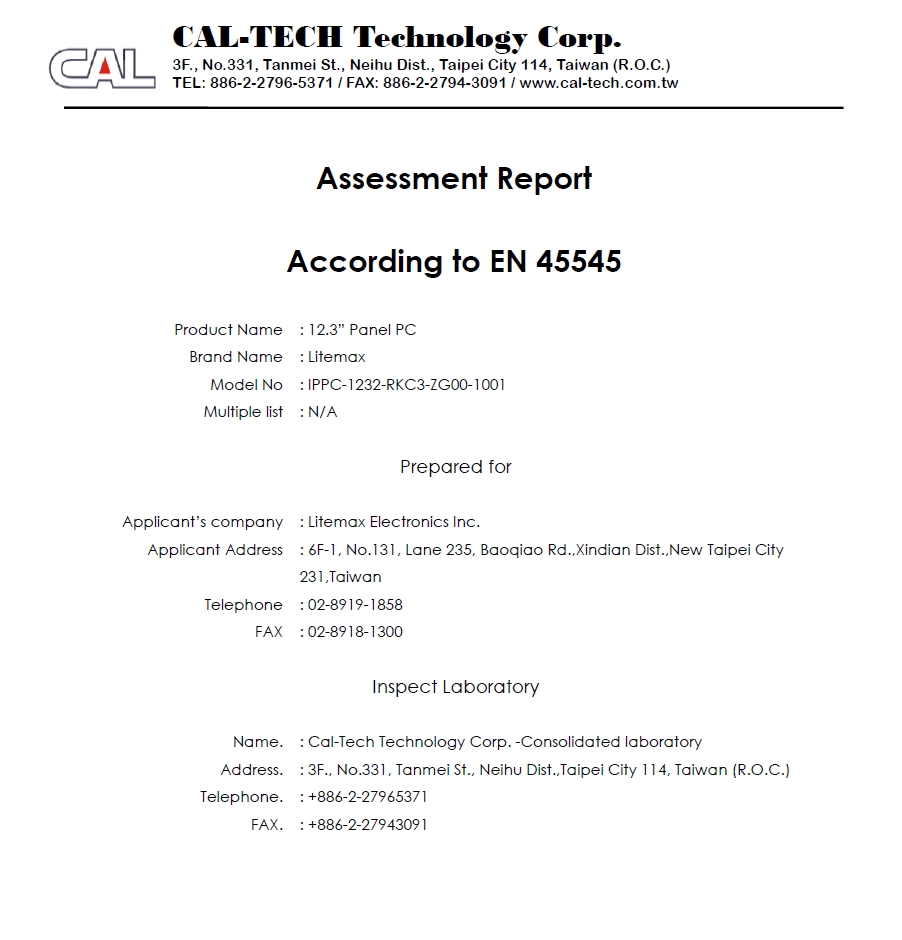

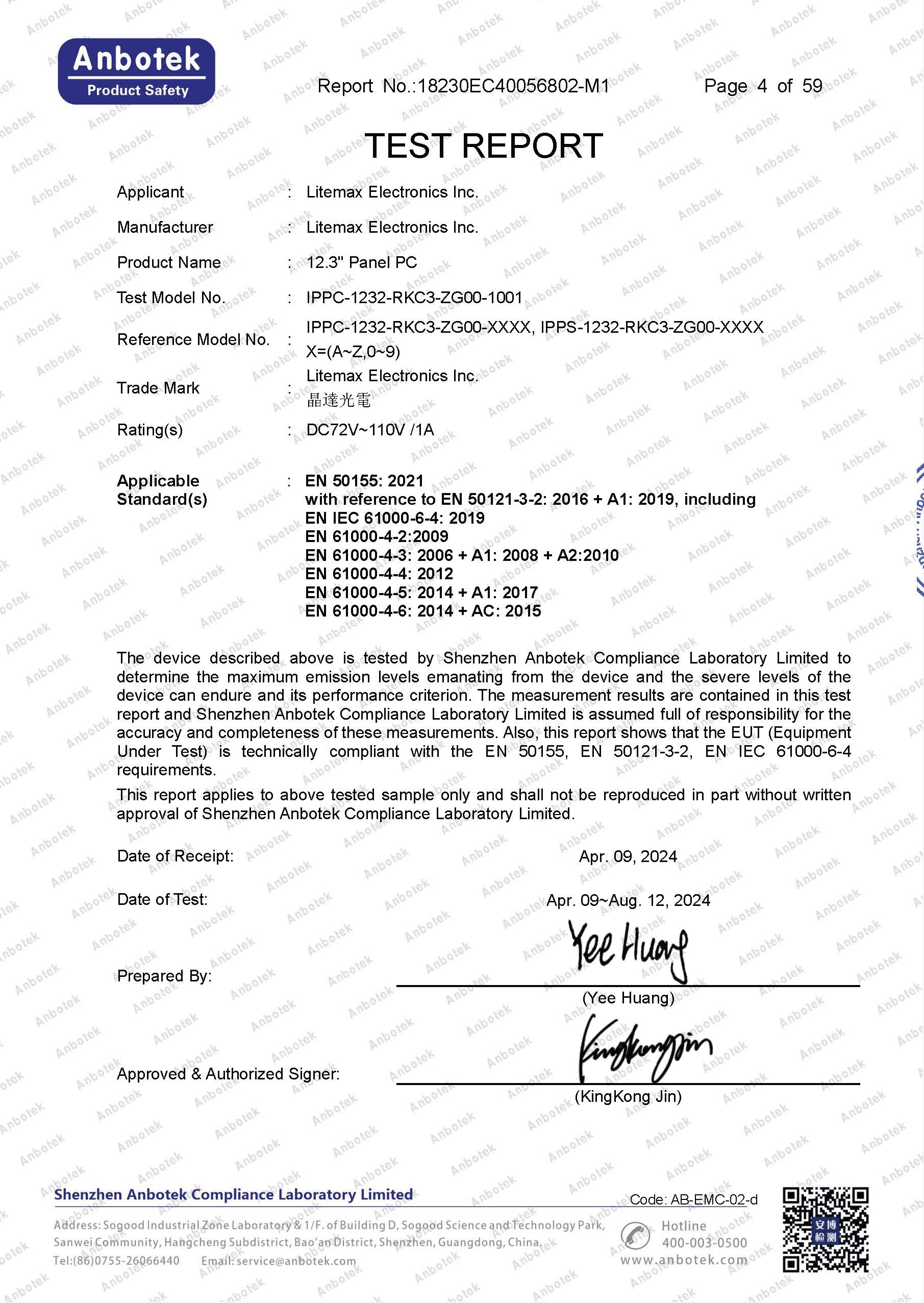

Certification EN50155、EN45545
