IPPS-2118-SKL2/KBL5-WP

IP68 21.5" P-CAP Fanless Panel PC with Intel® 6th/7th Core™ i7/i5/i3/Celeron® processors
  • Intel® 6th/7th Core™ i7/i5/i3/Celeron® processors
  • 21.5" LCD, 1920 x 1080, 1600nit
  • P-CAP 10 points touch screen
  • 2 USB, 2 COM, 2 LAN
  • Advanced Optical Bonding
  • IP68 and fanless design
  • DC 12V input with M12 connector
PRINT
INQUIRY COMPARE

Main Features

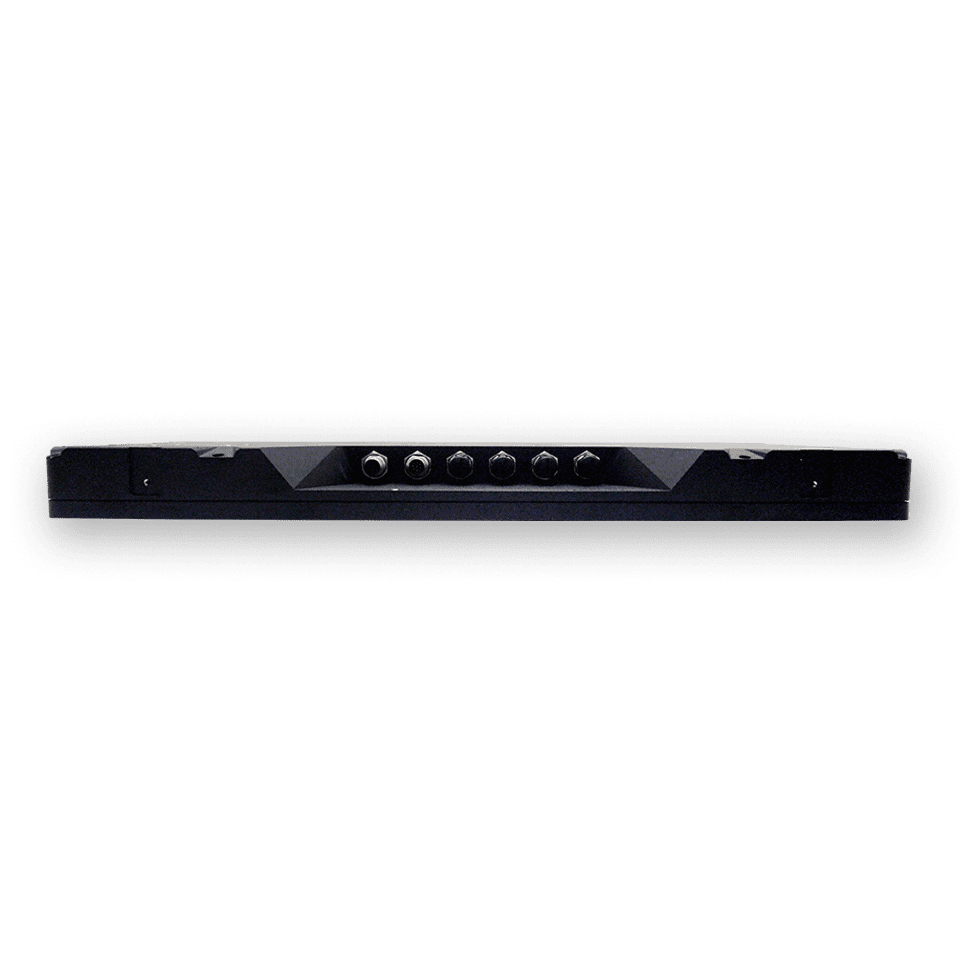

  • M12 Connectors

  • Full IP68

  • Fanless

INTRODUCTION SPECIFICATION DOWNLOAD
IPPS-2118-SKL2/ KBL5-WP is 21.5” rugged panel computers are designed to increase reliability and readability under the impact of all elements, like snow, water, dust, heat, cold, and sun. These PCs are made with industrial-grade components that allow them to operate in a much wide range of temperatures than traditional units and can go from cold to hot environments without condensation build-up. They are completely waterproof and vibration resistant and boast an ingress protection rating of IP65 or higher.

IPPS-2118-SKL2/ KBL5-WP is rugged panel pc with 6th/7th-generation Intel® CoreTM processor deliver a reliable, durable, and versatile platform for use in industrial environments. With two RS-232 serial ports and two Gigabit ethernet ports, it supports a wide variety of serial interfaces. It also features a 1600nits LCD panel offering a sunlight-readable, projected capacitive multi-touch, glove-friendly, providing an excellent user experience for HMI applications in outdoor and hazardous environment.
Model Name IPPS-2118-SKL2/KBL5-WP
LCD
Display Type 21.5" Full HD TFT LCD
Resolution 1920 x 1080 pixel
Brightness 1600 cd/m² (250 cd/m² optional )
Pixel Pitch (H/V) 0.24825mm x 0.24825mm
Constrast Ratio 900:1
Viewing Angle (H/V) 170°/160°/(typ.)
Backlight MTBF (typ.) 100,000 hrs (typ.)
Touch Screen Type P-CAP 10-points
LCD Color 16.7M
System
CPU Intel® Core™ i7-6600U 2.6GHz QC (15W)
Intel® Core™ i5-6300U 2.4GHz DC (15W)
Intel® Core™ i3-6100U 2.3GHz DC (15W)
Intel® Celeron® 3955U 2.0GHz DC (15W)
Intel® 7th Gen Core™ i7/i5/i3 processors (LGA1151)
Chipset Intel® Skylake-U integrated / Intel® H110 PCH
Memory 1 x 260-pin DDR4 2133MHz SDRAM; max. up to 16GB / 2 x 260-pin DDR4 2133MHz SDRAM; max. up to 32GB
Graphic Intel® HD Graphics 520/510 / or Intel® HD Gen. 9 Graphics
Watchdog Timer Yes
Indicators 1 x Power LED,1x HDD LED
Controls N/A
Expansion Slot 1 x Mini-PCIe (Full size with SIM), 1 x Mini-PCIe (Full size, share with mSATA)
System I/O
USB 2 x USB 2.0
COM 2 x COM(2 x RS232)
LAN 2 x Gigabit Ethernet (1 x Intel® I210, 1 x Intel® I219LM )
Display N/A
Audio N/A
Storage Support
HDD 1
mSATA 1
Power
Power Supply DC 12V input, M12 connector (optional 9-36V )
Environment
Operating Temperature 0°C ~ 50°C (optional -30°C )
Storage Temperature -20°C ~ 80°C
Relative humidity 0% ~ 90% (non-condensing)
IP level IP68
Mechanical
Standard Color Silver + Black
Weight 7.7 kg
Dimensions 544 mm(W) x 43.5 mm(D) x 335.5 mm(H)
Mounting VESA
