Home / Product / Industrial Computing / Industrial Panel PCs & Monitors / EN50155 Transportation Panel PCs / IPPS-1566-WHL0-ZP00

Transportation Panel PCs

IPPS-1566-WHL0-ZP00

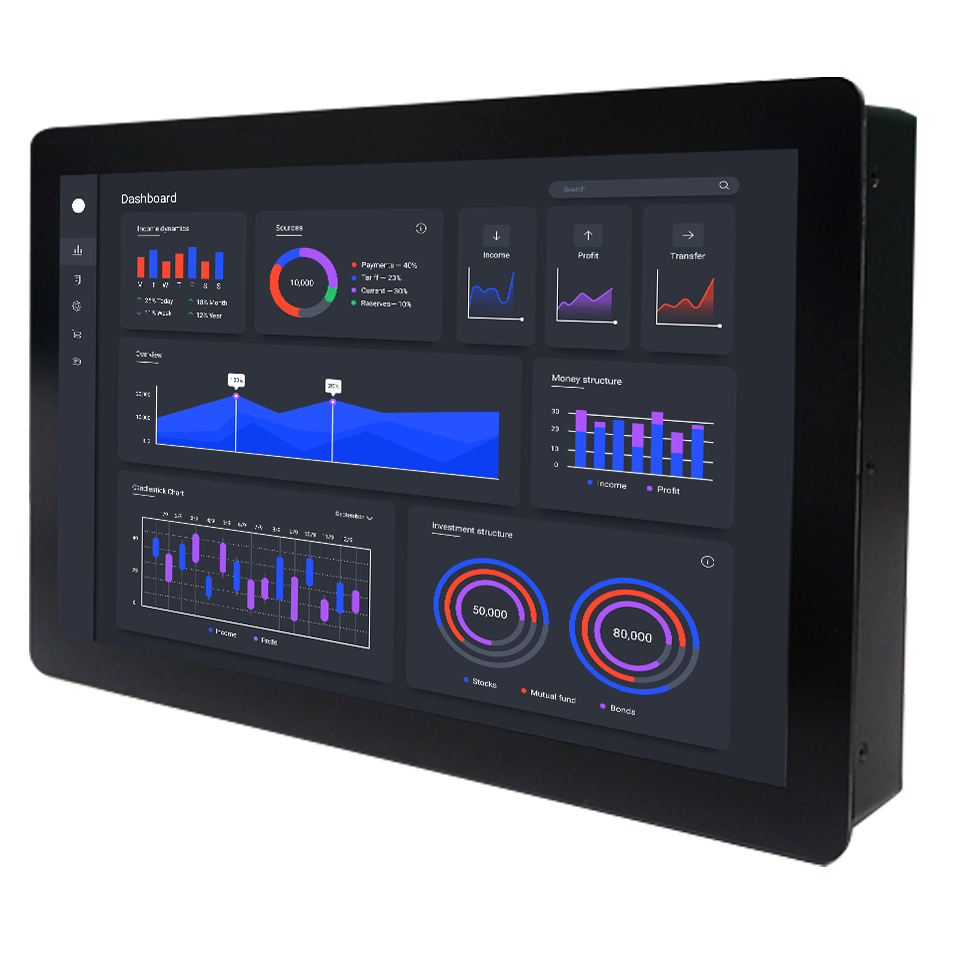

15.6" P-CAP Panel PC with 8th Gen. Intel® Whiskey Lake-U mobile processors
  • Intel® 8th Gen Core™ Processor onboard
  • 15.6" LCD, 1920 x 1080, 1200 nits
  • P-CAP 10 points touch screen
  • 5USB , 1COM ,1 LAN , 1DIO
  • DC 16.8~31.2V input For EN50155
PRINT
INQUIRY COMPARE

Main Features

  • Transportation

  • EN50155

SPECIFICATION DOWNLOAD
Model Name IPPS-1566-WHL0-ZP00-ZP00
LCD
Display Type 15.6" FHD TFT LCD
Resolution 1920 x 1080
Brightness 1200 nits
Color 16.7M
Pixel Pitch (H/V) 0.17925mm x 0.17925mm
Constrast Ratio 1000 : 1
Viewing Angle (H/V) 170°(H),170°(V)
Touch Screen Type P-CAP 10 points touch screen
Size 15.6"
System
Chipset Intel® Whiskey Lake-U Processor integrated
Memory 2 x 260-pin DDR4 2400MHz SDRAM;max. up to 32GB
Graphic Intel® Gen 9.5 UHD 620 Graphics integrated
Indicators N/A
Controls N/A
Expansion Slot 1 x Mini-PCIe (Full size)
1 x M.2 B-key 3042 (WWAN w/ uSIM)
Processor Intel® Celeron® Processor 4305UE Dual Core (2M Cache, 2.0 GHz)
I/O 4 x USB 3.1, 2 x LAN,1 x HDMI
System I/O
LAN 2 x Gigabit Ethernet (1 x Intel® I211、1 x Intel® I219LM)
Storage Support
mSATA 1 x mSATA
Power
Power Supply AC 110 ~ 240V input
Environment
Operating Temperature -10°C ~ 50°C
Storage Temperature -20°C ~ 60°C
Relative humidity 0% ~ 90% (non-condensing)
IP level N/A
Mechanical
Weight 4.3 kg
Dimensions 387.7 mm(W) x 260.2 mm(D) x 78.8 mm(H)
