Home / Product / Industrial Computing / Embedded Box PCs / Entry BOX PC / IBOX-SKL2 C TYPE

Entry BOX PC

IBOX-SKL2 C TYPE

Fanless Box system with Intel® Core™ i3-6100U/Celeron® 3955U (Skylake-U) Processor, HDMI/DP, 3 USB, 2 GbE LAN
  • Intel® Core™ i3-6100U/ Celeron® 3955U (Skylake-U) Processor
  • Dual display: HDMI/DP
  • Two Intel Gigabit Ethernet ports
  • 1 HDMI, 1 DP, 3 USB, 3 COM, 2 LAN ,1AUIDO
  • DC 9 ~ 36V input
  • Watchdog timer
PRINT
INQUIRY COMPARE

Main Features

  • Wide DC-in 9-36V

  • Fanless

SPECIFICATION DOWNLOAD
Model name IBOX-SKL2 C TYPE
System
CPU Intel® Core™ i3-6100U 2.3GHz dual core processor(TDP 15W)
Intel® Celeron® 3955U 2.0GHz dual core processor(TDP 15W)
Chipset Intel® SkyLake-U SoC integrated
BIOS AMI SPI Flash ROM
System memory 1 x 204-pin DDR3L 2133MHz SDRAM; max. up to 16GB
Graphic Intel® HD Gen. 9 graphics
Watchdog timer Yes
I/O
USB 2 x USB 3.0, 1 x USB 2.0
COM 3 x COM (1 x RS-232/422/485, 2 x RS-232)
LAN 2
Display 1 x DP, 1 x HDMI
Audio Mic-in, Line-in, Line-out
PS/2 N/A
Others 2 x SMA hole
Storage Support
HDD 1 x 2.5" HDD
M.2 N/A
mSATA 1 (with Mini-PCIe)
Expansion
Mini-PCIe 2 (1 x Full-size w/ SIM; 1 x Full-size w/ mSATA
M.2 N/A
Power
Power supply Wide range DC 9 ~ 36V input, Phoenix connector
Environmental
Operating Temperature 0°C ~ 50°C (Optional -20°C, -40°C)
Storage Temperature -20°C ~ 80°C
Relative Humidity 0% ~ 90% (non-condensing)
Mechanical
Construction Aluminum extrusion and heavy-duty steel
Standard color Silver
Mounting Wall mount / VESA100 /DIN mount (optional)
Weight 1 kg
Dimensions (W)x(D)x(H)mm 178 mm(W) x 123.2 mm(D) x 49.8 mm(H)

Download

Related Products

Finder

Compare

0

Inquiry

    CLEAR
    INQUIRY

    Compare

    Clear
    COMPARE

    Email Subscribe

    Counrtry*

    Name*

    Company*

    Email*

    SUBMIT

    We use cookies to provide you with better user experience. Cookies settings can be controlled and configured in your web browser at any time.
    By using the site you agree to us using cookies and also read privacy policy. To continue viewing and using the website click on “Continue”.
    Continue
    En
    En 繁中 日本語 Deutsche 简中

    CONTACT

    • Product

      • Wonder how to achieve sunlight readable yet maintain low power consumption?
        That is exactly what LiteMax Ecogreen pixel line is all about.  As long as your
        message is not frequent changed, no matter it is black/white or colored, the e-ink
        type of display can be powered by solar cell or battery source to achieve energy
        conservation.

      • Spanpixel™  -  Resizing LCDs

        To resize a LCD is literally to cut the glass, polarizers, circuits and circuit boards to a new size. Years ago, it was thought impossible to preserve the original performance of a previously manufactured LCD once the glass circuits are cut. However, Litemax has done the impossible, over and over again, becoming the world's leading pioneer and leader in LCD resizing solutions.
        LEARN MORE

      • Squarepixel™-Square LCDs

        Squarepixel series is designed for high brightness with power efficiency LED backlight. It provides LCD panel with specific aspect ratios and sunlight readable for digital signage, public transportation, exhibition hall, department store, and the vending machines.
        LEARN MORE

      • Durapixel™ - Sunlight Readable LCDs

        The spirit of Durapixel indeed lies with its name: durability. Why Durapixel? Commercial-grade LCD displays, due to the competitive pricing structure, are unable to offer more than MTBF of 30,000 hours, which will not be sufficient for any applications that require around-the-clock operations. System designers, integrators and users serious about rugged, industrial displays for demanding environments need to look no further – the unfailingly robust and high-quality Durapixel is the key to each of your success.
        LEARN MORE

      • Ubipixel™  -  Industrial High Brightness LCDs

        UbiPixel, industrial LCDs are used in many professional applications. High bright sunlight readable and low power consumption display technologies offer the highest quality LCDs for specific industrial applications. Our embedded LCD can be manufactured in an open frame, VESA mount, or fully enclosed housing for HMI display, KIOSK, Vending machine, home automation, point-of-sale terminals, digital signage and more. UbiPixel, industrial LCDs are used in many professional applications. High bright sunlight readable and low power consumption display technologies offer the highest quality LCD screen for specific industrial applications. Our embedded LCD can be manufactured in an open frame, VESA mount or fully enclosed housing for HMI display, KIOSK, Vending machine, home automation, point-of-sale terminals, digital signage and more.
        LEARN MORE

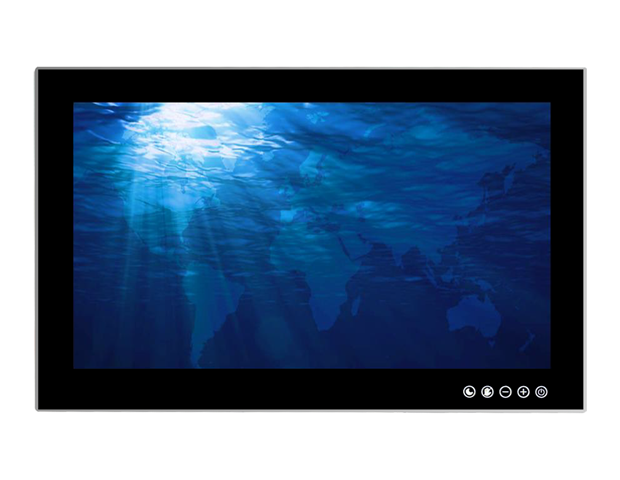

      • Navpixel™  -  Marine Computing
