Home / Product / Industrial Computing / Embedded Box PCs / Entry BOX PC / IBOX-BYT1 B TYPE

Entry BOX PC

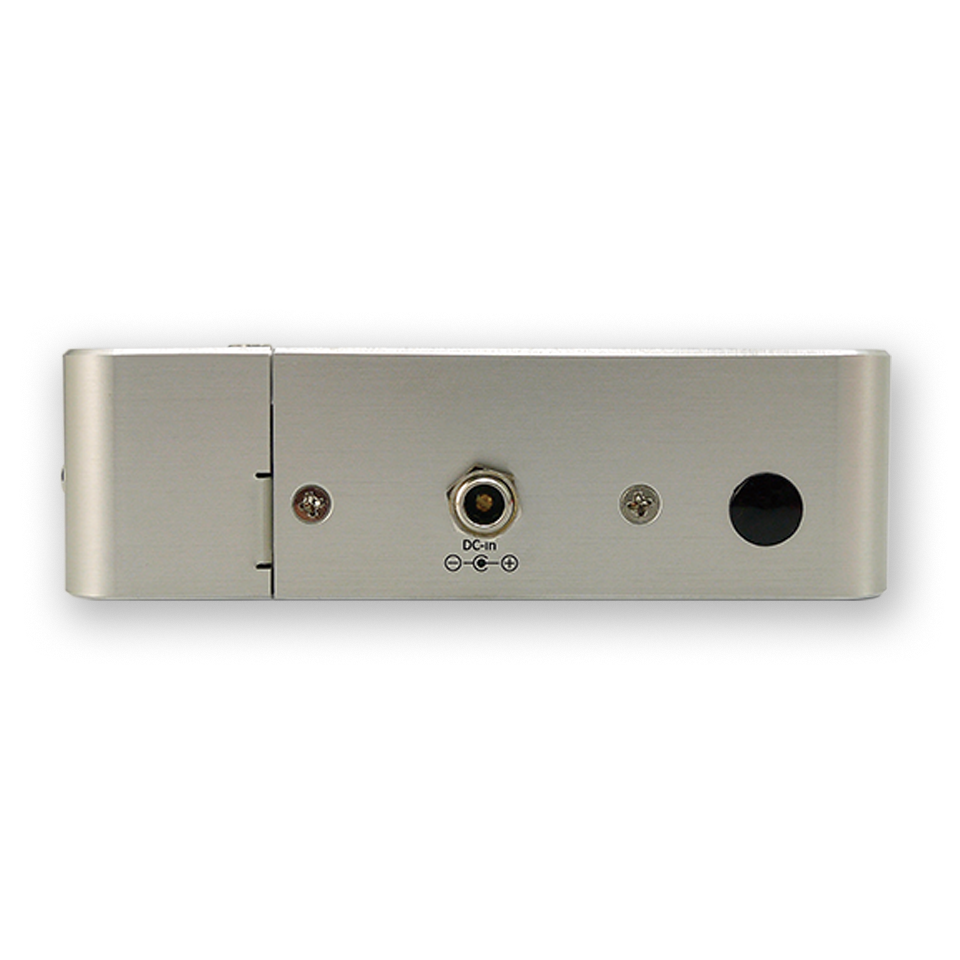

IBOX-BYT1 B TYPE

Fanless Box system with Intel® Atom™/Celeron® (Bay Trail) Processor, VGA/HDMI, 2 USB, 2 GbE LAN
  • Intel® Atom™/Celeron® (Bay Trail SoC) onboard processor
  • Dual display: VGA/HDMI
  • 1 VGA, 1 HDMI, 2 USB, 1 COM, 2 LAN
  • DC 12 ~ 24V input
  • Wide temperature: -20°C ~ 60°C
PRINT
INQUIRY COMPARE

Main Features

  • Fanless

  • Compact

SPECIFICATION DOWNLOAD
Model name IBOX-BYT1 B TYPE
System
CPU Intel® Bay Trail SoC onboard
Intel® Celeron®J1900 2.0GHz quad core SoC(10W)
Intel® Atom™ E3845 1.91GHz quad core SoC(10W)
Intel® Atom™ E3825 1.33GHz dual core SoC (6W)
Chipset Intel® Celeron® J1000/Atom™ E3000 series SoC
BIOS AMI SPI Flash ROM
System memory 1 x 204-pin DDR3L 1067/1333MHz SDRAM; max. up to 8GB
Graphic Intel® HD Gen. 7 Graphics
Watchdog timer Yes
I/O
USB 1 x USB 3.0, 1 x USB 2.0
COM 1 x COM(1 x RS232/422/485, RS485 with auto flow control)
LAN 2
Display 1 x HDMI, 1 x VGA
Audio N/A
PS/2 N/A
Others 2 x SMA hole
Storage Support
HDD N/A
M.2 N/A
mSATA 1 (with Mini-PCIe)
Expansion
Mini-PCIe 2 (1 x Half-size; 1 x Full-size w/ mSATA
M.2 N/A
Power
Power supply Wide range DC 12 ~ 24V input, phoenix connector
Environmental
Operating Temperature 0°C ~ 60°C (Optional -20°C, -40°C)
Storage Temperature -20°C ~ 80°C
Relative Humidity 0% ~ 90% (non-condensing)
Mechanical
Construction Aluminum extrusion and heavy-duty steel
Standard color Silver
Mounting Wall / VESA 75 / DIN(Optional)
Weight 0.8kg
Dimensions (W)x(D)x(H)mm 169 mm(W) x 117.7 mm(D) x 36 mm(H)
