Home / Product / Industrial Computing / Embedded Box PCs / Ultra Slim BOX PC / IBOX-BSW1 A TYPE

Ultra Slim BOX PC

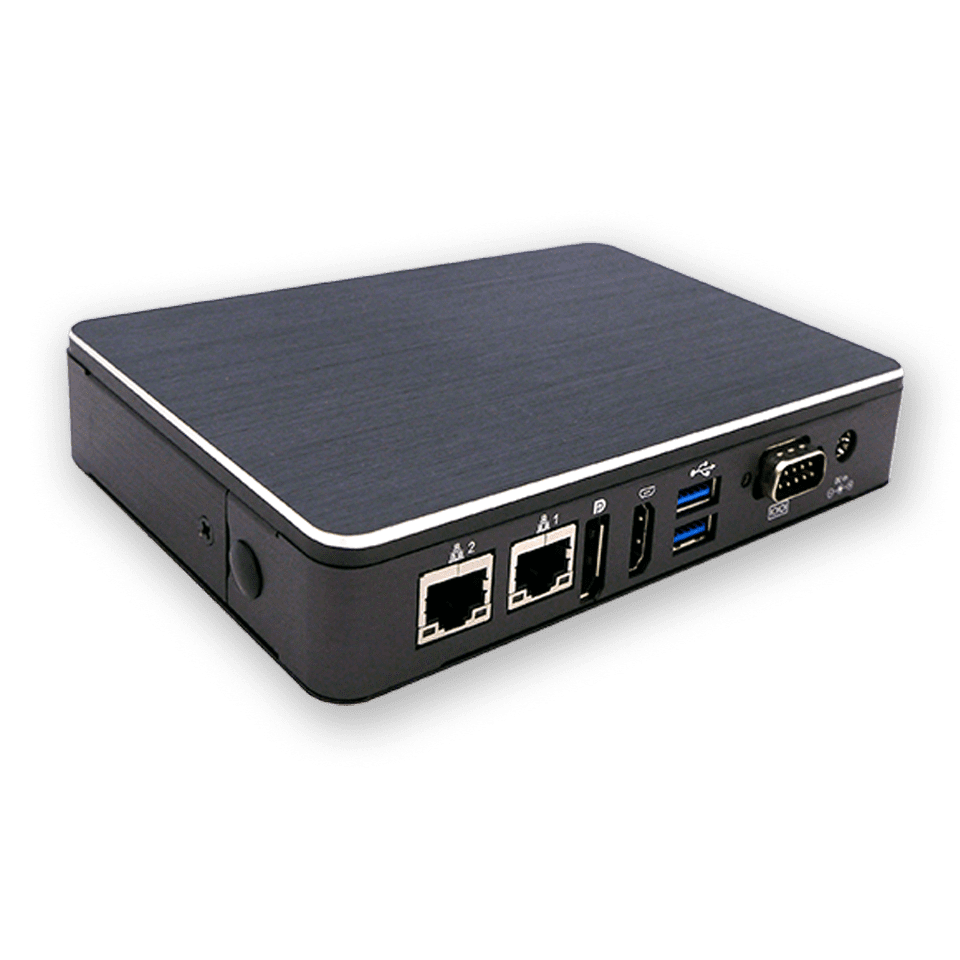

IBOX-BSW1 A TYPE

Fanless Box system with Intel® Pentium®/Celeron® (Braswell) Processor, HDMI/DP, 3 USB, 2 GbE LAN
  • Intel® Pentium®/Celeron® (Braswell SoC) onboard processor
  • Dual display: HDMI/DP
  • 1 HDMI, 1 DP, 3 USB, 1 COM, 2 LAN
  • DC 9 ~ 36V input
PRINT
INQUIRY COMPARE

Main Features

  • Wide DC-in 9-36V

  • Fanless

  • Compact

SPECIFICATION Download
Model name IBOX-BSW1 A TYPE
System
CPU Intel® Braswell SoC onbaord
Intel® Pentium® N3710 1.6GHz quad-core SoC (6W)
Intel® Celeron® N3160 1.6GHz quad-core SoC (6W)
Intel® Celeron® N3060 1.6GHz dual-core SoC (6W)
Intel® Celeron® N3010 1.04GHz dual-core SoC (4W)
Chipset Intel® N3000 series SoC
BIOS AMI SPI Flash ROM
System memory 1 x DDR3L 1600MHz SODIMM, max. up to 8GB
Graphic Intel® HD Gen. 8-LP graphics
Watchdog timer Yes
I/O
USB 2 x USB 3.0, 1 x USB 2.0
COM 1 x COM (RS-232/422/485, RS485 with auto flow control)
LAN 2
Display 1 x HDMI, 1 x DP
Audio N/A
PS/2 N/A
Others 2 x SMA hole
Storage Support
HDD N/A
M.2 N/A
mSATA 1 (with Mini-PCIe)
Expansion
Mini-PCIe 1 (Half-size)
M.2 N/A
Power
Power supply Wide range DC 9 ~ 36V input, AC 100 ~ 240V 65W adapter, DC Jack
Environmental
Operating Temperature 0°C ~ 50°C (Optional -20°C, -40°C)
Storage Temperature -20°C ~ 80°C
Relative Humidity 0% ~ 90%(non-condensing)
Mechanical
Construction Aluminum
Standard color Dary Grey (others by request)
Mounting Wall mount / DIN mount ( Optional )
Weight 0.5kg
Dimensions (W)x(D)x(H)mm 164mm(W) x 106.5mm(D) x 30mm(H)
