Intel® SDM Ready Display

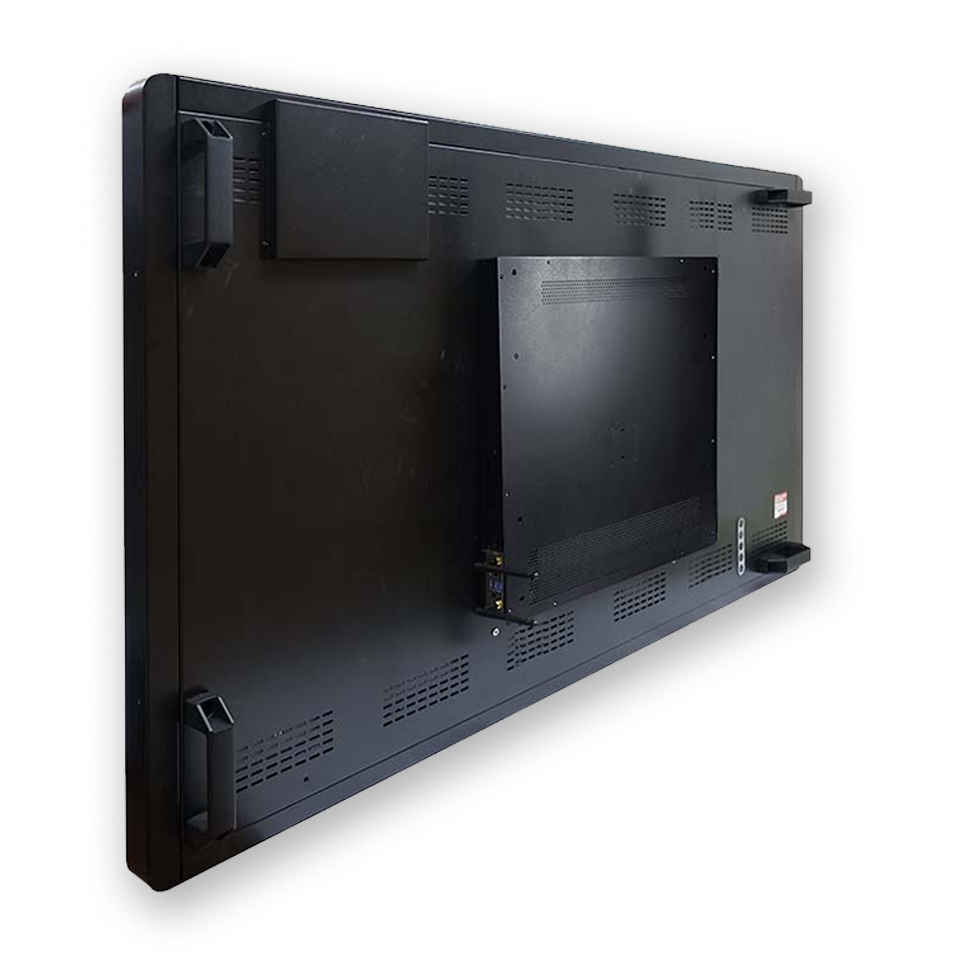

DLS5502-B

55” TFT LCD, LED Backlight 400nits, FHD(1920x1080) SDM Solutions, Support Intel® SDM-S/SDM-L
  • Brightness: 400nits
  • LED Backlight
  • MaxRGB (NTSC 94%)
  • Low Power Consumption
  • P-Cap Touch Screen
  • 1080p HD Camera Available
  • Support Intel® SDM-S/SDM-L
PRINT
INQUIRY COMPARE

Main Features

  • MaxRGB

  • Low Power Consumption

  • AI

SPECIFICATION DOWNLOAD
Model name DLS5502-B
Description 55” TFT LCD, 350 nits, FHD(1920x1080) SDM Solutions
Size 55”
Display Area (mm) 1209.6(H) x 680.4(V)
Brightness 350 cd/m²
Resolution 1920x 1080
Aspect Ratio 16:9
Contrast Ratio 1600 : 1
Pixel Pitch (mm) 0.63(H) x 0.63(V)
Pixel Pre Inch (PPI) 40
Viewing Angle 178°(H),178°(V)
Color Saturation (NTSC) 95%
Display Colors 16.7M
Response Time (Typical) 8ms
Video interface SDM-S/SDM-L interface
SDM Slot SDM-S/SDM-L
Input Power AC100~240V
Power Consumption 108W (Panel Model Only)
Dimensions (mm) 1233x709.4x71.6
Bezel Size(U/B/L/R) 10.2/16.8/10.7/10.7 mm
Weight (Net) 28 kg
Mounting VESA 400x 400
OSD key 5 Keys (Power Switch, Menu, +, Exit -)
OSD control Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Operating Temperature 0 ˚C ~ 50 ˚C
Storage Temperature -20 ˚C ~ 60 ˚C
