Home / Product / AIoT Solution / Intel® Smart Display Module / Intel® SDM Ready Display / DLD3205-INU

Intel® SDM Ready Display

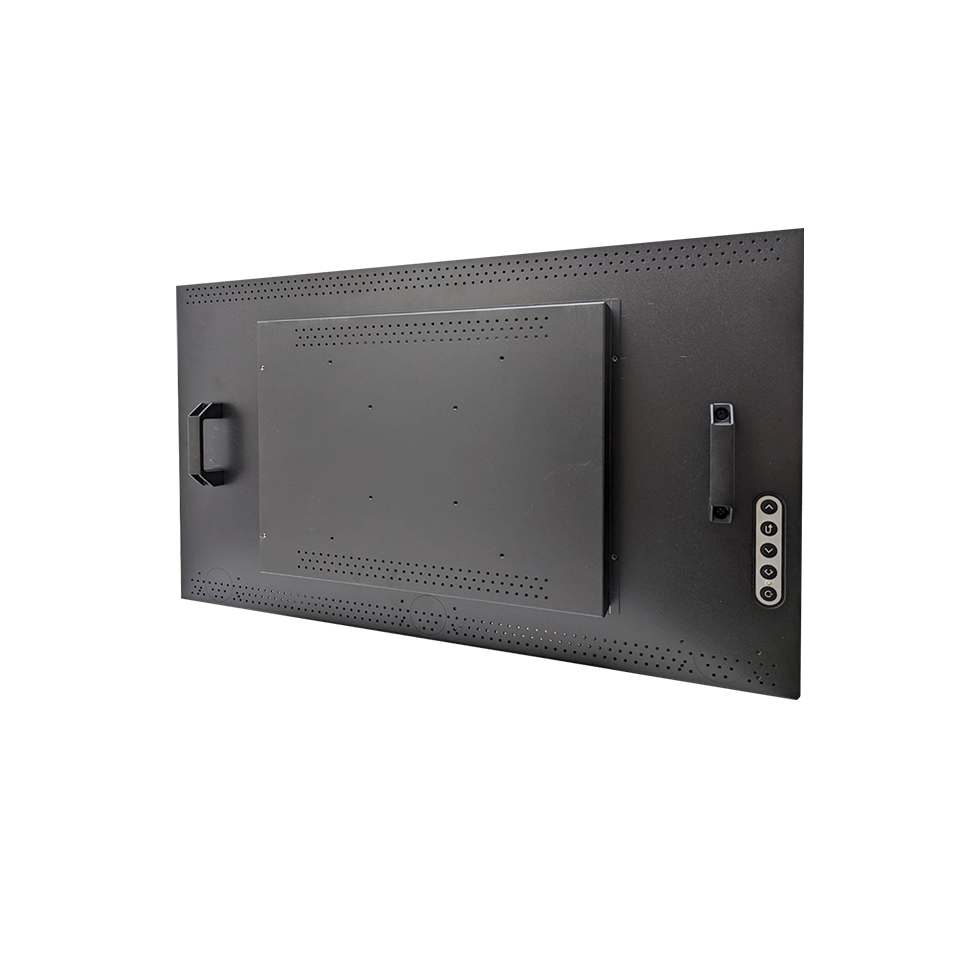

DLD3205-INU

32” TFT LCD, 1000nits LED Backlight, 3840x2160
  • High Brightness 1000 nits
  • Sunlight Readable
  • LED Backlight
  • Low Power Consumption
  • Slim Bezel
  • BL MTBF: 100,000 hours
PRINT
INQUIRY COMPARE

Main Features

  • Sunlight Readable

  • MTBF 100K

  • Low Power Consumption

SPECIFICATION DOWNLOAD
Model Name DLD3205-INU
Description 32” TFT LCD, 1000nits LED Backlight, 3840x2160
Screen Size 32"
Display area (mm) 698.4(H) x 392.85(V)
Brightness 1000 cd/m2
Resolution 3840x2160
Aspect ratio 16 : 9
Contrast ratio 4200 : 1
Pixel pitch (mm) 0.181(H) x 0.181(V)
Pixel per inch (PPI) 137
Viewing angle 178°(H),178°(V)
Color saturation (NTSC) 84%
Display colors 1.07G
Response time (Typical) 9.5ms
Panel Interface V-by-One
Input Interface DVI-D, HDMI, DP
Input Power DC24V
Power Consumption 101W with AD Board
OSD Key 5 Keys (Power Switch, Menu, +, Exit, -)
OSD Control Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Dimensions (mm) 735.4 x 429.75 x 58.3
Bezel Size(U/B/L/R) 18.45/18.45/18.5/18.5 mm
Weight (Net) 10.6 kg
Mounting 100x100, 200x200
Operating Temperature 0 ˚C ~50 ˚C
Storage Temperature -20 ˚C ~ 60 ˚C
