3.5" Single Board Computers

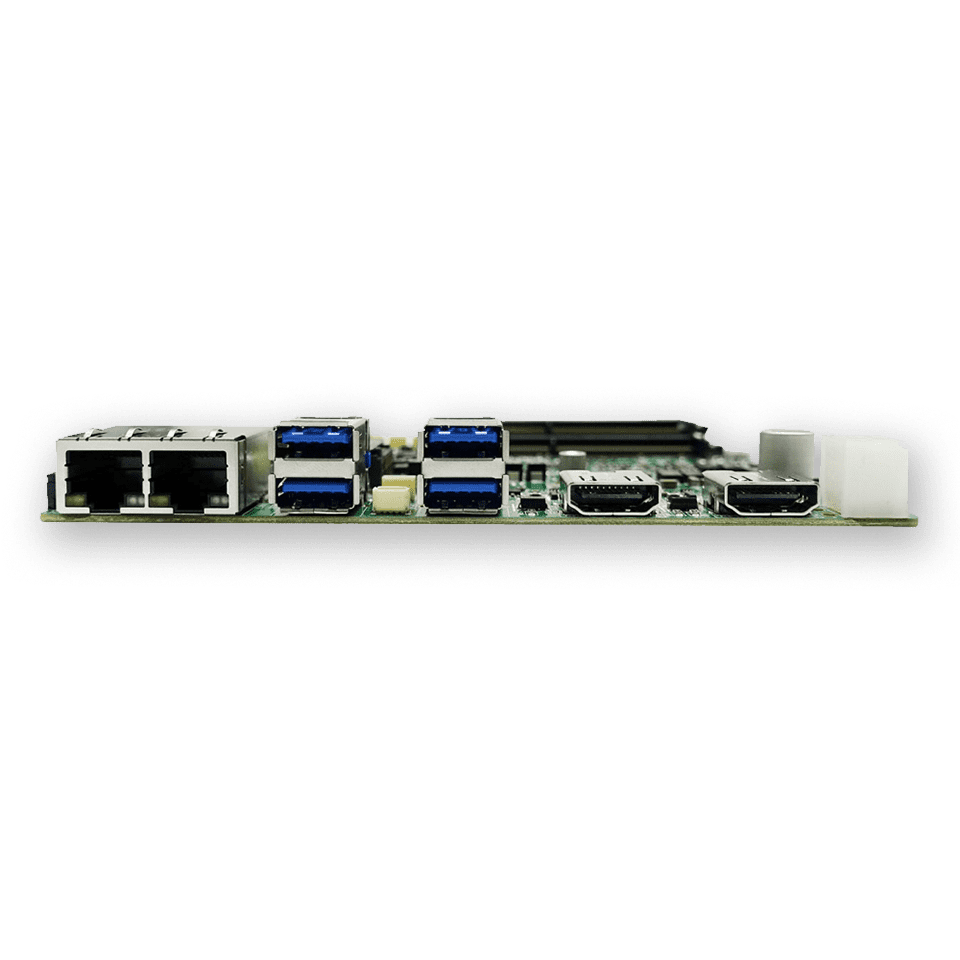

AECX-WHL0
3.5" SBC with Intel® 8th Gen Core™ i7/i5/i3/Celeron® Processor, DP(HDMI)/ LVDS(eDP), SATA III, 4 COM, 6 USB, Dual Intel® GbE LAN.
- Intel® 8th Gen Core™ i7/i5/i3/Celeron® processor on board
- Two 260-pin SO-DIMM up to 32GB DDR4 2400MHz SDRAM
- Multi-Display : 2 DP (HDMI) / LVDS (eDP)
- Two Intel® Gigabit Ethernet port
- 1 M.2 M-key 2280(NVMe), 1 M.2 B-key 3042
- (WWAN w/ nSIM), 1 Mini PCIe (full-size),
- 1 SATA III (w/ SATADOM), 4COM, 4 USB 3.1 and 2 USB 2.0 ports
- Supports 4K/2K Resolution Display
- DC-IN 12V or 19V ~ 24V, EuP/ErP 2013 Ready
- Supports Intel vPro, AMT technologies
Main Features
-
Multi Display
-
M.2
AECX-WHL0, 3.5-inch embedded board, based on Intel® 8th generation Core™ processors. The AECX-WHL0 is built to provide performance beyond its size, powered by 8th Generation Intel® Core™ i3/i5/i7 and Celeron® processors (codename Whiskey Lake) with greater processor performance than the previous generation.
Designed for full-sized functionality, the AECX-WHL0 provides a rich complement of I/O features, including six USB ports, two Gigabit Ethernet ports, and up to four COM ports. The AECX-WHL0 also offers flexibility with display ports, featuring two DP or HDMI and LVDS. Users can also make use of the expandability of the AECX-WHL0 with a full-sized Mini-PCIe slot, and multiple M.2 slots (one 2280 M-Key and one 3042 B-Key).
Designed for full-sized functionality, the AECX-WHL0 provides a rich complement of I/O features, including six USB ports, two Gigabit Ethernet ports, and up to four COM ports. The AECX-WHL0 also offers flexibility with display ports, featuring two DP or HDMI and LVDS. Users can also make use of the expandability of the AECX-WHL0 with a full-sized Mini-PCIe slot, and multiple M.2 slots (one 2280 M-Key and one 3042 B-Key).
| Model name | AECX-WHL0 |
| Form Factor | 3.5” Embedded |
| Dimensions (L)x(W)mm | 146mm x 102mm (5.75” x 4.01”) |
| Processor |
Intel® 8th Gen Core™ i7/i5/i3/Celeron® processors Core™ i7-8665UE 1.7GHz QC (25W) Core™ i5-8365UE 1.6GHz QC (25W) Core™ i3-8145UE 2.2GHz DC (25W) Celeron® 4305UE 2.0GHz DC (15W) |
| Chipset | Intel® Whiskey Lake-U Processor integrated |
| BIOS | AMI® UEFI Flash ROM |
| LAN Controller | Intel® I211 GbE |
| Audio Codec | Realtek ALC888S |
| Watchdog Timer | Yes |
| Memory | |
| Technology | DDR4 SDRAM up to 2400 MHz |
| Max. Capacity | up to32GB |
| Socket | 2 x 260-pin SO-DIMM |
| Display | |
| Graphic | Intel® Gen. 9.5 UHD 620 graphics |
| Display Interface | 2 x DP v1.2 (HDMI v1.4b optional), 1 x LVDS (Dual channel 18/24-bit)/eDP v1.4 (optional) |
| I/O | |
| Expansion Slot |
1 x Mini-PCIe (Full-size) 1 x M.2 M-Key 2280 (SATA, NVMe) 1 x M.2 B-Key 3042 (WWAN, w/ uSIM) |
| LAN | 2 x 10/100/1000 Mbps |
| Serial ATA | 1 x SATAIII support SATADOM |
| Audio | Line-in, Line-out, Mic-in |
| USB | 4 x USB 3.1, 2 x USB 2.0 |
| COM | 3 x RS-232, 1 x RS-232/422/485 |
| Display | 2 x DP (HDMI optional), 1 x LVDS(eDP optional) |
| Digital I/O | 1 x 8-bit programmable GPIO |
| SMB | 1 x SMBus |
| PS/2 | N/A |
| Power Requirement | |
| Power connector | 1 x ATX (2x2-pin) or WF 1x2-pin or DC-Jack 2.5mm screw type (optional) |
| Power Type | DC-in 12V or 19~24V (by jumper selection) |
| Power Mode | AT/ATX (by jumper selection) |
| Environment | |
| Storage Temperature | -40°C ~ 80°C (-40°F ~ 176°F) |
| Relative Humidity | 0% ~ 95% (non-condensing) |
| Operating Temperature |
0°C ~ 60°C (32°F ~ 140°F) standard -20°C ~ 70°C ( -4°F ~ 158°F) optional -40°C ~ 70°C (-40°F ~ 158°F) optional |
