Home / Product / Industrial Computing / Boards & Modules / 3.5" Single Board Computers / AECX-SKL2

3.5" Single Board Computers

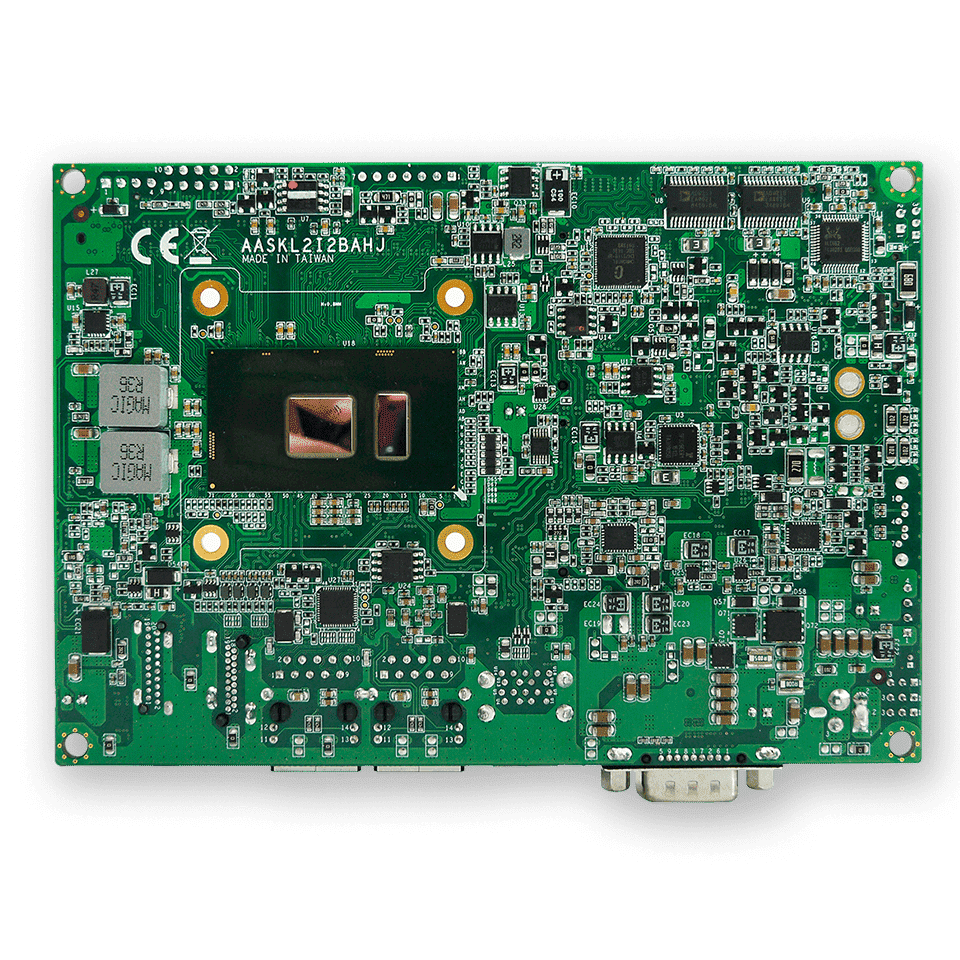

AECX-SKL2

3.5" SBC with Intel® 6th Gen. Core™ i7/i5/i3/ Celeron® Processors, DP/ HDMI/LVDS, SATA III, 3 COM, 6 USB, Dual Intel® GbE LAN.
  • Intel® 6th Gen Core™ i7/i5/i3 / Celeron® processor (Skylake-U)
  • One 260-pin SO-DIMM up to 16GB DDR4 2133MHz SDRAM
  • Multi-Display: HDMI/DP/LVDS(eDP)
  • Two Intel® Gigabit Ethernet ports
  • 2 Mini-PCIe (1 w/ mSATA; 1 w/ Micro SIM) expansion slots
  • 1 SATA III, 3 COM, 2 USB 3.0 and 4 USB 2.0
  • Supports 4K/2K Resolution Display
  • DC-in 9V ~ 36V
  • EuP/ErP 2013 Ready
  • Support Intel® AMT v11.0 (w/ Core™ i7/i5 processors)
PRINT
INQUIRY COMPARE
BUY ONLINE

Main Features

  • Wide DC-in 9-36V

  • Multi Display

SPECIFICATION DOWNLOAD
Model name AECX-SKL2
Form Factor 3.5" Embedded
Dimensions (L)x(W)mm 146mm x 102mm (5.75" x 4.01")
Processor Intel® 6th Gen Core™ i7/i5/i3/Celeron® processors
Core™ i7-6600U 2.6GHz DC (15W)
Core™ i5-6300U 2.4GHz DC (15W)
Core™ i3-6100U 2.3GHz DC (15W)
Celeron® 3955U 2.0GHz DC (15W)
Chipset Intel® Skylake-U Processor integrated
BIOS AMI UEFI Flash ROM
LAN Controller Intel® I219LM GbE & I219 GbE PHY
Audio Codec Realtek ALC662 HD
Watchdog Timer Yes
Memory
Technology DDR4 2133MHz SDRAM
Max. Capacity Up to 16GB
Socket 1 x 260-pin SO-DIMM
Display
Graphic Intel® HD Gen. 9 graphics
Display Interface HDMI, DP, LVDS (Dual-channel 18/24-bit)
I/O
Expansion Slot 2 x Mini-PCIe Full-size (1 x w/ Micro SIM, 1 x w/ mSATA)
LAN 2 x 10/100/1000 Mbps
Serial ATA 1 x SATA III
Audio Line-in, Line-out, Mic-in
USB 2 x USB 3.0, 4 x USB 2.0
COM 2 x RS-232, 1 x RS-232/422/485
Display 1 x HDMI, 1 x DP, 1 x LVDS
Digital I/O 4-in/4-out
SMB 1 x SMBus
PS/2 N/A
Power Requirement
Power connector ATX 2x2-pin or DC-Wafer x 2-pin (optional) or DC-Jack screw type (optional)
Power Type DC-in 9-36V
Power Mode AT/ATX (by jumper selection)
Environment
Storage Temperature -20°C ~ 80°C (-4°F ~ 176°F)
Relative Humidity 0%~ 95% (non-condensing)
Operating Temperature 0°C ~ 60°C (32°F ~ 140°F) standard
-20°C ~ 70°C ( -4°F ~ 158°F) optional
-40°C ~ 70°C (-40°F ~ 158°F) optional
