3.5" Single Board Computers

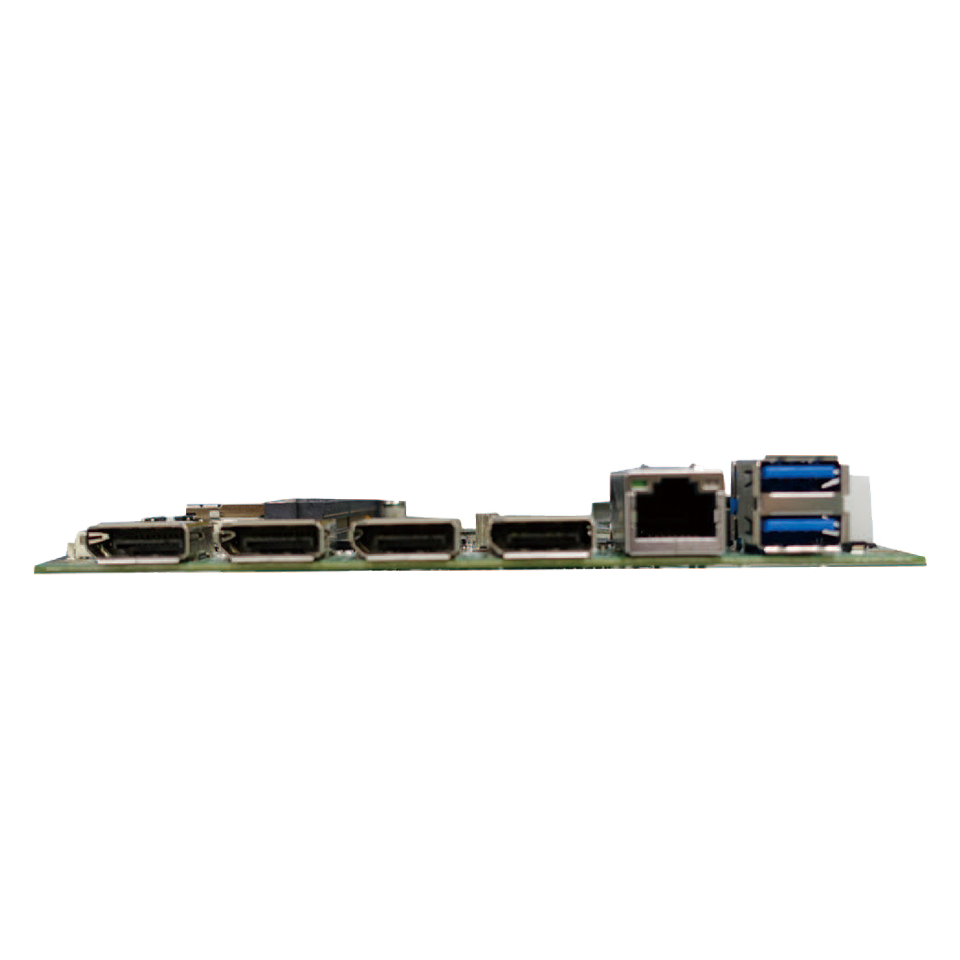

AECX-R2K1
AMD® Ryzen™ Embedded R2000 Series APU based 3.5" Embedded Board with 4 DP (HDMI)/LVDS, SATA III, COM, 5 USB, Intel® GbE LAN.
- AMD® Ryzen™ Embedded R2000 series APU onboard
- High Performance “Zen” Core CPU + “VEGA” Graphics GPU
- Two 260-pin SO-DIMMs up to 32GB DDR4 3200MT/s SDRAM
- Multi-Display : 4 DP (HDMI) / LVDS (optional)
- One Intel® Gigabit Ethernet port
- 1 Mini PCIe (full-size, w/ Nano-SIM), 1 M.2 M-key 2280 (SSD) expansion slots
- 1 SATA III, 2 USB 3.1 and 3 USB 2.0 ports
- Supports 4K/2K Resolution Display
- DC-IN 12V or 19V ~ 24V, EuP/ErP 2013 Ready
Main Features
-
Quad Display
-
M.2
-
4K Stream
| Model Name | AECX-R2K1 | ||
| Form Factor | 3.5" Embedded | ||
| Dimensions (L)x(W)mm： | 146mm x 102mm (5.75" x 4.01") | ||
| Processor： | AMD® Ryzen™ Embedded R2000 series APU onboard R2544 (3.35GHz, QC, 8CU, 35-54W) R2514 (2.1GHz, QC, 8CU, 12-35W) R2314 (2.1GHz, QC, 6CU, 12-35W) R2312 (2.7GHz, DC, 3CU, 12-25W) |
||
| Chipset | AMD® RyzenTM Embedded R2000 APU integrated | ||
| BIOS | AMI UEFI Flash ROM | ||
| LAN Controller | Intel ®I211 GbE | ||
| Audio Codec | Realtek ALC888S | ||
| Watchdog Timer | Yes | ||
| Memory-Technology | DDR4 SDRAM support ECC, up to 3200 MT/s | ||
| Memory-Max. Capacity | Up to 32GB | ||
| Memory-Socket | 2 x 260-pin SO-DIMM | ||
| Display-Graphic | AMD® VEGA graphics | ||
| Display-Display Interface | 4 x DP v1.4 (HDMI v1.4 co-layout, 1 w/ co-layout LVDS)<br />1 x LVDS (Dual channel 18/24-bit) (co-layout DP1 optional) | ||
| I/O-Expansion Slot | 1 x Mini-PCIe (Full-size w/ Nano-SIM)<br />1 x M.2 M-key 2280 (SSD) | ||
| I/O-LAN | 1 x 10/100/1000 Mbps | ||
| I/O-Serial ATA | 1 x SATA III | ||
| I/O-Audio | Line-in, Line-out, Mic-in | ||
| I/O-USB | 2 x USB 3.1, 3 x USB 2.0 | ||
| I/O-COM | 1 x RS-232/422/485, 1 x UART (combo GPIO) | ||
| I/O-Display | 4 x DP (HDMI co-layout, optional), 1 x LVDS (co-layout DP1, optional) | ||
| I/O-Digital I/O | 1 x 8-bit porgrammable GPIO (combo UART) | ||
| I/O-SMB | 1 x SMBus | ||
| I/O-PS/2 | N/A | ||
| Power Requirement-Power connector | ATX 2x2-pin or ATX 2x2-pin R/A (optional) | ||
| Power Requirement-Power Type | DC-in 12V or 19~24V | ||
| Power Requirement-Power Mode | AT/ATX (by jumper selection) | ||
| Environment-Storage Temperature | -40°C ~ 80°C (-40°F ~ 176°F) | ||
| Environment-Relative Humidity | 0% ~ 95% (non-condensing) | ||
| Environment-Operating Temperature | 0°C ~ 60°C (32°F ~ 140°F) standard<br />-20°C ~ 70°C ( -4°F ~ 158°F) optional<br />-40°C ~ 70°C (-40°F ~ 158°F) optional | ||
