3.5" Single Board Computers

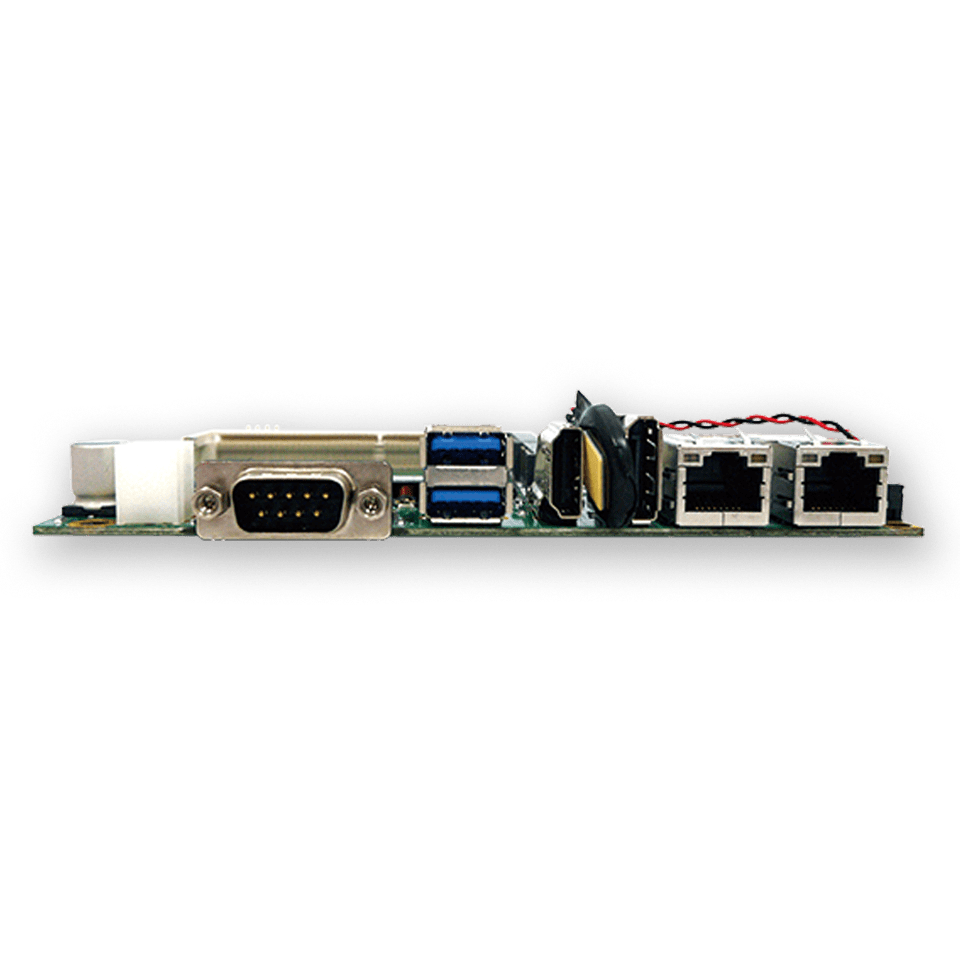

AECX-BSW1

3.5" SBC with Intel® Pentium®/Celeron® N3000 processor, HDMI/DP/LVDS, 3 COM, 6 USB, Dual GbE LAN.
  • Intel® Pentium®/Celeron® N3000 processor (Braswell)
  • One 204-pin SO-DIMM up to 8GB DDR3L 1600MHz SDRAM
  • Multi-Display: HDMI/DP/LVDS
  • Two Intel® Gigabit Ethernet ports
  • 2 Mini-PCIe (1 w/ mSATA) expansion slots
  • 1 SATA III, 3 COM, 2 USB 3.0 and 4 USB 2.0
  • Supports 4K/2K Resolution Display
  • DC-in 9V ~ 36V
  • EuP/ErP 2013 Ready
PRINT
INQUIRY COMPARE

Main Features

  • Wide DC-in 9-36V

  • Fanless

SPECIFICATION DOWNLOAD
Model name AECX-BSW1 (WECX-BSW1)
Form Factor 3.5" Embedded
Dimensions (L)x(W)mm 146mm x 102mm (5.75" x 4.01")
Processor Intel® Celeron® N3160 QC 1.6GHz (6W)
Intel® Celeron® N3060 DC 1.6GHz (6W)
Intel® Celeron® N3010 DC 1.04GHz (4W)
Chipset Intel® Braswell SoC integrated
BIOS AMI UEFI Flash ROM
LAN Controller Intel® I210 GbE
Intel® I219 GbE PHY
Audio Codec Realtek ALC662 HD
Watchdog Timer Yes
Memory
Technology DDR3L 1600MHz SDRAM
Max. Capacity Up to 8GB
Socket 1 x 204-pin SO-DIMM
Display
Graphic Intel® HD Gen. 8 Graphics
Display Interface HDMI, DP, LVDS (Dual-channel 18/24-bit)
I/O
Expansion Slot 2 x Mini-PCIe (1 x Full-size w/ mSATA, 1 x Half-size)
LAN 2 x 10/100/1000 Mbps
Serial ATA 1 x SATA III
Audio Line-in, Line-out, Mic-in
USB 2 x USB 3.0, 4 x USB 2.0
COM 2 x RS-232, 1 x RS-232/422/485
Display 1 x HDMI, 1 x DP, 1 x LVDS
Digital I/O 4-in/4-out
SMB 1 x SMBus
PS/2 1
Power Requirement
Power connector ATX 2x2-pin or DC-Jack (optional)
Power Type DC-in 9~36V
Power Mode AT/ATX (by jumper selection)
Environment
Storage Temperature -20°C ~ 80°C (-4°F ~ 176°F)
Relative Humidity 0%~ 95% (non-condensing)
Operating Temperature 0°C ~ 60°C (32°F ~ 140°F) standard
-20°C ~ 70°C ( -4°F ~ 158°F) optional
-40°C ~ 70°C (-40°F ~ 158°F) optional
