Home / Product / Industrial Display / Durapixel™ - Sunlight Readable LCDs / 8500-I

Digital Signage Display

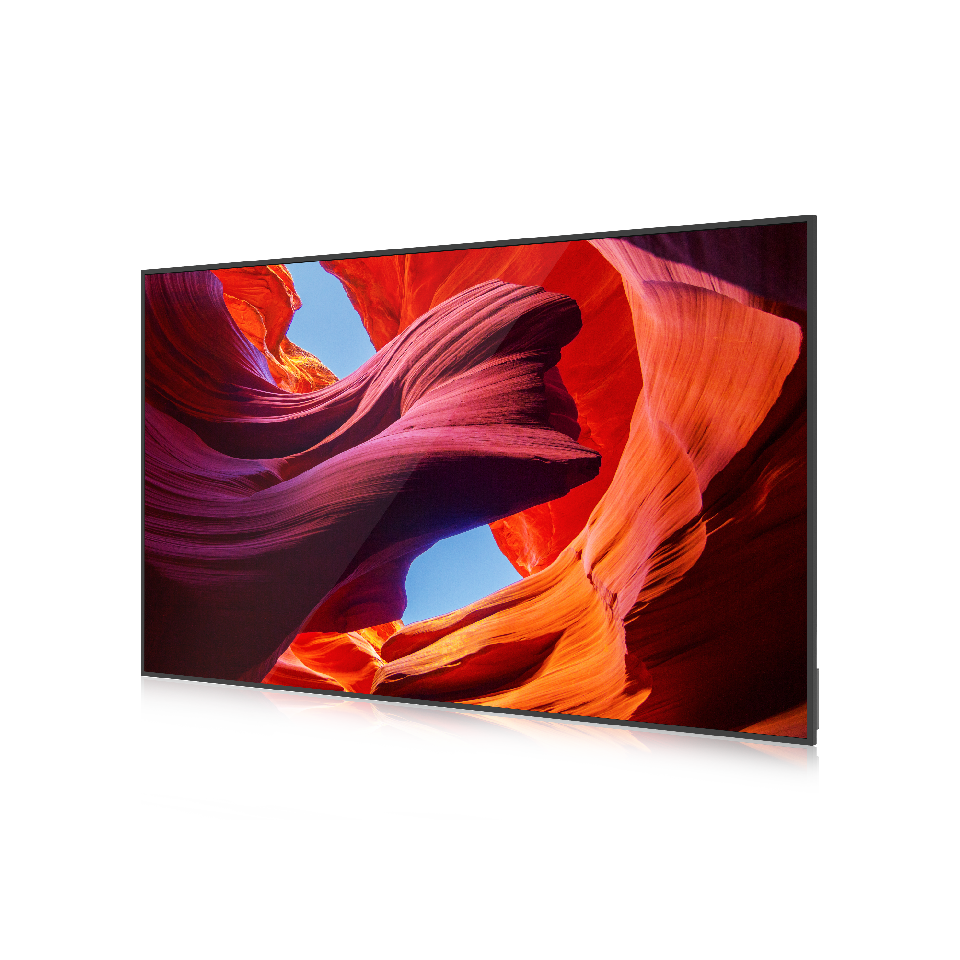

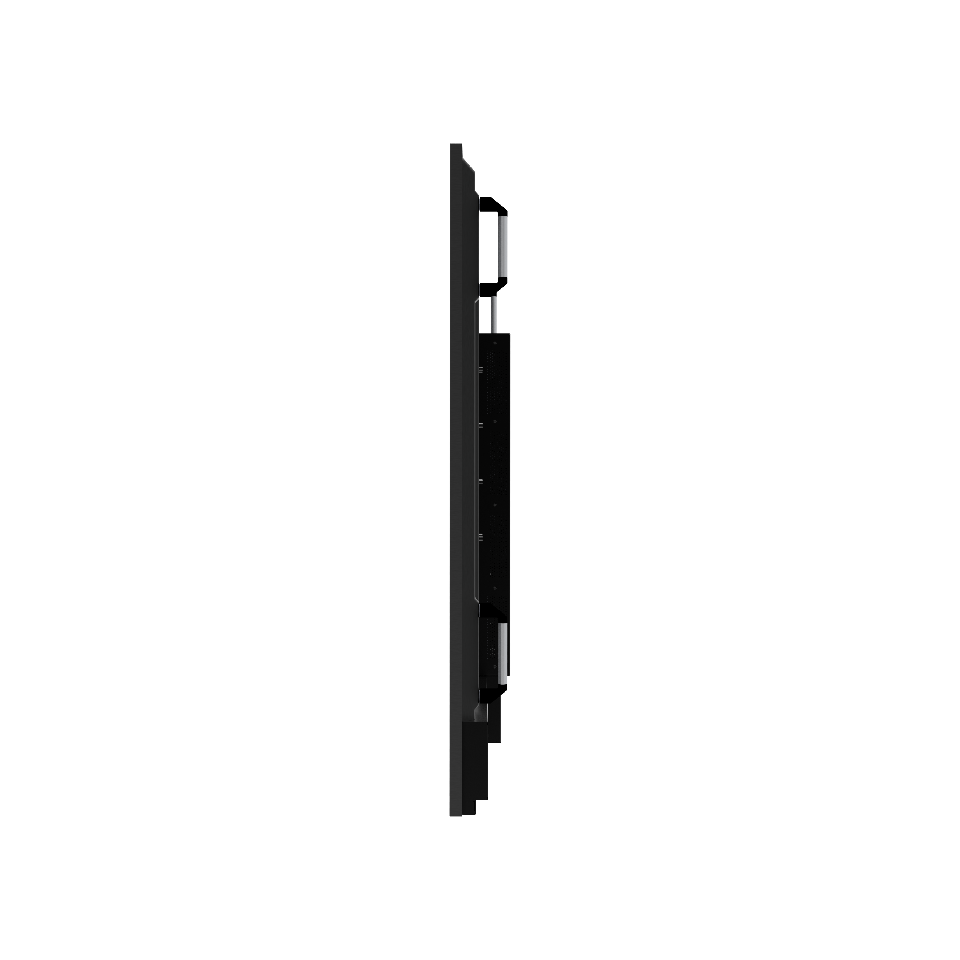

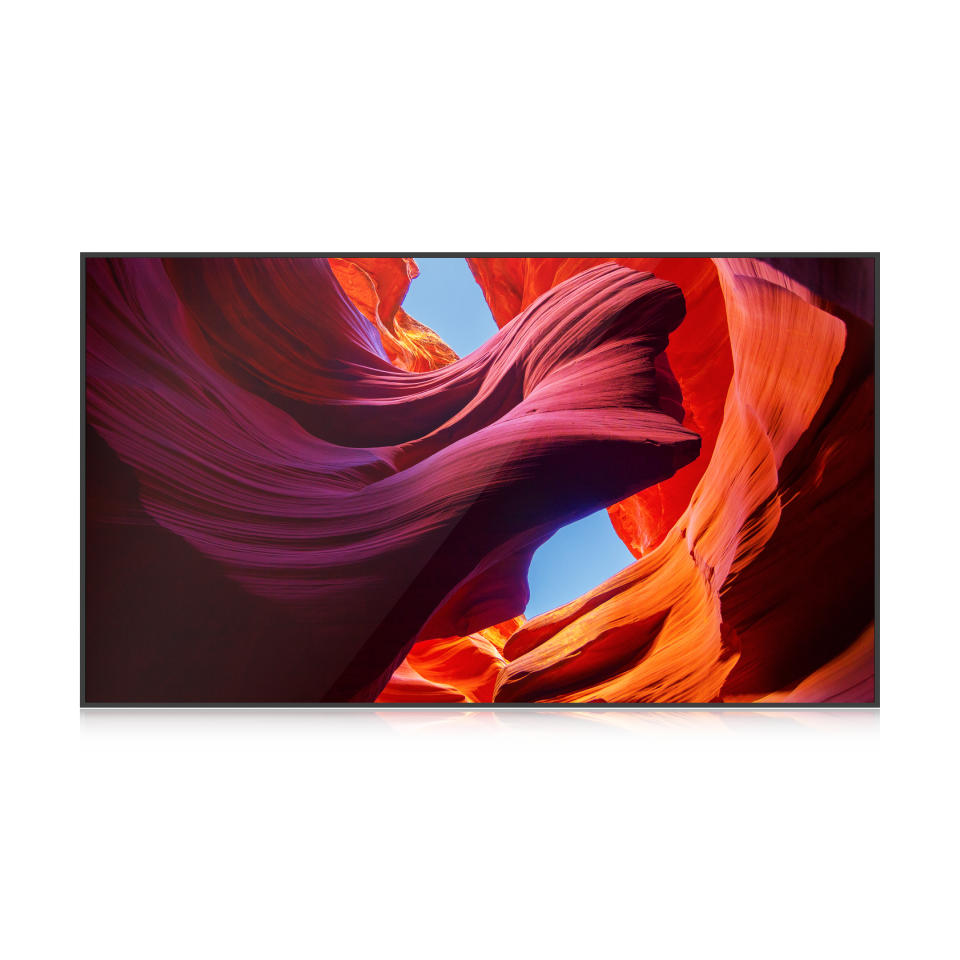

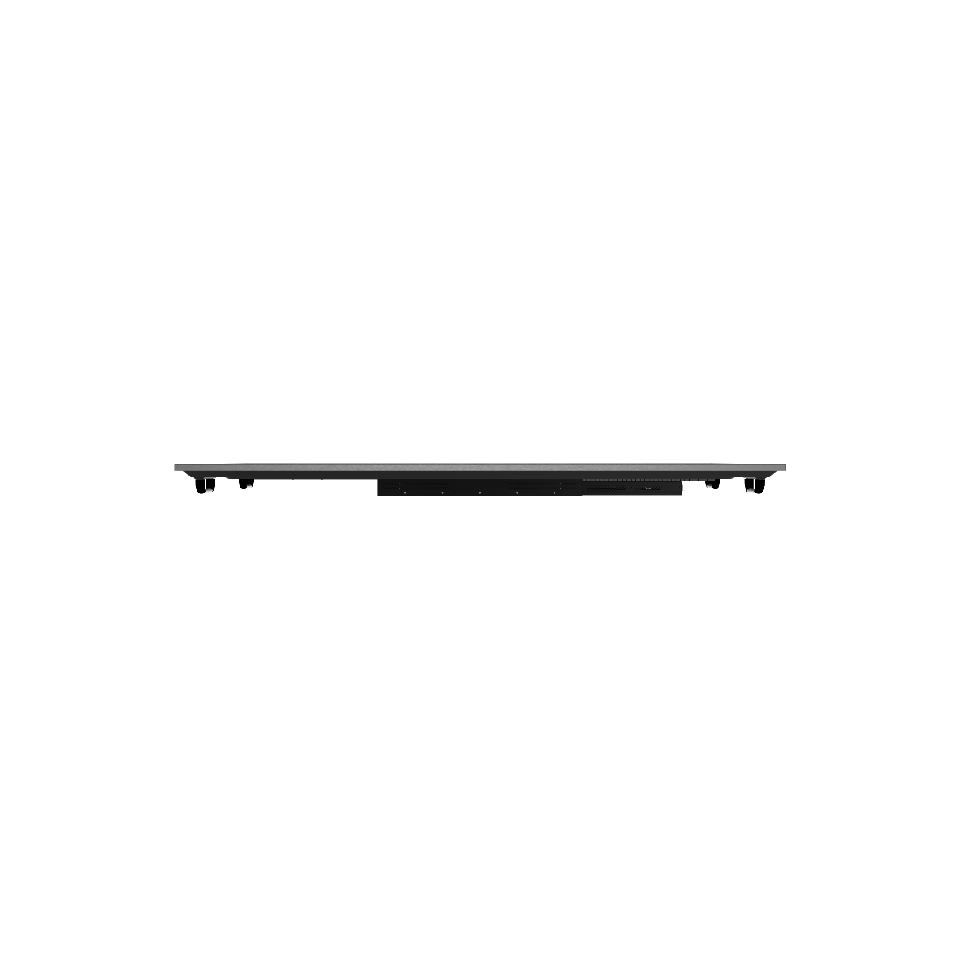

8500-I

85” TFT LCD, 2000nits, LED Backlight, UHD(3840x2160)
  • 85" sunlight readable, high brightness (2,000 nits)
  • Resolutions:  3840 x 2160
  • Wide viewing angle of 178° (H), 178° (V)
  • Long lasting 24/7 operations
  • Low power consumption
  • BL MTBF: 100,000 hours

Intel® SDM Ready Display
DLS8500-I 85" 4K2K SDM Solution
PRINT
INQUIRY COMPARE
SPECIFICATION DOWNLOAD
Model Name DLF8500-I DLH8500-I DLD8500-I
Description 85” TFT LCD, LED Backlight 2000nits, UHD(3840x2160)
size 85”
Display area (mm) 1872(H)*1053(V)
Brightness 2000 cd/m²
Resolution 3840x2160
Aspect ratio 16:9
Contrast ratio 4,000 : 1
Pixel pitch (mm) 0.4875(H) x 0.4875(V)
Pixel per inch (PPI) 52
Viewing angle 178° (H), 178° (V)
Color saturation (NTSC) 90%
Display colors 1.07 G
Response time (Typical) 9.5ms
Video interface V-by-One DVI-D, HDMI, DP
Input power AC100~240V
Power consumption 819W 827W
Dimensions (mm) 1902 x 1083 x 93.87 1902 x 1083 x 103.62 1902 x 1083 x 107.8
Bezel size (U/B/L/R) 15/15/15/15 mm
Weight (Net) 58kg 60kg 80kg
Mounting VESA 500x400, 500x600
OSD key 5 Keys (Power Switch, Menu, +, Exit, -)
OSD control Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Operating temperature 0°C ~ +50°C
Storage temperature -20°C ~ +60°C

Download
