Home / Product / Industrial Display / Spanpixel™ - Resizing LCDs / 4959-I

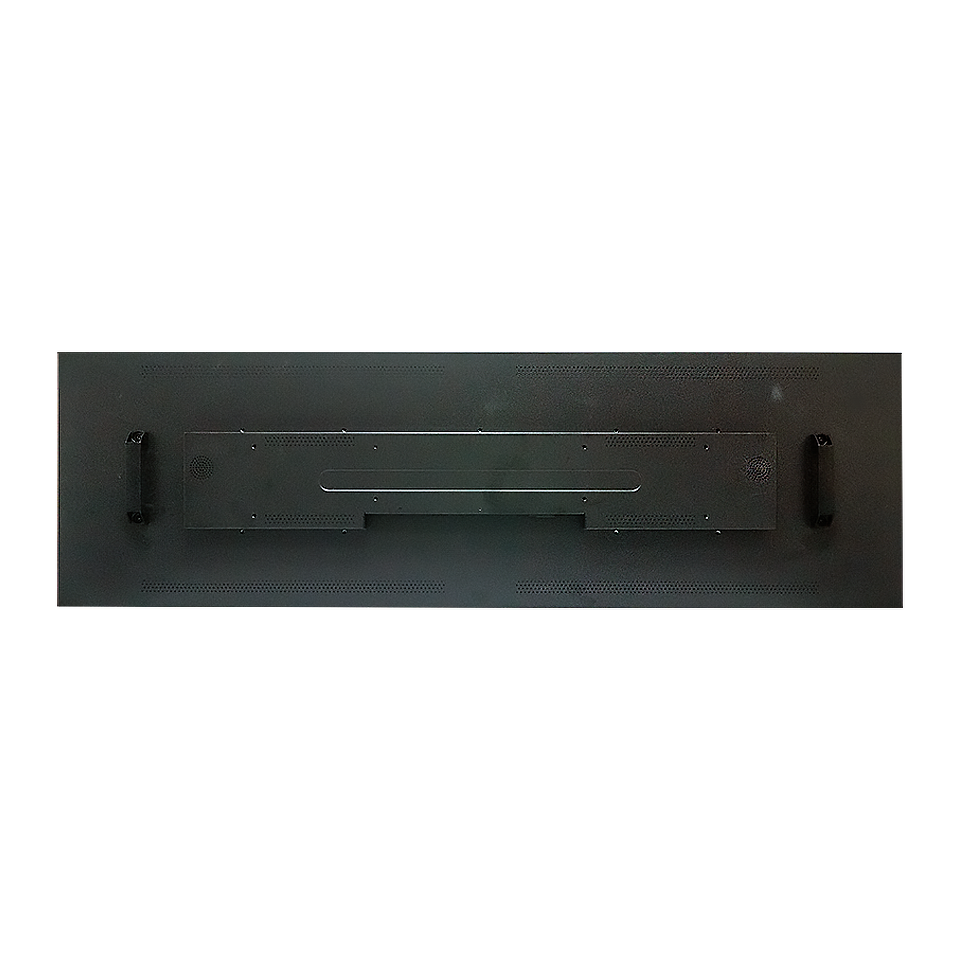

Stretch Digital Display

4959-I

49.5” LCD, 1800 nits LED Backlight , 3840x1080 ultra-wide aspect ratio 16:4.5
  •  49.5” Resizing LCD
  •  Ultra-Wide Screen (16 : 4.5)
  •  High Brightness 1800 nits
  •  LED Backlight
  •  Wide Viewing Angle of 178°(H), 178°(V)
  •  Low Power Consumption
  •  BL MTBF: 100,000 hours
PRINT
INQUIRY COMPARE

Main Features

  • Wide Viewing Angle

  • MTBF 100K

  • Low Power Consumption

SPECIFICATION DOWNLOAD
Model Name SSF4959-I SSH4959-I SSD4959-I
Description 49.5” Resizing LCD, 1800 nits LED backlight, 3840x1080
size 49.5”
Display area (mm) 1209.6(H) x 340.2(V)
Brightness 1800 cd/m2
Resolution 3840x1080
Aspect ratio 16: 4.5
Contrast ratio 6400: 1
Pixel pitch (mm) 0.315(H) x 0.315(V)
Pixel per inch (PPI) 81
Viewing angle 178° (H), 178° (V)
Color saturation (NTSC) 82%
Display colors 1.07G
Response time (Typical) 9.5ms
Panel Interface V-by-One
Video interface V-by-One LVDS,DVI-I,HDMI,DP
Input Interface HDMI x 2, DP
Input power   AC100~240V
Power consumption 110W 115W
Dimensions (mm) 1244.6 x 378.7 x 25.4  1247.2 x 381.3 x 68.4
Bezel size (U/B/L/R)mm 19.25/19.25/17.5/17.5  20.6/20.6/18.8/18.8
Weight (Net) 11.5 kg 11.7 kg 18.5kg
Mounting VESA 300x75, 650x100
OSD key   5 Keys (Power Switch, Menu, +, Exit, -)
OSD control Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Operating temperature 0°C ~ +50°C
Storage temperature -20°C ~ +60°C
Product approval CE, FCC

Download
