Home / Product / Industrial Display / Squarepixel™-Square LCDs / 4215-I

Square LCD displays

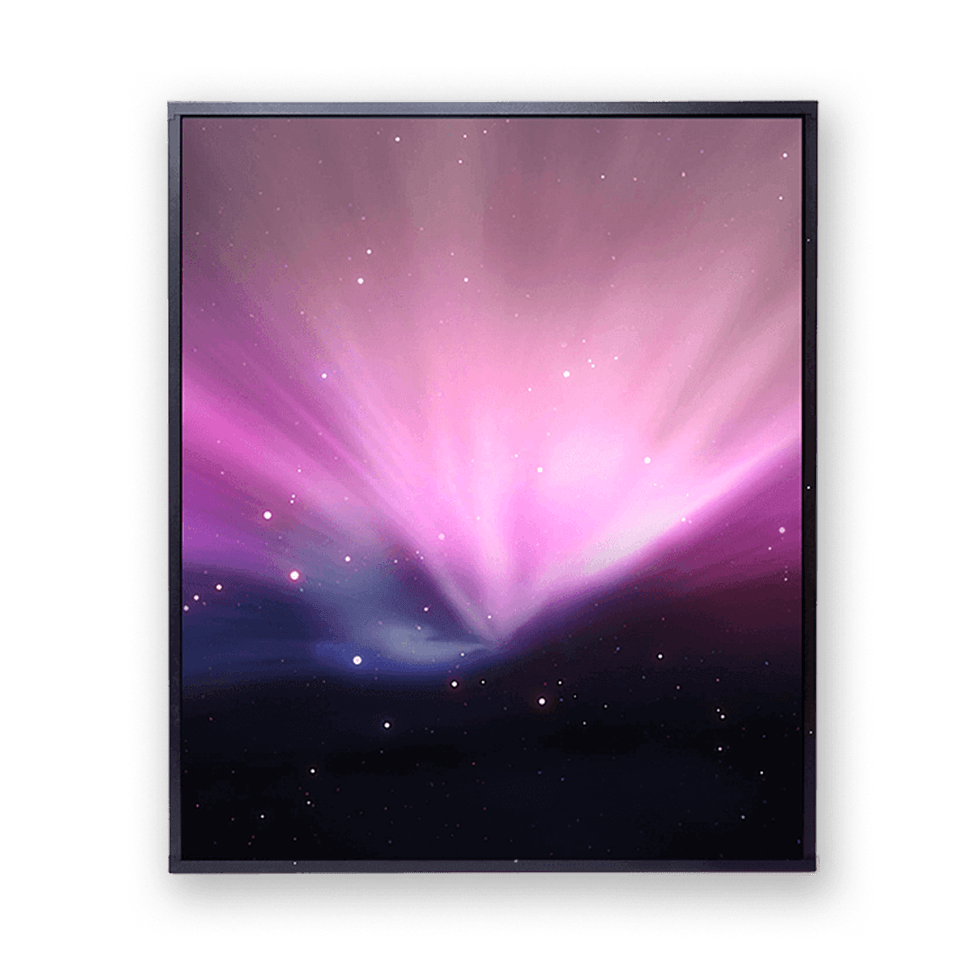

4215-I

42.1" Resizing LCD, 800 nits LED backlight,MaxRGB, 1900x2160
  • 42.1" resizing LCD
  • Resizing display  (aspect ratio of 8 : 9)
  • Sunlight readable, high brightness (800 nits)
  • Resolutions: 1900 x 2160
  • MaxRGB (NTSC 91%)
  • Wide view angle of 178° (H), 178° (V)
  • BL MTBF: 100,000 hours
PRINT
INQUIRY COMPARE

Main Features

  • Sunlight Readable

  • MTBF 100K

  • MaxRGB

SPECIFICATION DOWNLOAD
Model Name SSF4215-I SSH4215-I SSD4215-I
Description 42.1" Resizing LCD, 800 nits LED backlight, MaxRGB, 1900x2160
size 42.1"
Display area (mm) 706.8(H) x 803.5 (V)
Brightness 800 cd/m²
Resolution 1900x2160
Aspect ratio 8:9
Contrast ratio 6000:1
Pixel pitch (mm) 0.372 (H) x 0.372 (V)
Pixel per inch (PPI) 69
Viewing angle 178° (H), 178° (V)
Color saturation (NTSC) 91%
Display colors 1.07G
Response time (Typical) 9.5ms
Video interface V-by-One DVI, HDMI, DP
Input power   AC 100~240V
Power consumption 131W 136W
Dimensions (mm) 741.3x838x22.4 743.9x840.6x70.8
Bezel size (U/B/L/R) 15/15/15/15 16.3/16.3/16.3/16.3
Weight (Net) 12.4kg 22kg
Mounting   VESA 400x200, 400x300
OSD key   5 Keys (Power Switch, Menu, +, Exit, -)
OSD control   Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Operating temperature 0°C ~ +50°C
Storage temperature -20°C ~ +60°C
Product approval   CE, FCC
