Home / Product / Industrial Computing / Industrial Panel PCs & Monitors / Rugged Panel PCs & Monitors / ITAB-0803-MTK0

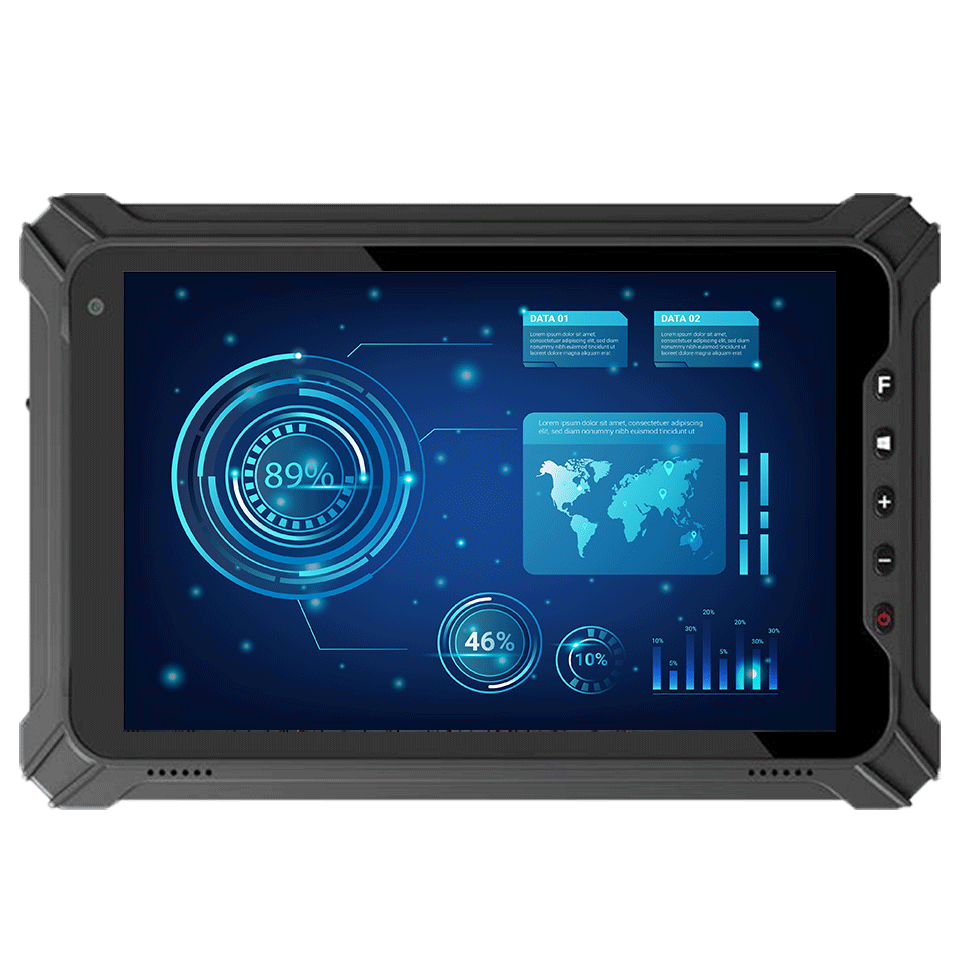

Rugged Tablet PC

ITAB-0803-MTK0

8" P-CAP Fanless Rugged Android Mobile Tablet PC with
MT6789 Processor
• Full IP65 Ruggedized Design
• MediaTek MT6789 processor
• 8" LCD, 1920 x 1200, 550 nits
• P-CAP 5 Points touch screen
• MIL-STD-810H, CE, FCC, RoHS Certificated
PRINT
INQUIRY COMPARE

Main Features

  • Wide Temp

  • Touch Screen

  • RoHS

  • Full IP68

  • FCC

  • Fanless

  • CE

SPECIFICATION Download
Model Name 8" P-CAP Fanless Rugged Android Mobile Tablet PC
Display type 8" TFT LCD
Resolution 1920 x 1200 pixel
Luminance/Brightness 550 cd/m2
Processor MediaTek MT6789
Graphic ARM G57 MC2
Memory 8GB LPDDR4
Storage support 128GB eMMC
OS Support Android 12/ Android 14 (optional)
Camera Rear: 13MP, Front: 5MP
Power Adapter DC 5V/3A
Battery 10000mAh/3.8V (Removable)
Dimensions 236.7 x155.7 x 20mm
Weight 910g
Rugged Feature IP65, 1.22m drop test
Operating temperature -20°C ~ 60°C
Storage temperature -30°C ~ 70°C

Download
