Home / Product / Industrial Display / Spanpixel™ - Resizing LCDs / 3585-Y

Stretch Digital Display

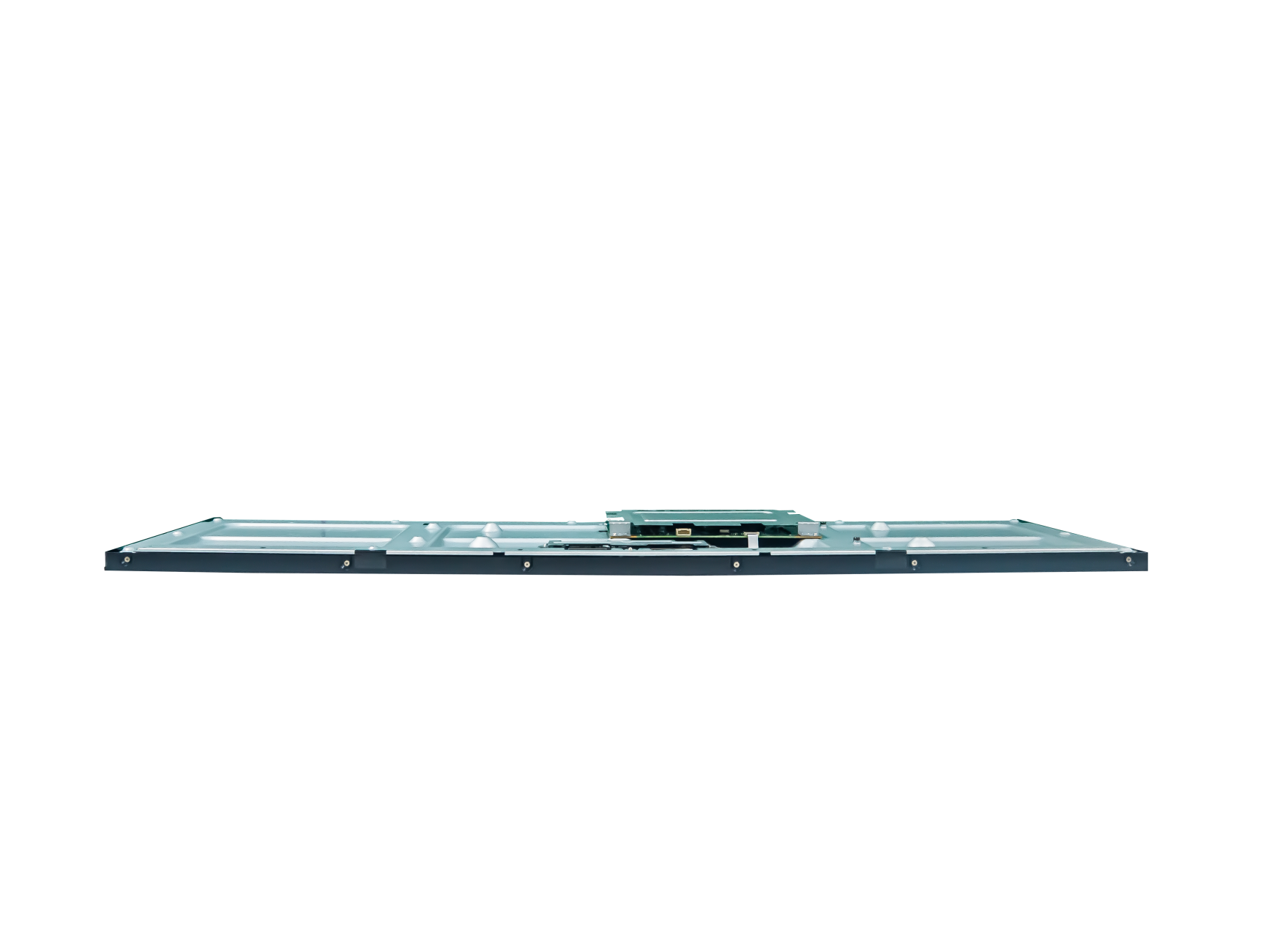

3585-Y

35.8” TFT LCD, 1000 nits LED Backlight , 1920x532 ultra-wide aspect ratio 16:4.4
  • 35.8” Stretched LCD
  •  Ultra-Wide Screen (16: 4.4)
  •  High Brightness 1000 nits
  •  LED Backlight
  •  Low Power Consumption
  •  BL MTBF: 50,000 hours
PRINT
INQUIRY COMPARE

Main Features

  • Stretch Display

  • Low Power Consumption

SPECIFICATION DOWNLOAD
Model Name SSF3585-Y SSH3585-Y SSD3585-Y
Description 35.8” TFT LCD, 1000 nits LED backlight, 1920x532
size 35.8"
Display area (mm) 878.112(H) x 239.081(V)
Brightness 1000 cd/m²
Resolution 1920x532
Aspect ratio 16:4.4
Contrast ratio 4200: 1
Pixel pitch (mm) 0.45735(H) x 0.4494(V)
Pixel per inch (PPI) 55
Viewing angle 178° (H), 178° (V)
Color saturation (NTSC) 81%
Display colors 16.7M
Response time (Typical) 9.5ms
Video interface LVDS VGA, DVI-D, HDMI, DP
Input power   DC 24V
Power consumption 56W 60W
Dimensions (mm) 895.51 x 265.68 x 31.1  898 x 268.1 x 77.2
Bezel size (U/B/L/R) 11.9/11.9/7.3/7.3 14.5/14.5/9.9/9.9
Weight (Net) 4.6kg 4.8kg 10.5kg
Mounting   VESA 300x75
OSD key   4 keys (Power switch, menu, +, -)
OSD control   Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Operating temperature 0°C ~ +50°C
Storage temperature -20°C ~ +60°C
Product approval   CE, FCC
