Home / Product / Industrial Display / Durapixel™ - Sunlight Readable LCDs / 3200-B

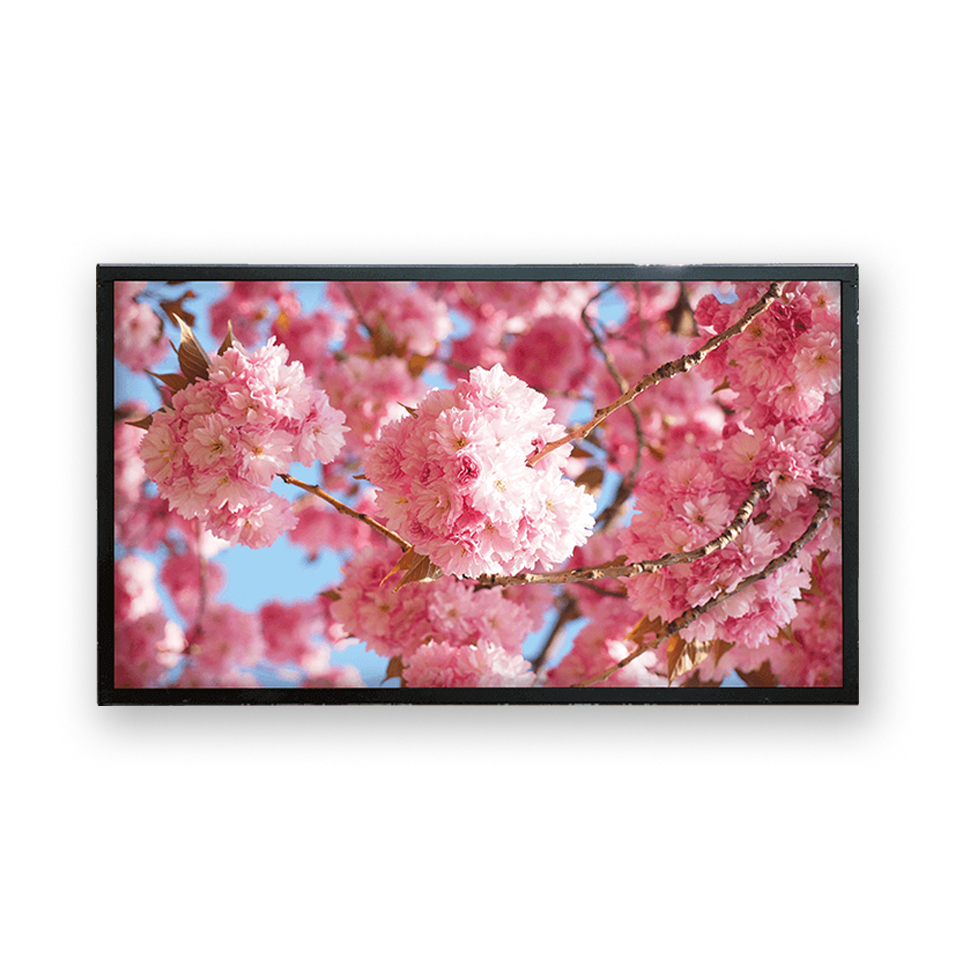

Digital Signage Display

3200-B

32” TFT LCD, 2000nits LED Backlight, 1920x1080
  • High Brightness 2000 nits
  • Sunlight Readable
  • LED Backlight
  • Wide Viewing Angle of 178°(H), 178°(V)
  • Wide Operation Temperature (-20 ˚C ~60˚C)
  • LCD Blacking Defect Free (H-Tni 105 ˚C)
  • Low Power Consumption
  • BL MTBF: 100,000 hours
PRINT
INQUIRY COMPARE

Main Features

  • Wide Viewing Angle

  • Sunlight Readable

  • Low Power Consumption

SPECIFICATION DOWNLOAD
Model Name DLF3200-B DLH3200-B DLD3200-B
Description 32" TFT LCD, 2000 nits LED backlight, 1920x1080
size 32"
Display area (mm) 698.4(H) x 392.85(V)
Brightness 2000 cd/m²
Resolution 1920x1080
Aspect ratio 16:9
Contrast ratio 1500:1
Pixel pitch (mm) 0.36375 (H) x 0.36375 (V)
Pixel per inch (PPI) 69
Viewing angle 178° (H), 178° (V)
Color saturation (NTSC) 82%
Display colors 16.7M
Response time (Typical) 8ms
Video interface LVDS DVI-I, HDMI, DP
Input power AC100~240V
Power consumption 68W (72W with AD Board) 72W
Dimensions (mm) 732.4 x 426.85 x 19.9 735.4 x 429.7 x 59.3
Bezel size (U/B/L/R) 16.5 / 17.5 / 17.0 / 17.0 mm 17.9/19/18.5/18.5 mm
Weight (Net) 5.45kg 5.65kg 9.6kg
Mounting   VESA 100x100, 200x200
OSD key 4 Keys (Power Switch, Menu, +, -)
OSD control Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Operating temperature -20 ˚C ~ 60 ˚C
Storage temperature -20 ˚C ~ 70 ˚C
Product approval   CE, FCC

Download
