Home / Product / Industrial Display / Spanpixel™ - Resizing LCDs / 2861-Y

Stretch Digital Display

2861-Y

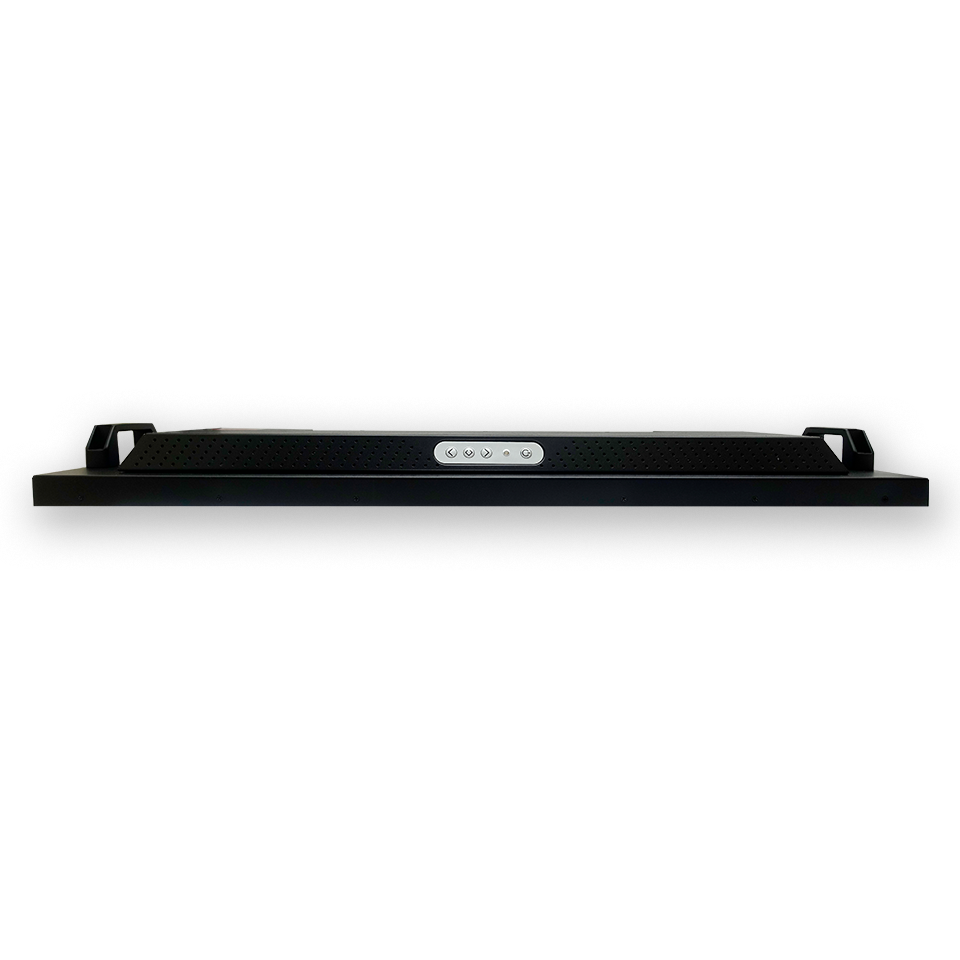

28.6" Resizing LCD, 3200nits LED Backlight, 1920x540
  • Ultra Wide Screen 16:4.5
  • High Brightness 3200 nits
  • Sunlight Readable
  • LED Backlight
  • Low Power Consumption
  • LCD Blacking Defect Free(Hi-Tni 110 ˚C)
  • BL MTBF: 100,000 hours
PRINT
INQUIRY COMPARE
SPECIFICATION DOWNLOAD
Model Name SSF2861-Y SSH2861-Y SSD2861-Y
Description 28.6” TFT LCD, 3200nits LED Backlight, 1920x540
Size 28.6”
Display area (mm) 698.400(H) x 196.425(V)
Brightness 3200 cd/m²
Resolution 1920x540
Aspect ratio 16:4.5
Contrast ratio 6000:1
Pixel pitch (mm) 0.3637(H) x 0.3637 (V)
Pixel per inch (PPI) 70
Viewing angle 178°(H),178°(V)
Color saturation (NTSC) 84%
Display colors 16.7M
Response time (Typical) 8ms
Video interface LVDS DVI-I, HDMI, DP
Input power DC24V
Power consumption 55W 60W
Dimensions (mm) 731.46(H)x 229.49(V)x 20.34 (T) 734.5(H)x 232.5(V)x 60.1 (T)
Bezel size (U/B/L/R) 16.533/16.533/16.530/16.530 18/18/18/18
Weight (Net) 2.6 kg 2.8 kg 5.6kg
Mounting   VESA 400x75
OSD key   4 keys (Power switch, menu, +, -)
OSD control   Brightness, color, contrast, H/V position… etc
Operating temperature -20 ˚C ~ 60 ˚C
Storage temperature -20 ˚C ~ 60 ˚C
