Home / Product / Industrial Display / Durapixel™ - Sunlight Readable LCDs / DLD5500-I

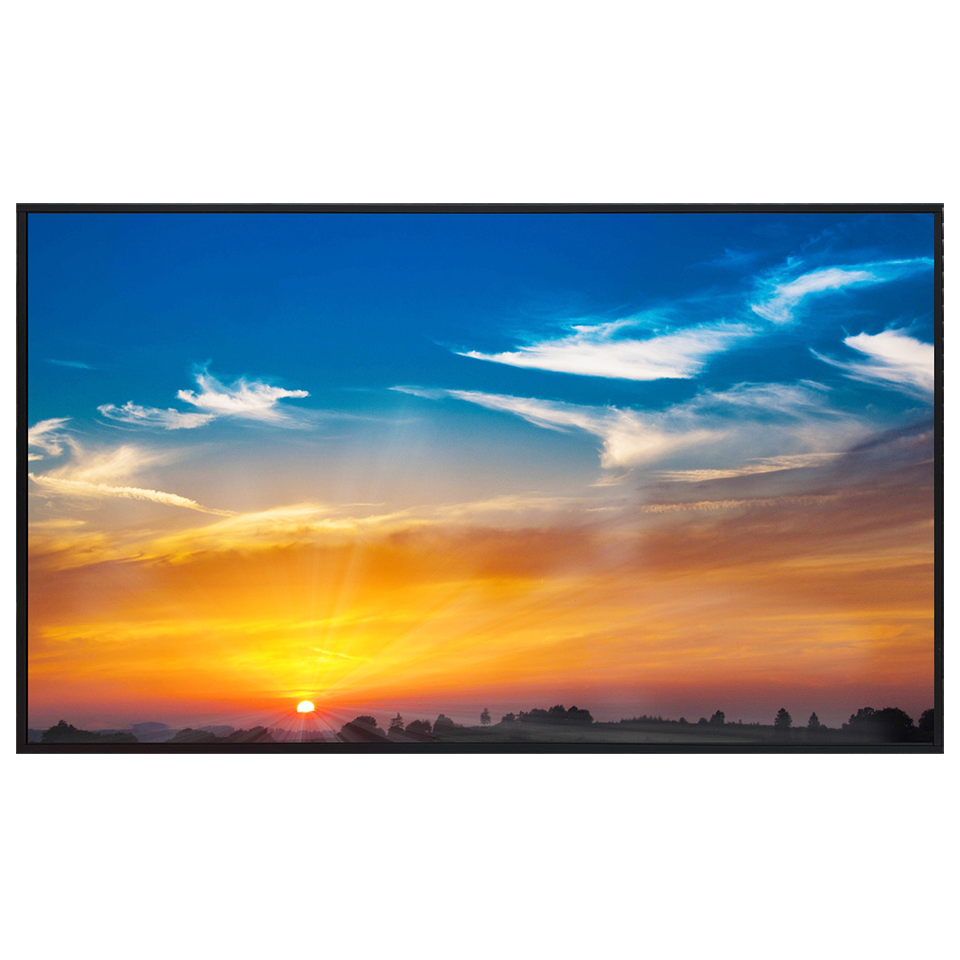

DLD5500-I

The DLD5500-I is a 55 inch industrial grade sunlight readable LCD, with high brightness 2500 nits, it produces sharp images, crisp text and lifelike colors.
  • High brightness 2500nits
  • Sunlight Readable
  • Wide Operation Temperature (-30 ˚C ~70˚C)
  • LCD Blackening Defect Free (H-Tni 110 ˚C)
  • Surface Treatment (Haze 25%)
  • Low Power Consumption
  • BL MTBF: 100,000 hours
PRINT
INQUIRY COMPARE

Main Features

  • aftermarket

  • dashboard

  • HMI

  • High Performance

  • Wide Temp

  • Wide Viewing Angle

INTRODUCTION SPECIFICATION DOWNLOAD
The DLD5500-I is a 55 inch industrial grade sunlight readable LCD, with high brightness 2500 nits, it produces sharp images, crisp text and lifelike colors. The Durapixel LED backlight technology ensures high reliability and low power consumption, suitable for outdoor application, kiosk, factory automation, military, transportation and gaming application.
Model Name DLD5500-I
 Description 55” TFT LCD, 2500nits LED Backlight, 3840x2160
Screen Size 55”
 Display Area (mm) 1209.6(H) x 680.4(V)
 Brightness 2500 cd/m2
 Resolution 3840x2160
 Aspect Ratio  16 : 9
Contrast Ratio  6000 : 1
 Pixel Pitch (mm) 0.315(H) x 0.315 (V)
 Viewing Angle  178°(H),178°(V)
Input Interface DVI-I, HDMI, DP
Power Consumption 280W
OSD Key 5 Keys (Power Switch, Menu, +, -, Exit)
Dimensions (mm) 1240.1 x 711.1 x 107.5 mm
 Bezel Size(U/B/L/R) 15.35/15.35/15.25/15.25 mm
Mounting 400x200, 400x300
Weight (Net) 27 kg
 Operating Temperature -30 ˚C ~ 70 ˚C
 Storage Temperature -30 ˚C ~ 70 ˚C

Download
