Home / Product / Industrial Display / Durapixel™ - Sunlight Readable LCDs / 2708-B

Digital Signage Display

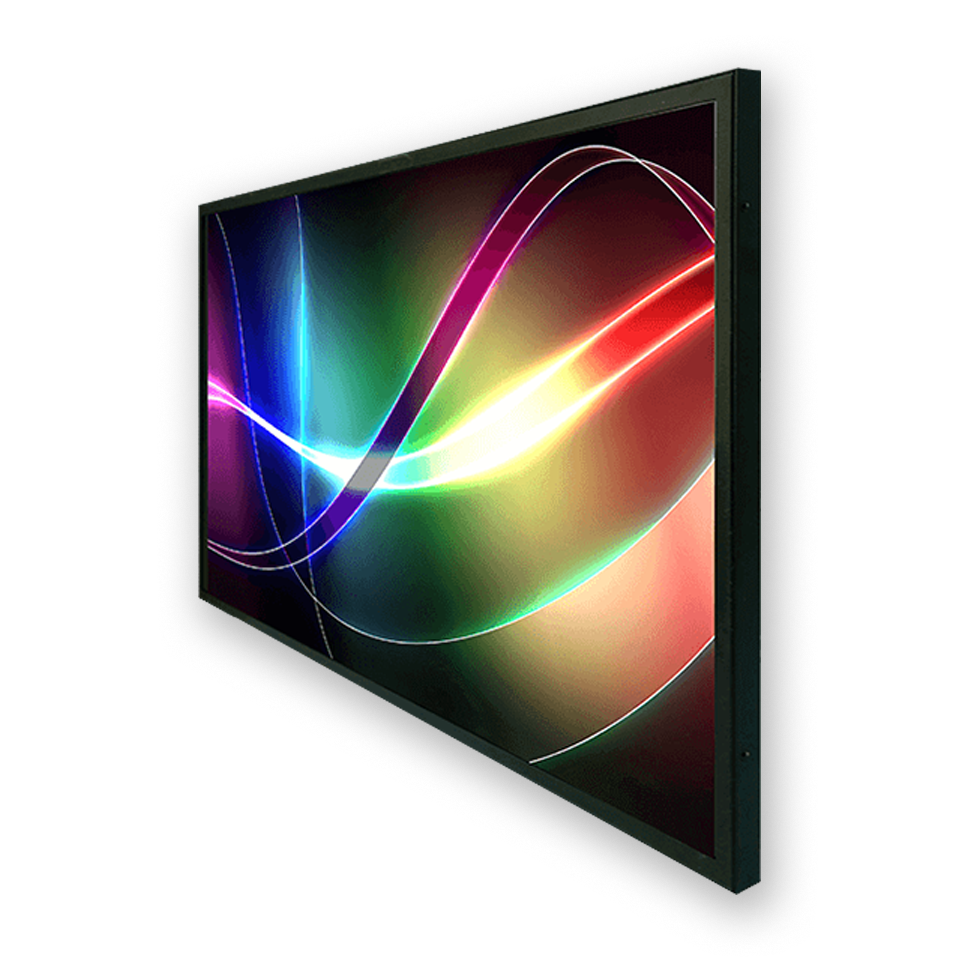

2708-B

27" TFT LCD, 1600 nits LED backlight, 1920x1080
  • 27" sunlight readable, high brightness (1600 nits)
  • Resolutions: 1920 x 1080
  • Aspect ratio of 16:9
  • Wide viewing angle of 178° (H), 178° (V)
  • High color contrast ratio (900:1)
  • Low power consumption
  • BL MTBF: 100,000 hours
PRINT
INQUIRY COMPARE
SPECIFICATION DOWNLOAD
Model Name DLF2708-B DLH2708-B DLD2708-B
Description 27" TFT LCD, 1600 nits LED backlight, 1920x1080
size 27"
Display area (mm) 597.888(H) x 336.312(V)
Brightness 1600 cd/m²
Resolution 1920x1080
Aspect ratio 16:9
Contrast ratio 900:1
Pixel pitch (mm) 0.3114 (H) x 0.3114 (V)
Pixel per inch (PPI) 81
Viewing angle 178° (H), 178° (V)
Color saturation (NTSC) 85%
Display colors 16.7M
Response time (Typical) 14ms
Video interface LVDS VGA, DVI-D, DP
Input power   DC 12V
Power consumption 44W 46W
Dimensions (mm) 622x360.5x13.7 625x363.5x45.1
Bezel size (U/B/L/R) 12.137/12.094/12.056/12.056 13.7/13.7/13.7/13.7
Weight (Net) 2.8 kg 3.3 kg 6.2 kg
Mounting   VESA 200x100, 100x100
OSD key   4 keys (Power switch, menu, +, -) 5 keys (Power switch, menu, +, -)
OSD control   Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Operating temperature 0°C ~ +50°C
Storage temperature -20°C ~ +60°C
Product approval   CE, FCC
