Home / Product / Industrial Display / Spanpixel™ - Resizing LCDs / 2405-M

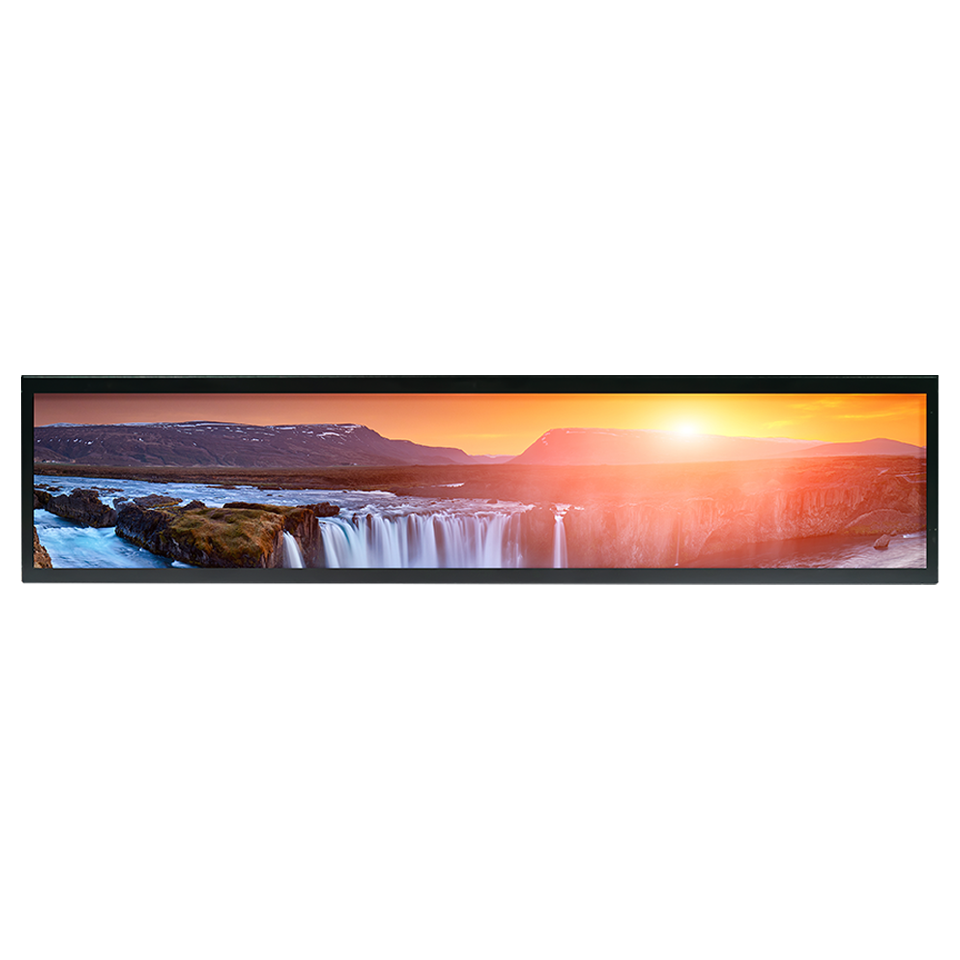

Stretch Digital Display

2405-M

24” Resizing LCD, 1000 nits LED backlight, MaxRGB, 1920 x 360
  •  24” Resizing LCD
  •  Ultra-Wide Screen (16 : 3)
  •  High Brightness 1000 nits
  •  LED Backlight
  •  High Color Saturation
  •  Wide viewing angle 178°(H)~ 178°(V)
  •  Low Power Consumption
  •  BL MTBF: 100,000 hours
PRINT
INQUIRY COMPARE

Main Features

  • MTBF 100K

  • MaxRGB

  • Low Power Consumption

SPECIFICATION DOWNLOAD
Model name SSF2405-M SSH2405-M SSD2405-M
Description 24” Resizing LCD, 1000 nits LED backlight, MaxRGB, 1920x360
Size 24”
Display area (mm) 597.6(H) x 112.05(V)
Brightness 1000 cd/m²
Resolution 1920x360
Aspect ratio 16 : 3
Contrast ratio 5400: 1
Pixel pitch (mm) 0.31125(H) x 0.31125(V)
Pixel per inch (PPI) 81
Viewing angle 178°(H),178°(V)
Color saturation (NTSC) 88%
Display colors 16.7M
Response time (Typical) 20ms
Video interface LVDS HDMI, DP
Input power DC12V
Power consumption 24W 27W
Dimensions (mm) 623.4 x 198.9 x 16.95 626 x 201.5 x 44
Bezel size (U/B/L/R) 15.4/15.4/12.9/12.9 16.7/16.7/14.2/14.2
Weight (Net) 2.5 kg 2.7 kg 3.5 kg
Mounting   VESA 75x75, 250x75
Operating temperature 0 ˚C ~ 50 ˚C
Storage temperature -20 ˚C ~ 60 ˚C
Product approval   CE, FCC
