Home / Product / Industrial Display / Ubipixel™-Industrial High Brightness LCDs / 2386-I

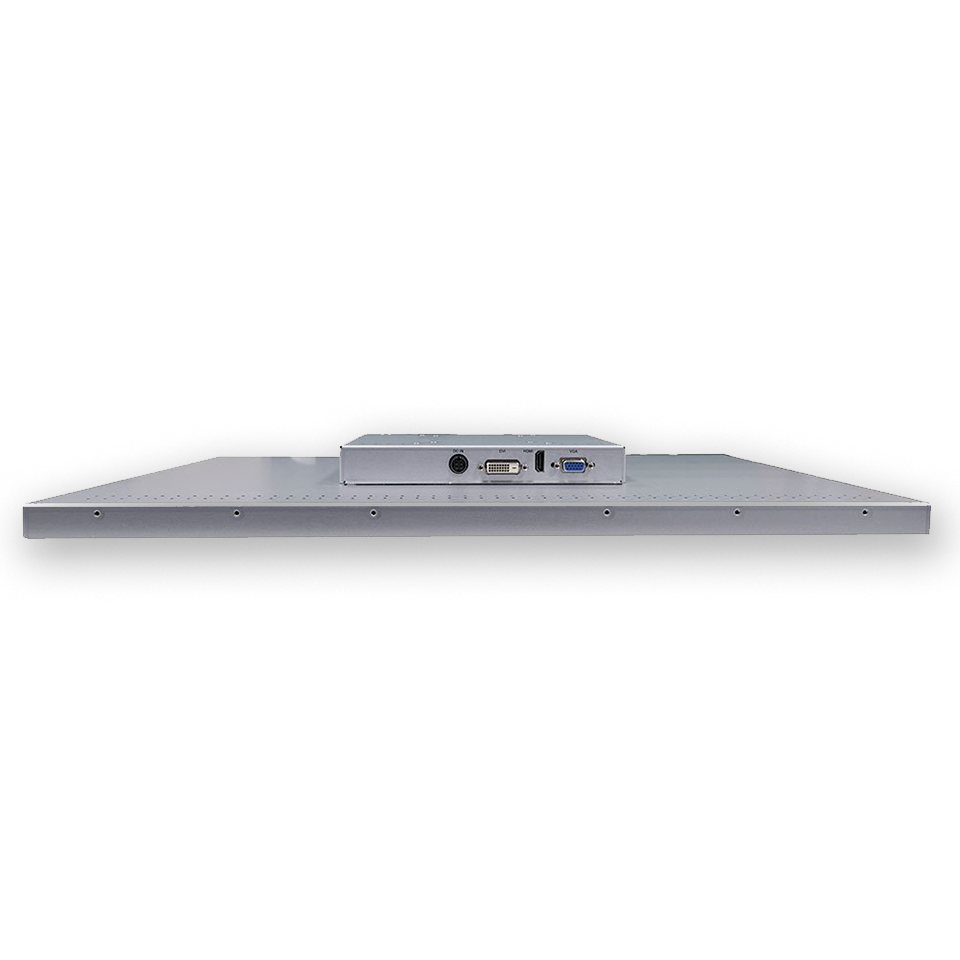

Industrial LCD Monitor

2386-I

23.8” TFT LCD, 1200nits LED Backlight, 1920x1080
  • High Brightness 1200 nits
  • Sunlight Readable
  • LED Backlight
  • Wide Viewing Angle
  • BL MTBF: 100,000 hours
PRINT
INQUIRY COMPARE
SPECIFICATION DOWNLOAD
Model Name ULF2386-I  ULH2386-I  ULO2386-I
Description 23.8” TFT LCD, 1200nits LED Backlight, 1920x1080
size 23.8”
Display area (mm) 527.04(H) x 296.46(V)
Brightness 1200 cd/m²
Resolution 1920x1080
Aspect ratio 16:9
Contrast ratio 1000:1
Pixel pitch (mm) 0.2745(H) x 0.2745(V)
Pixel per inch (PPI) 92
Viewing angle 178°(H),178°(V)
Color saturation (NTSC) 82%
Display colors 16.7M
Response time (Typical) 14ms
Video interface LVDS VGA, DVI-D, HDMI
Input power   DC 12V
Power consumption 30W 33W
Dimensions (mm) 543(H) x 317.4(V) x 11.78 (T) 548.2(H) x 322.6(V) x 49.5(T)
Bezel size (U/B/L/R) 7.97/12.97/7.98/7.98 9.3/16.8/10.58/10.58
Weight (Net) 2.5  kg 2.7  kg 3.9 kg
Mounting   VESA 75x75, 100x100
OSD key   4 Keys (Power Switch, Menu, +, -)
OSD control   Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Operating temperature 0 ˚C ~50 ˚C
Storage temperature -20 ˚C ~ 60 ˚C
