Home / Product / Industrial Display / Spanpixel™ - Resizing LCDs / 1916-B

Stretch Digital Display

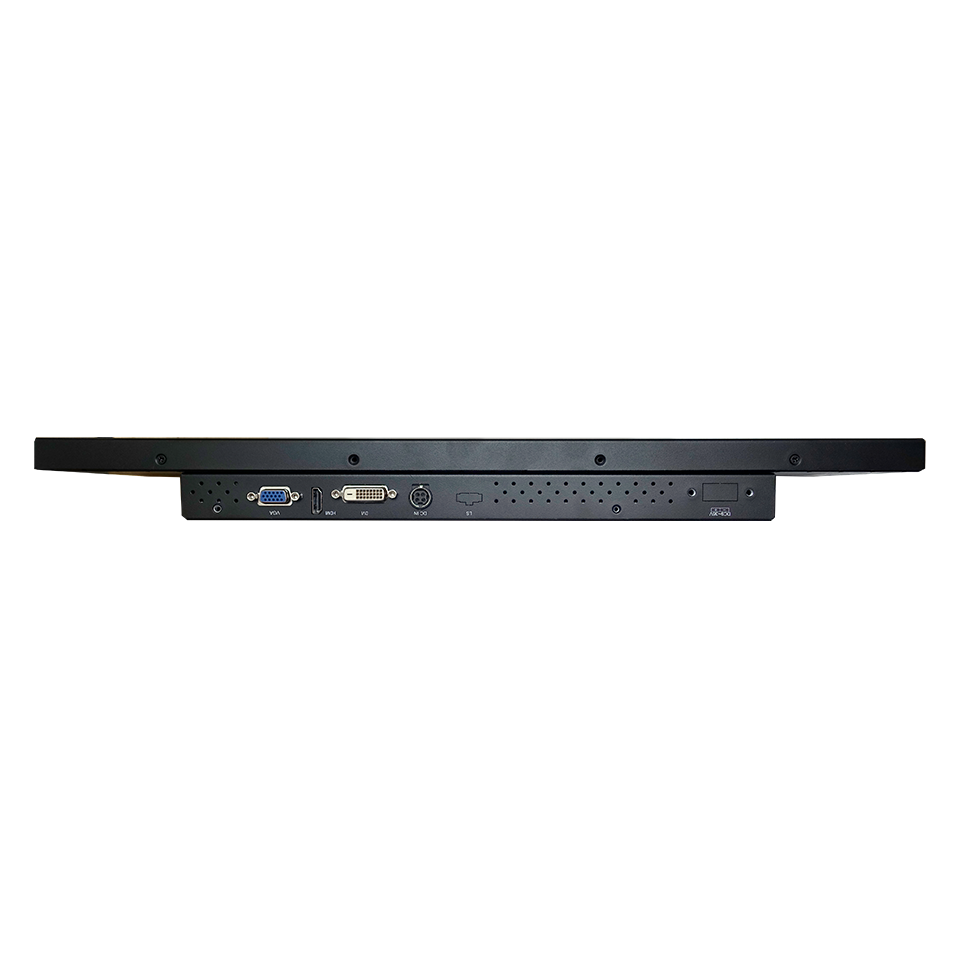

1916-B

19.1" Resizing LCD, 1200nits, LED backlight, 1920 x 388, ultra-wide
  • Resizing LCD
  • Ultra Wide Screen 16:3.2
  • LED Backlight
  • Brightness 1200nits
  • Low Power Consumption
  • BL MTBF: 100,000 hours
PRINT
INQUIRY COMPARE

Main Features

  • MTBF 100K

  • Low Power Consumption

SPECIFICATION DOWNLOAD
Model Name SSF1916-B SSH1916-B SSD1916-B
Description 19.1” Resizing LCD, 1200nits LED backlight , 1920 x 388
Size 19.1"
Display area (mm) 476.064(H) x 96.204(V)
Brightness 1200 cd/m²
Resolution 1920x388
Aspect ratio 16:3.2
Contrast ratio 1500:1
Pixel pitch (mm) 0.24795(H) x 0.24795(V)
Pixel per inch (PPI) 103
Viewing angle 178° (H), 178° (V)
Color saturation (NTSC) 80%
Display colors 16.7M
Response time (Typical) 20ms
Video interface LVDS VGA, DVI-D, HDMI
Input power   DC 12V
Power consumption 13W 15.4W
Dimensions (mm) 497.60x121.30x16.55 508.01x132.00x47.05
Bezel size (U/B/L/R) 12.548/12.548/10.768/10.768 17.898/17.898/15.973/15.973
Weight (Net) 0.74kg 2.7kg
Mounting   VESA 100x100, 200x100
OSD key   4 keys (Power switch, menu, +, -)
OSD control   Brightness, color, contrast, H/V position… etc
Operating temperature 0°C ~ +50°C
Storage temperature  -20°C ~ +60°C
Product approval   CE, FCC
