Home / Product / Industrial Display / Durapixel™ - Sunlight Readable LCDs / 1567-A

Digital Signage Display

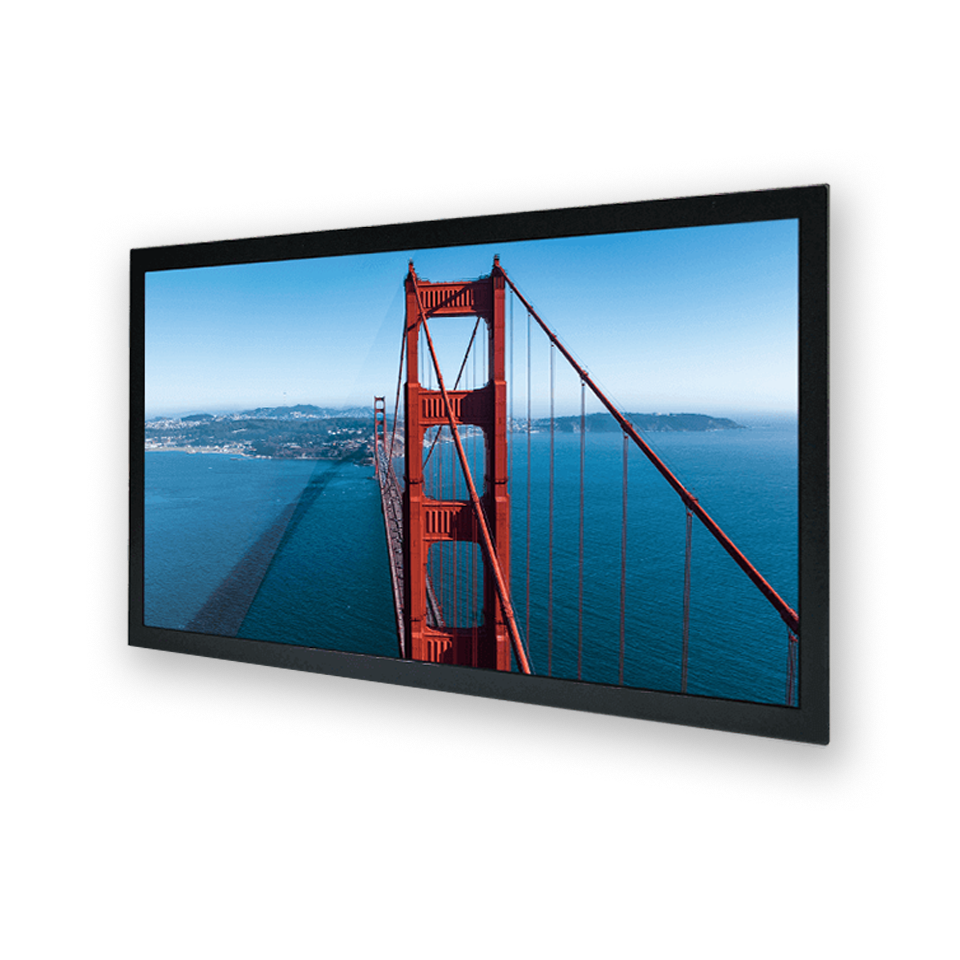

1567-A

15.6" TFT LCD, 1400 nits LED backlight, 1920x1080
  • 15.6" sunlight readable, high brightness (1,400 nits)
  • Resolutions: 1920 x 1080
  • Industry leading LED backlight
  • High contrast ratio (1000:1)
  • Low power consumption
  • BL MTBF: 100,000 hours
PRINT
INQUIRY COMPARE
SPECIFICATION DOWNLOAD
Model Name DLF1567-A DLH1567-A DLD1567-A
Description 15.6" TFT LCD, 1400 nits LED backlight, 1920x1080
size 15.6"
Display area (mm) 344.2(H) x 193.6(V)
Brightness 1400 cd/m²
Resolution 1920x1080
Aspect ratio 16:9
Contrast ratio 1000:1
Pixel pitch (mm) 0.17925 (H) x 0.17925 (V)
Pixel per inch (PPI) 141
Viewing angle 178° (H), 178° (V)
Color saturation (NTSC) 84%
Display colors 16.2M
Response time (Typical) 25ms
Video interface eDP VGA, DVI-D, DP
Input power   DC 12V
Power consumption 18.9W 23.6W
Dimensions (mm) 363.8 x 215.9 x 8.47 369 x 221.1 x 38.8
Bezel size (U/B/L/R) 9.7/9.7/8.4/8.4 11/11/9.7/9.7
Weight (Net) 1.3 kg 2.8 kg

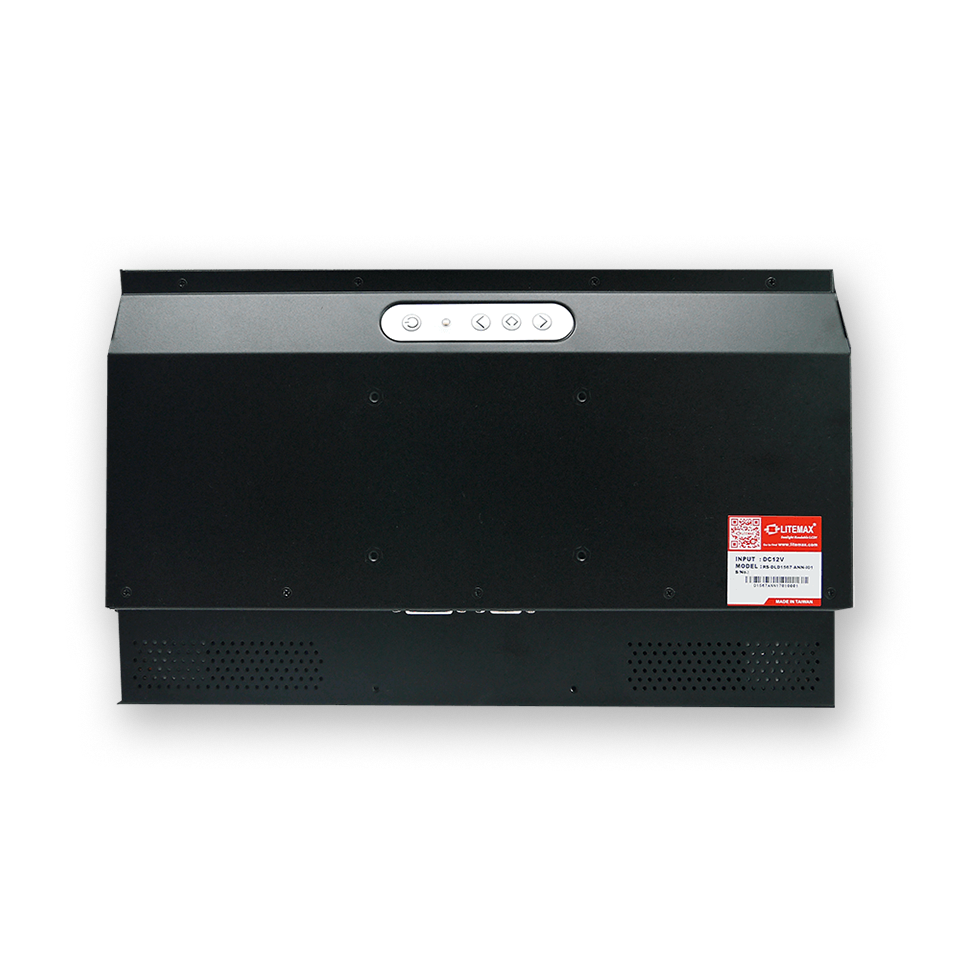

Mounting   VESA 75x75
OSD key   4 keys (Power switch, menu, +, -)
OSD control   Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Operating temperature -20°C ~ +60°C
Storage temperature -20°C ~ +60°C
Product approval   CE, FCC
