Home / Product / Industrial Display / Ubipixel™-Industrial High Brightness LCDs / 1503-I

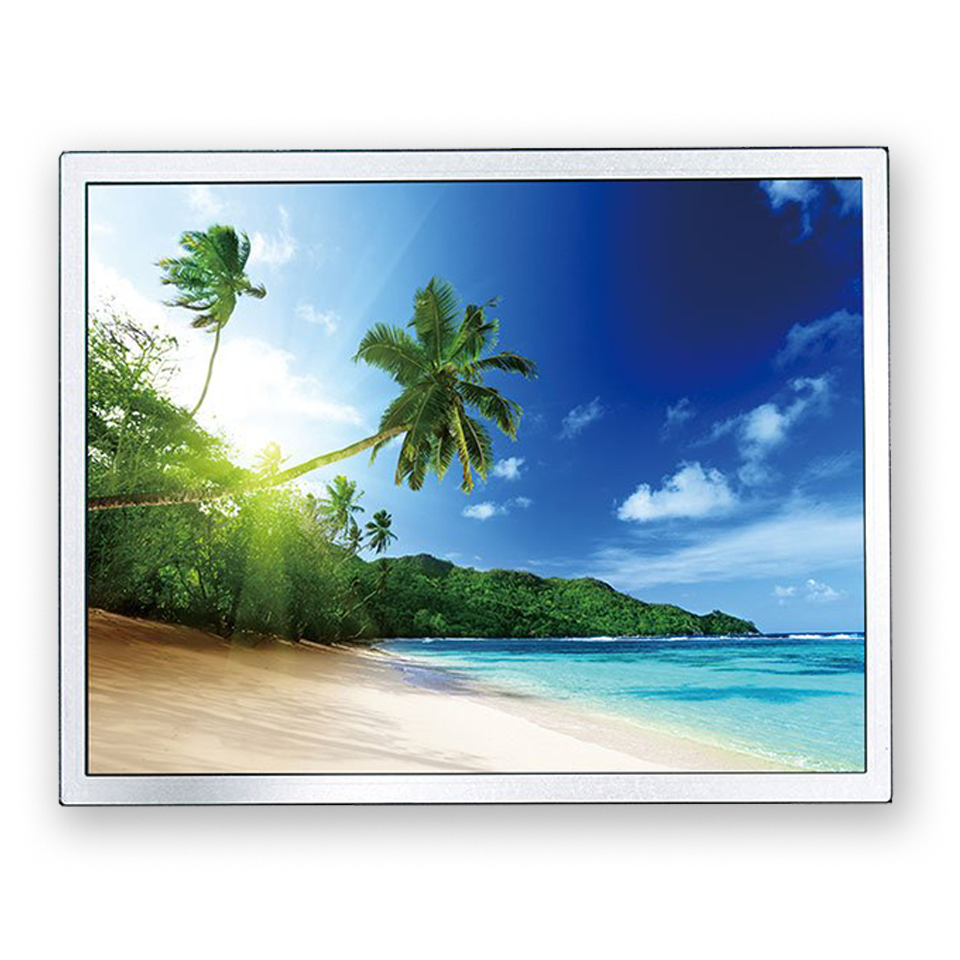

Industrial LCD Monitor

1503-I

15” TFT LCD, 500 nits LED Backlight, 1024x768
  • High Brightness 500 nits
  • LED Backlight
  • Low Power Consumption
  • Wide Operation Temperature
  • BL MTBF: 30,000 hours
PRINT
INQUIRY COMPARE
BUY ONLINE
SPECIFICATION DOWNLOAD
Model Name ULF1503-I ULH1503-I ULO1503-I
Description 15” TFT LCD, 500 nits LED Backlight, 1024x768
size 15”
Display area (mm) 304.100(H) x 228.100(V)
Brightness 500 cd/m²
Resolution 1024x768
Aspect ratio 4:3
Contrast ratio 2400:1
Pixel pitch (mm) 0.297(H) x 0.297(V)
Pixel per inch (PPI) 85
Viewing angle 176°(H),176°(V)
Color saturation (NTSC) 79%
Display colors 16.2M
Response time (Typical) 23ms
Video interface LVDS VGA, DVI-D, HDMI
Input power   DC 12V
Power consumption 5.6W 9.6W
Dimensions (mm) 326.50 x 253.50 x 9.8 329.1x256.2x49
Bezel size (U/B/L/R) 12.700/12.700/11.200/11.200 329.1x256.2x49
Weight (Net) 1.1  kg 2 kg
Mounting   VESA 75x75
OSD key   4 Keys (Power Switch, Menu, +, -)
OSD control   Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Operating temperature -20 ˚C ~ 70 ˚C
Storage temperature -20 ˚C ~ 70 ˚C
