Home / Product / Industrial Display / Ubipixel™-Industrial High Brightness LCDs / 1215-N

Industrial LCD Monitor

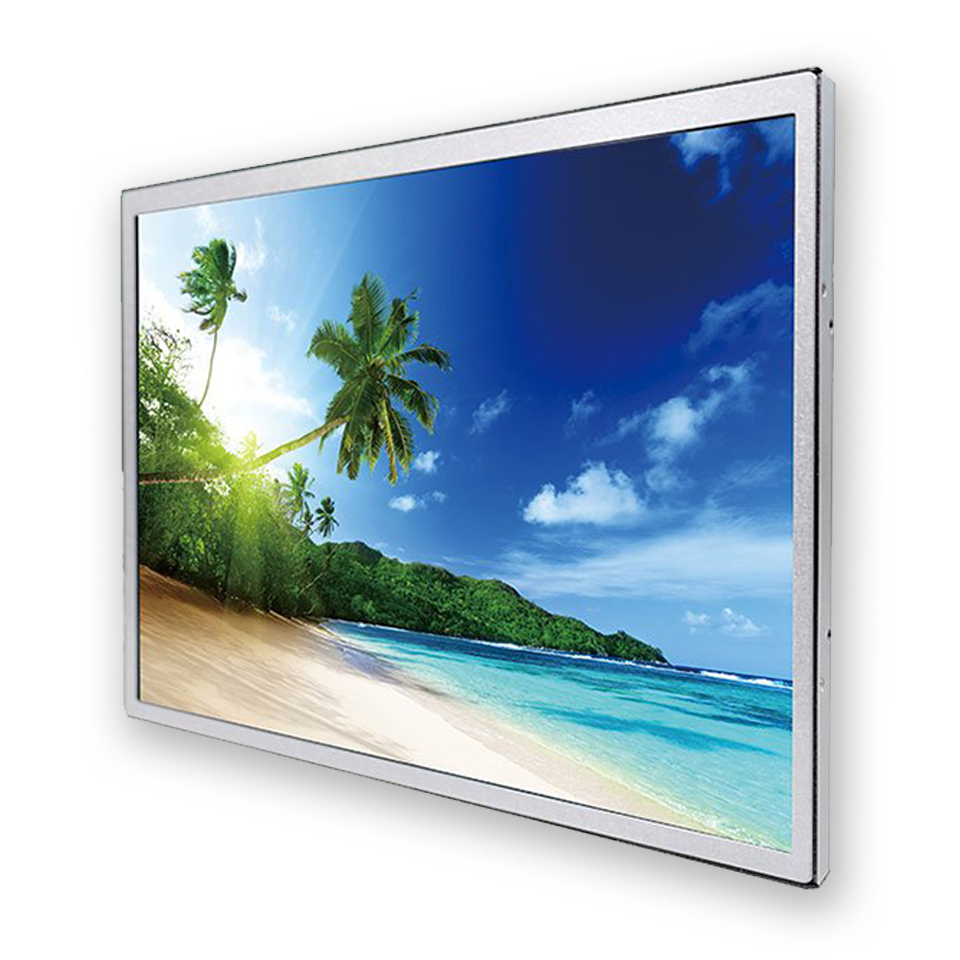

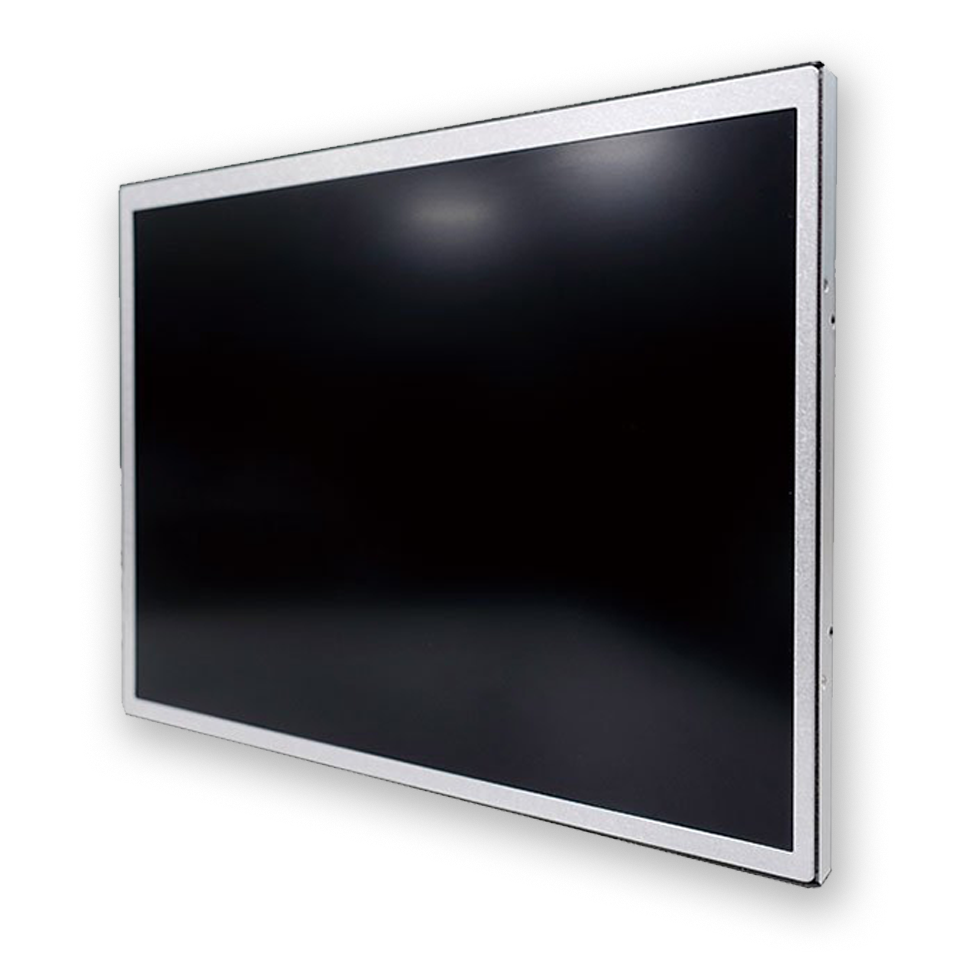

1215-N

12.1” TFT LCD, 1000 nits LED Backlight, 1024x768
  • High Brightness 1000 nits
  • Sunlight Readable
  • Wide Temperature (-20 ˚C ~70 ˚C)
  • Wide Viewing Angle
  • Low Power Consumption
  • BL MTBF: 100,000 hours
PRINT
INQUIRY COMPARE
BUY ONLINE
SPECIFICATION DOWNLOAD
Model Name ULF1215-N ULH1215-N ULO1215-N
Description 12.1” TFT LCD, 1000 nits LED Backlight, 1024x768
size 12.1”
Display area (mm) 245.760(H) x 184.320(V)
Brightness 1000 cd/m²
Resolution 1024x768
Aspect ratio 4:3
Contrast ratio 1000:1
Pixel pitch (mm) 0.24(H) x 0.24(V)
Pixel per inch (PPI) 106
Viewing angle 178°(H),178°(V)
Color saturation (NTSC) 81%
Display colors 16.7M
Response time (Typical) 25ms
Video interface LVDS VGA, DVI-D, HDMI
Input power   DC 12V
Power consumption 11.5W 13.5W
Dimensions (mm) 260.56 x 204.06 x 8.4 263.10 x 206.60 x 47.00
Bezel size (U/B/L/R) 11.300/8.440/8.120/6.680 112.54/9.74/9.42/7.92
Weight (Net) 0.49 kg 1.27 kg
Mounting   VESA 75x75
OSD key   4 Keys (Power Switch, Menu, +, -)
OSD control   Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Operating temperature -20 ˚C ~ 70 ˚C
Storage temperature -20 ˚C ~ 70 ˚C
