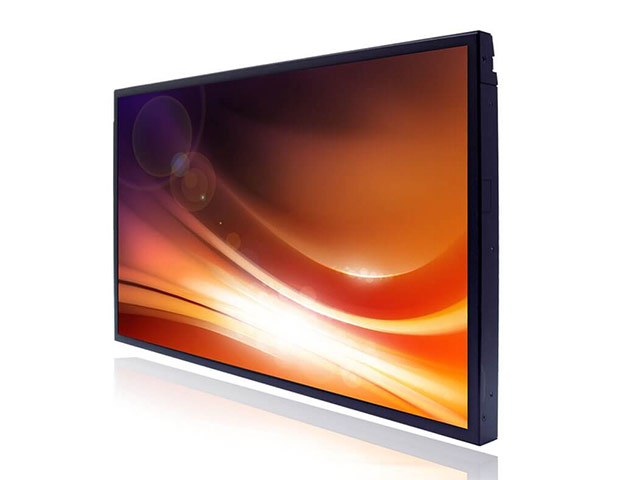

Digital Signage Display
2158-U 2000nits
21.5” TFT LCD, 2000nits, LED Backlight, FHD(1920x1080)
- High Brightness 2000 nits
- Sunlight Readable
- LCD Blackening Defect Free (H-Tni 110˚C)
- Low Power Consumption
- BL MTBF: 100,000 hours
| Model Name | DLF2158-U | DLH2158-U | DLD2158-U |
| Description | 21.5” TFT LCD, 2000 nits LED Backlight, 1920x1080 | ||
| size | 21.5" | ||
| Display area (mm) | 476.64(H) x 268.11(V) | ||
| Brightness | 2000 cd/m² | ||
| Resolution | 1920x1080 | ||
| Aspect ratio | 16:9 | ||
| Contrast ratio | 5000:1 | ||
| Pixel pitch (mm) | 0.24825(H) x 0.24825(V) | ||
| Pixel per inch (PPI) | 102 | ||
| Viewing angle | 178°(H),178°(V) | ||
| Color saturation (NTSC) | 81% | ||
| Display colors | 16.7M | ||
| Response time (Typical) | 25ms | ||
| Panel interface | LVDS | ||
| Input interface | VGA, DVI-D, HDMI | ||
| Input power | DC 12V | ||
| Power consumption | 47.4W | 50.4W | |
| Dimensions (mm) | 497.60 x 292.20 x 13.35 | 500.2 x 294.6 x 36.0 | |
| Bezel size (U/B/L/R) | 12.045/12.045/10.480/10.480 mm | 13.3/13.2/11.8/11.8 mm | |
| Weight (Net) | 1.8 kg | 6.12 kg | |
| Mounting | 75 x 75, 100 x 100 mm | ||
| OSD key | 4 keys (Power switch, menu, +, -) | ||
| OSD control | Brightness, Color, Contrast, Auto Turing, H/V Position…etc | ||
| Operating temperature | 0 ˚C ~ 60 ˚C | ||
| Storage temperature | -20 ˚C ~ 60 ˚C | ||
