Home / Product / Industrial Display / Durapixel™ - Sunlight Readable LCDs / DLF-DLH-1040-I

Digital Signage Display

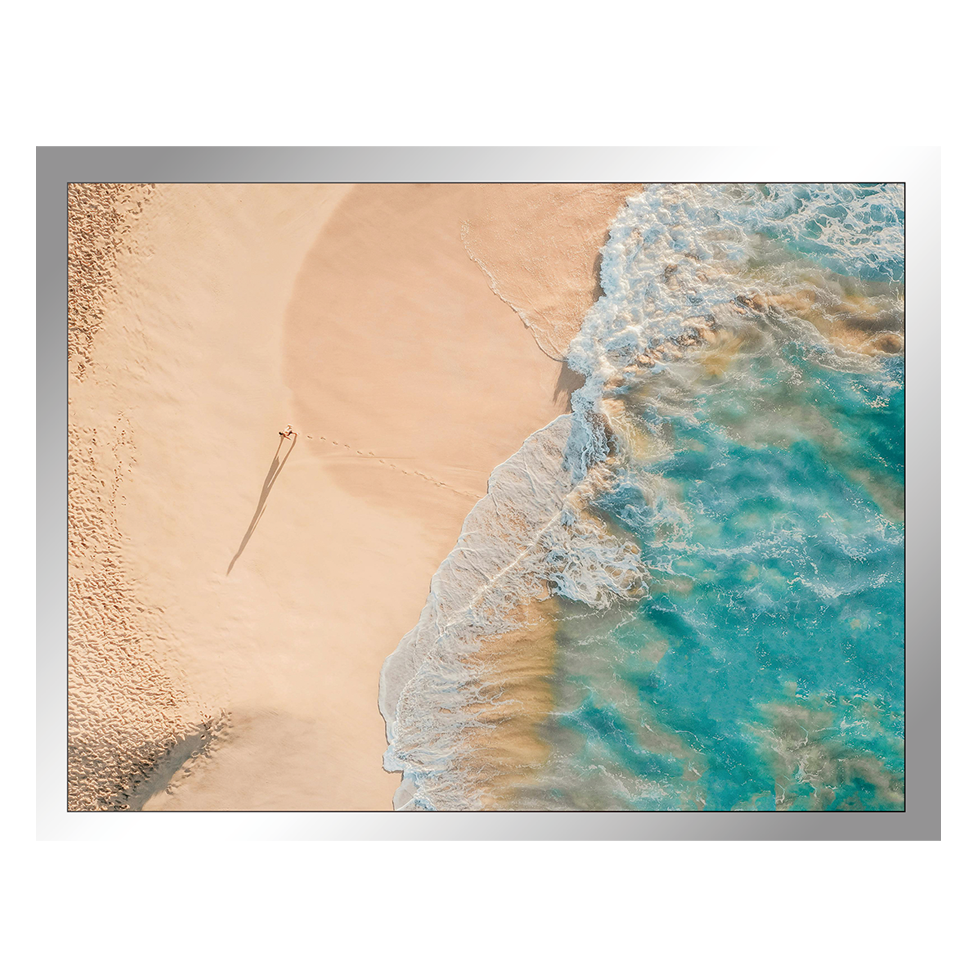

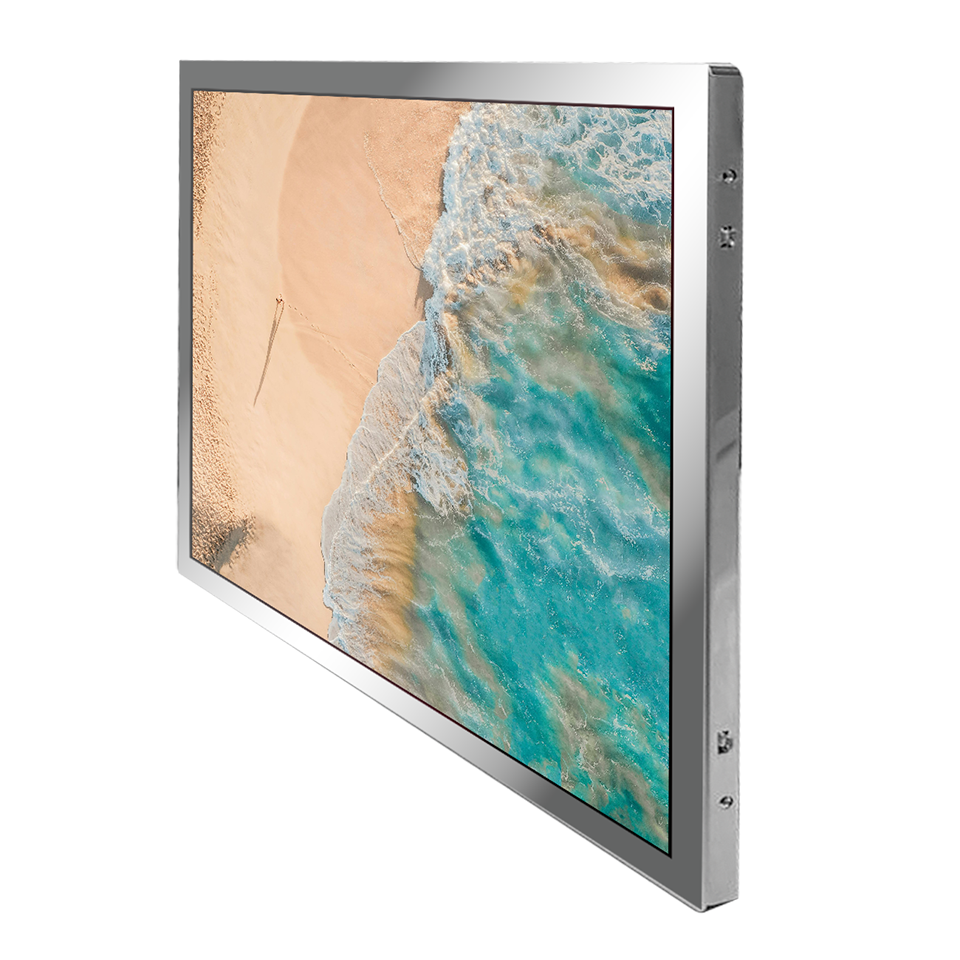

DLF-DLH-1040-I

10.4” TFT LCD, 2000 nits LED Backlight, 1024x768
  • 10.4”sunlight readable, high brightness
  • Resolutions: 1024x768
  • LED Backlight
  • Aspect ratio of 4:3
  • Wide temperature (-30℃~80℃)
  • Low power consumption
  • BL MTBF: 100,000 hours
PRINT
INQUIRY COMPARE

Main Features

  • Sunlight Readable

  • MTBF 100K

  • Low Power Consumption

INTRODUCTION SPECIFICATION Download
The DLF/DLH1040-I is a 10.4 inch industrial grade sunlight readable LCD, with high brightness 2000 nits, it produces sharp images, crisp text and lifelike colors. The Durapixel LED backlight technology ensures high reliability and low power consumption, suitable for outdoor application, kiosk, factory automation, military, transportation and gaming application.
Model Name DLF/DLH1040-I
 Description 10.4” TFT LCD, 2000nits LED Backlight, 1024x768
Screen Size 10.4”
 Display Area (mm) 210.432 (H) x 157.824(V) mm
 Brightness 2000 cd/m2
 Resolution 1024x768
 Aspect Ratio  4 : 3
Contrast Ratio  1300 : 1
 Pixel Pitch (mm) 0.2055(H) x 0.2055(V)
Pixel Pre Inch (PPI) 123
Viewing Angle (Min.) 178°(H),178°(V)
Color Saturation (NTSC) 76%
Display Colors 16.7M
Response Time (Typical) 25ms
Panel Interface LVDS
Input Interface HDMI, DP
 Input Power DC 12V
Power Consumption 9W (12W with AD Board)
OSD Key 4 Keys (Power Switch, Menu, +, -)
OSD Control Brightness, Color, Contrast, H/V Position…etc
Dimensions (mm) 228.43 x 175.97 x 8.75 (T)
Bezel Size(U/B/L/R) 9.0/9.0/9.0/9.0 mm
Weight (Net) 0.8 kg
Operating Temperature -30℃ ~ 80℃
Storage Temperature -30℃ ~ 80℃
