Transportation Panel PCs

ITRP-2845-EHL1

28" EN50155 Railway Full IP65 Fanless Panel PC
  • Intel® Elkhart Lake Atom®/ Celeron® support
  • EN50155 / EN45545
  • 28" LCD, 1920 x 360, 1000 nits

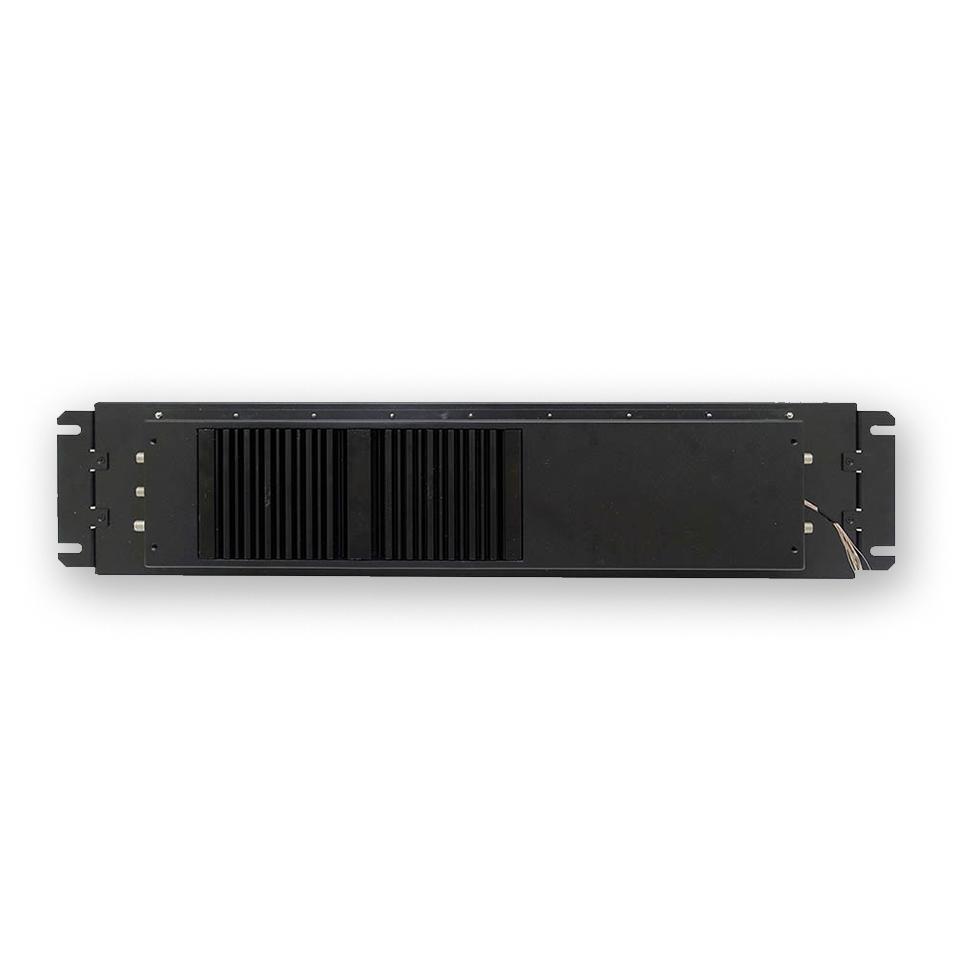

  • Full IP65 and fanless design
  • Support 17~31V or 34~62VDC or 67~143V input with M12
    connector
  • Anti- Shock and vibration
  • LCD blacking detect free (H Tni 110°C)
IMPRIMER
DEMANDE COMPARER

Principales caractéristiques

  • Transportation

  • M12 Connectors

  • Full IP65

  • Fanless

  • EN50155

INTRODUCTION Spécifications TÉLÉCHARGER

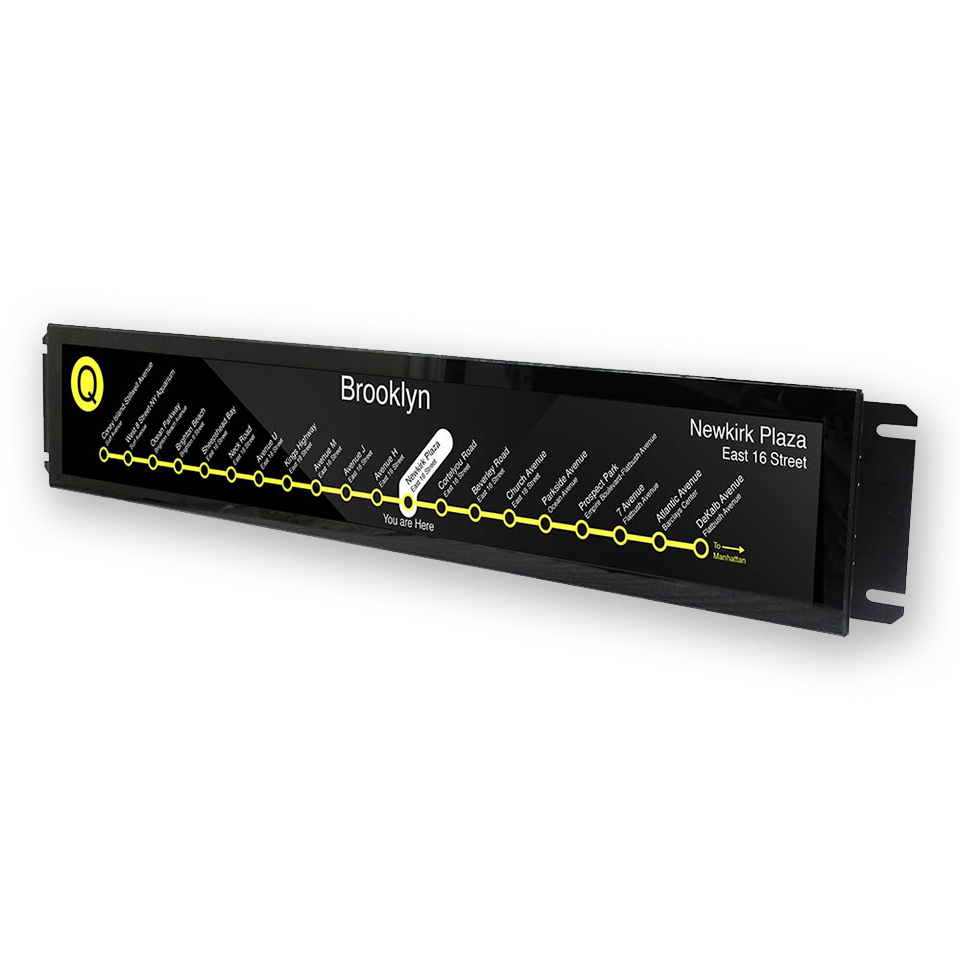

The ITRP-2845-EHL1 is a 28-inch stretched LCD Passenger Information System designed for railway applications. Featuring 1920x360 resolution and 1000 nits brightness, it ensures clear visibility of real-time passenger information.
Powered by Intel® Elkhart Lake Atom®/Celeron® processors, it combines low power consumption with reliable performance. With EN50155 certification, full IP65 fanless design, and anti-shock/vibration protection, it is built for harsh railway environments.
Supporting wide DC input ranges (17–31V, 34–62V, 67–143V with M12 connector) and HiTni 110°C panel technology to prevent blackening, the ITRP-2845-EHL1 delivers durability and stability for 24/7 operation in trains and trams.
Model Name ITRP-2845-EHL1

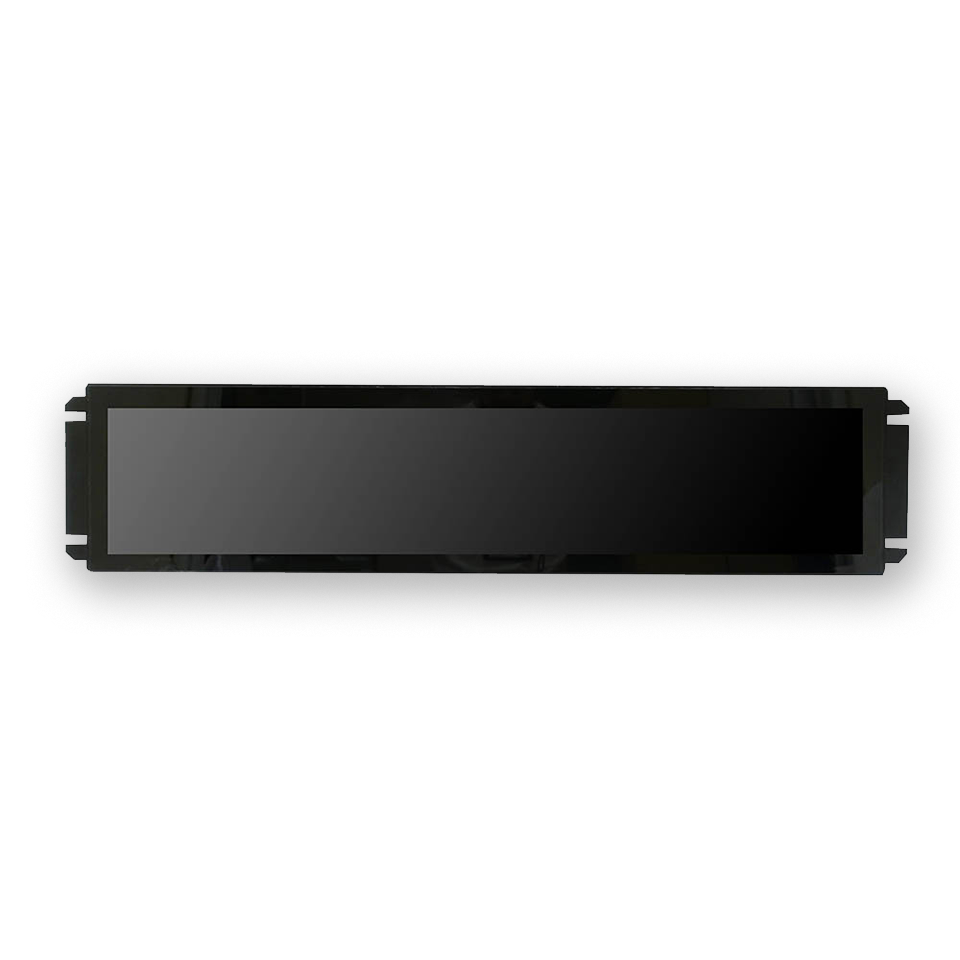

 Description 28”Resizing TFT LCD
 Brightness 1000 cd/m2
 Resolution  1920x360
Contrast Ratio  3000 : 1
 Pixel Pitch (mm)  0.3637(H) x 0.3637(V)
 Viewing Angle  178°(H),178°(V)
Processor Atom® x6413E (1.5GHz/3.0GHz,QC,16EU, 9W
Celeron® J6412 (2.0GHz/2.6GHz, QC, 16EU, 10W)
 Chipset Intel® Elkhart Lake SoC integrated
System I/O 2x HMDI, 2 x USB 2.0(1port), 1 x LAN,
1xCOM+DIO(1port), 1xPWR

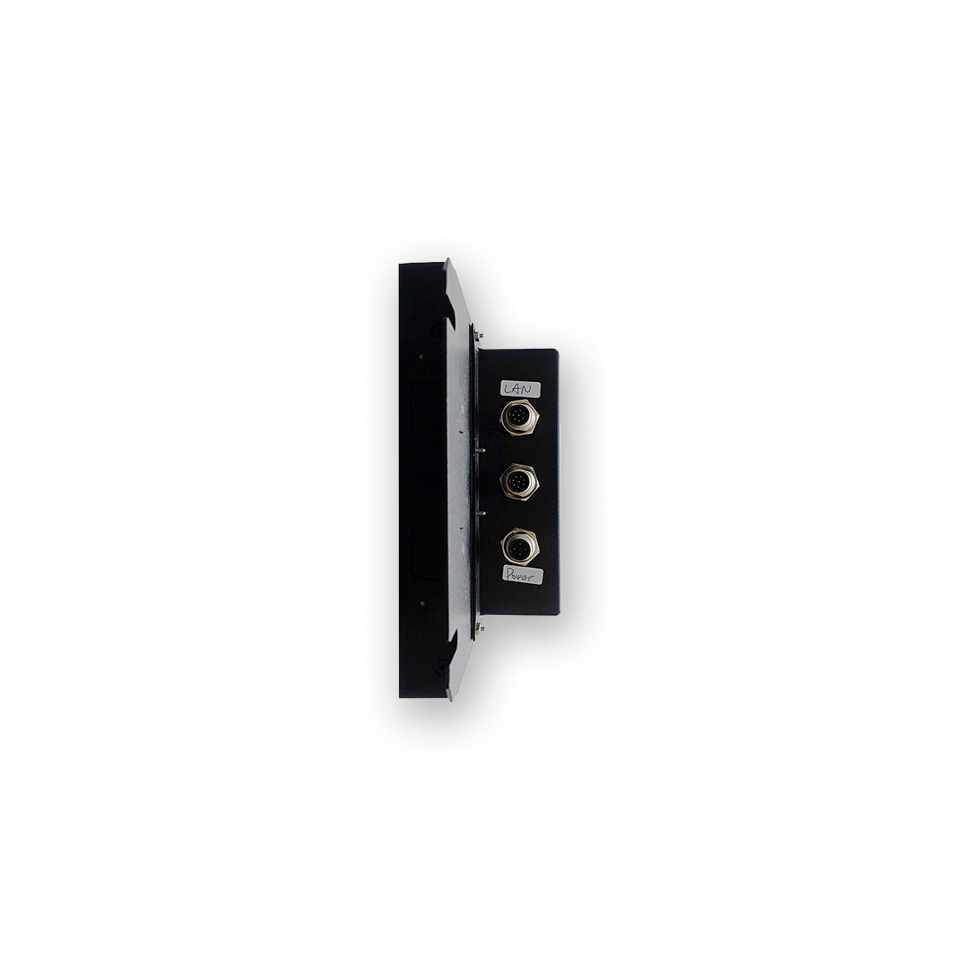

Connector Type: M12
Storage support 2x HMDI, 2 x USB 2.0(1port), 1 x LAN
,1xCOM+DIO(1port), 1xPWR
Connector Type: M12
OS Support Win10, Linux
Power supply DC17~31V input, M12 connector (DC 34~62V
or DC 67~143 optional)
 Glass 3mm Tempered Glass
Power Consumption 50W
 IP Level Full IP65

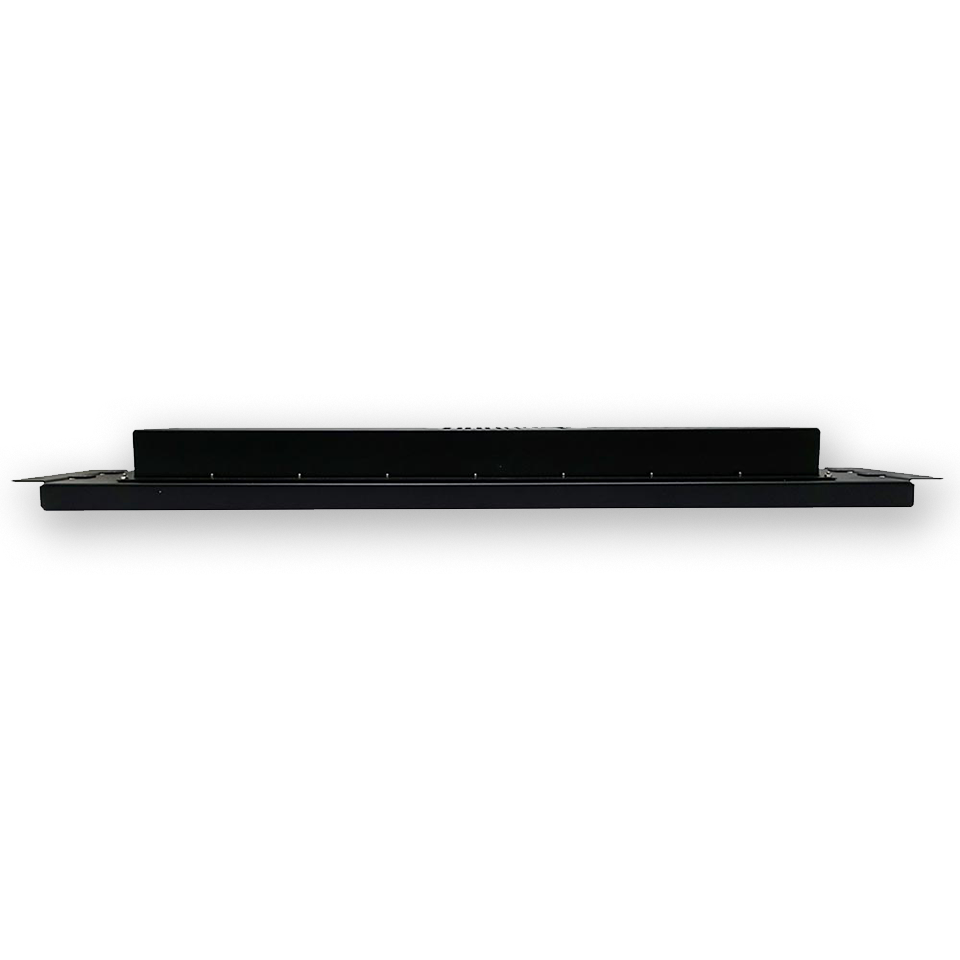

 Dimensions (mm) 816mm(W) x 71.55 mm(D) x 179.1 mm(H)
Weight (Net) 7.5kg
 Operating Temperature EN50155 T3 ; -25°C ~ 70°C
 Storage Temperature -40°C ~ 80°C
Vibration,Shock EN50155
