Transportation Panel PCs

IPPS-4851-APL9

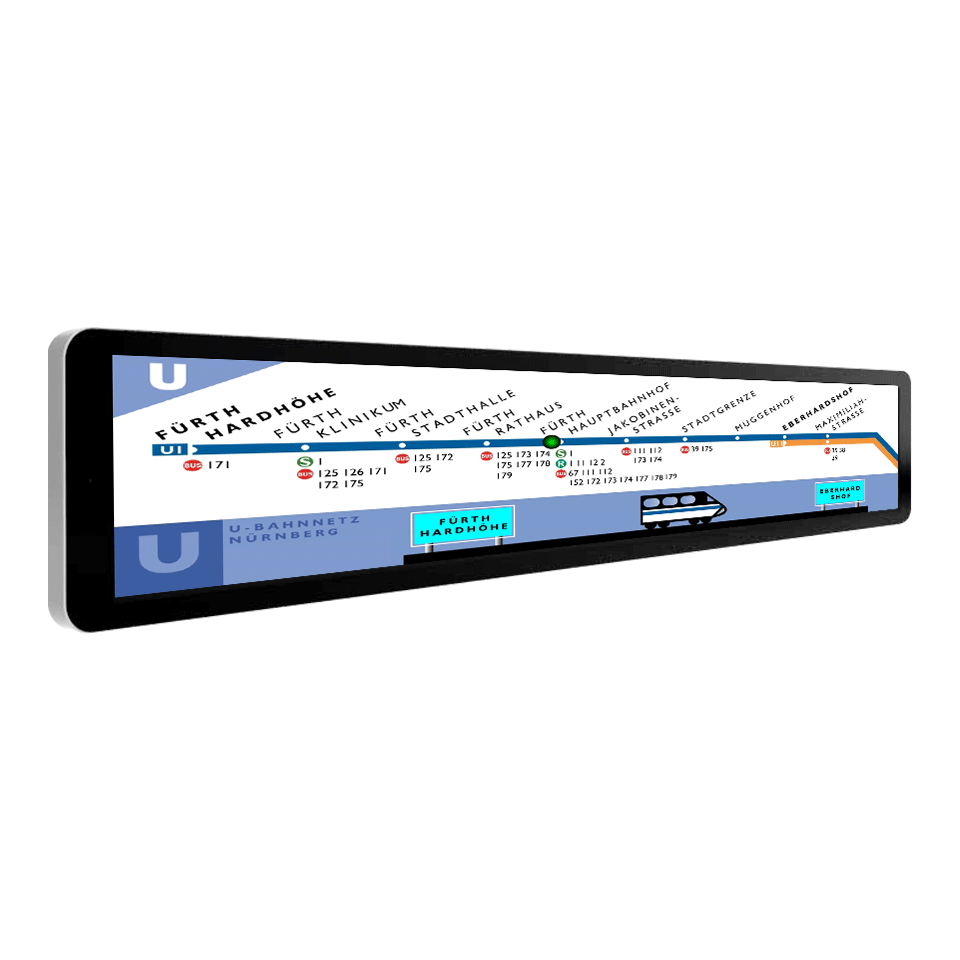

48" High Brightness Outdoor Display Panel PC
  • Intel@ Apollo Lake Atom@ SoC
  • 48.5" 1920x360, 3000nit
  • HiTni Panel Allow Direct Sunlight
  • Auto DLS Dimming/ with IR remote controller
  • 3mm AG Glass with Waterproof Full Flat Design
  • UVIR Film for Outdoor harsh environment
  • Display Thickness 25mm; 1.5mm Slim Border
  • AC110/220V; DC9-36; DC110V input (optional)
IMPRIMER
DEMANDE COMPARER

Principales caractéristiques

  • Transportation

  • Sunlight Readable

  • Front Panel IP65

INTRODUCTION Spécifications TÉLÉCHARGER
The IPPS-4851-APL9 is a fanless 48.5" bar-type outdoor Panel PC, built for passenger information and digital signage in tough environments. With 1920x360 resolution and 3000 nits brightness, it delivers clear visibility even under direct sunlight.

Powered by Intel® Atom® Apollo Lake SoC, it combines rugged durability with energy-efficient fanless design. The IP65 front, full-flat waterproof panel, 3mm anti-glare glass, and UV/IR protection film ensure long-lasting performance outdoors.

At only 25mm thick with a 1.5mm slim border, the display offers a sleek design that fits seamlessly into vehicles, kiosks, and outdoor installations. It supports AC 110/220V, DC 9–36V, and optional DC 110V input, plus auto dimming with IR remote control for ease of use.
Model Name IPPS-4851-APL9
 Description 48”Resizing TFT LCD
 Brightness 3000 cd/m2
 Resolution  1920x360
Contrast Ratio  7700 : 1
 Pixel Pitch (mm)  0.63(H) x 0. 63(V)
 Viewing Angle  178°(H),178°(V)
Processor Intel® Celeron® N3350 DC 1.1GHz (6W)
Intel® Pentium® N4200 QC 1.1GHz (6W)
Intel® Atom® x7 E3950 QC 1.6GHz (12W)
Intel® Atom® x5 E3940 QC 1.3GHz (9.5W)
Intel® Atom® x3 E3930 QC 1.3GHz (6.5W)
 Chipset Intel® Apollo Lake integrated
System I/O 1 x HDMI, LAN, COM, 4USB2.0 port w/ M12 Connector
Storage support  1 xmSATA SSD
OS Support Win10 IOT, Linux
 Input Power DC 17~31V \34~63V/ 67~143V input
 Glass 3mm Tempered Glass
Power Consumption 100-110W
 IP Level Front IP65
 Dimensions (mm) 1304.6 x 249 mm
Weight (Net) 17 KG
 Operating Temperature 0 ˚C ~ 50 ˚C
 Storage Temperature  -20˚C ~ 60 ˚C
