Transportation Panel PCs

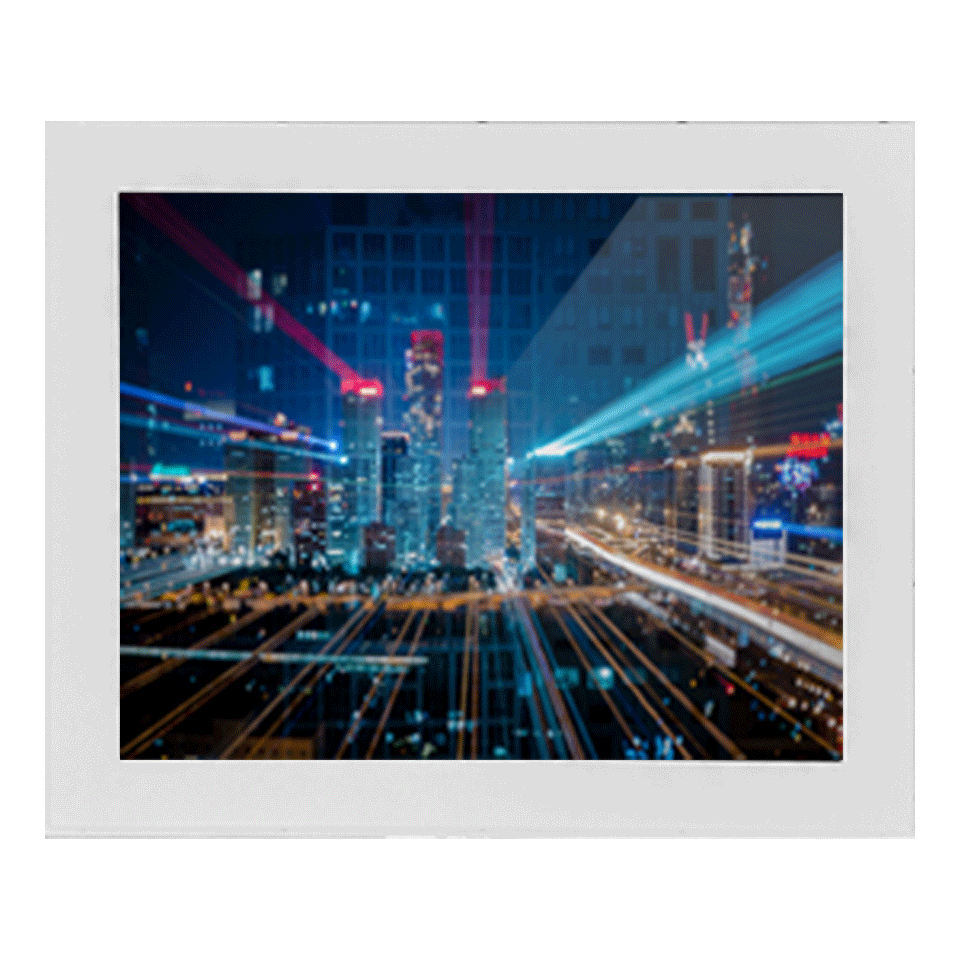

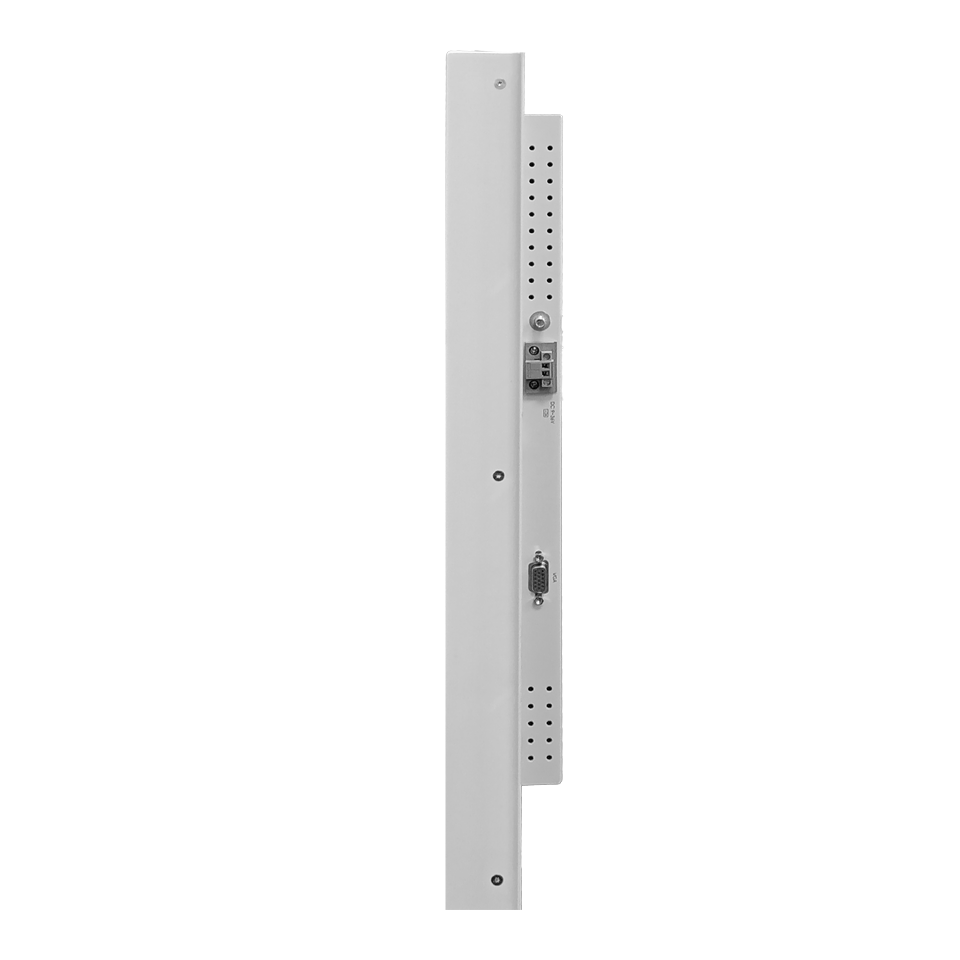

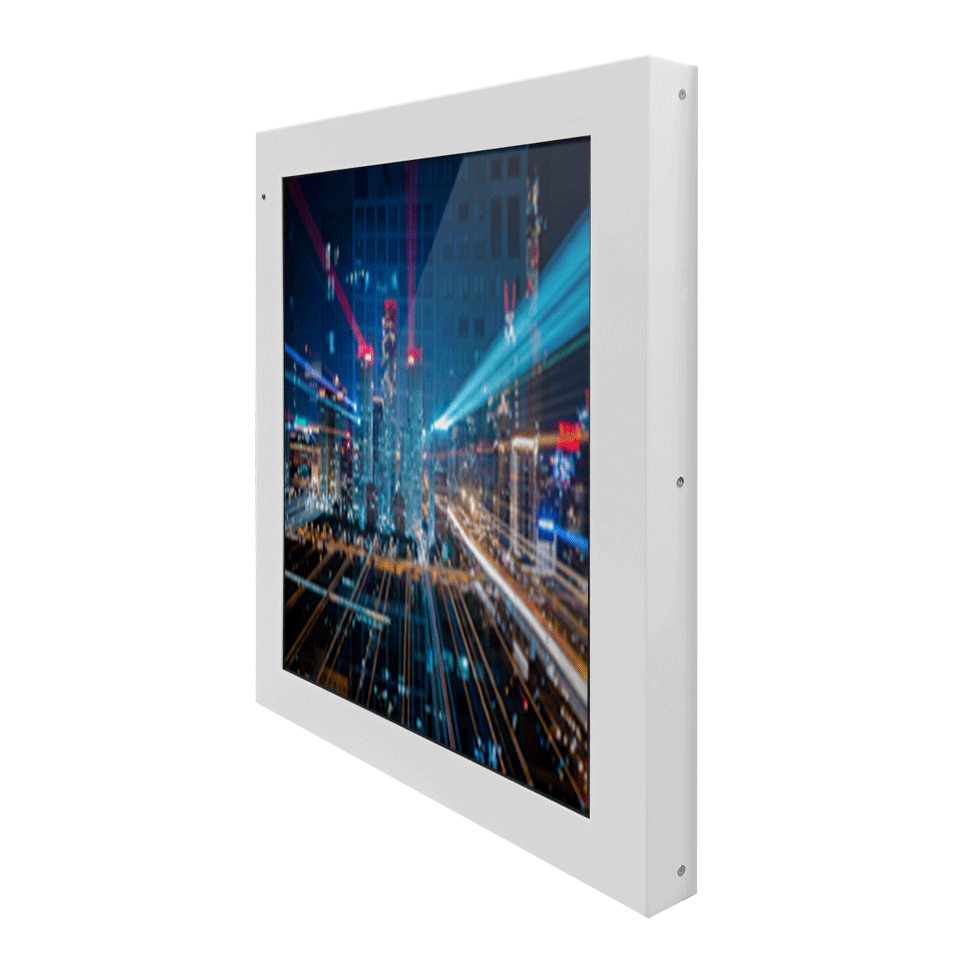

DPD1968-UPB-Q01

DPD1968-UPB-Q01 19"TFT LCD , 500 nits LED Backlight, 1280x1024
  • High Brightness 500 nits
  • EN50155
  • Digital light sensor
  • Wide Tempe rature (30˚C ~ 85˚C)
  • Low Power Consumption
  • BL MTBF: 100,000 hours
IMPRIMER
DEMANDE COMPARER

Principales caractéristiques

  • Transportation

  • Sunlight Readable

  • EN50155

  • Digital Signage

INTRODUCTION Spécifications TÉLÉCHARGER
The DPD1968-UPB-Q01 is a 19 inch industrial grade sunlight readable LCD, with high brightness 500 nits and
high color saturation, it produce s sharp images, crisp text and lifelike colors. The Durapixel LED backlight
technology ensures high reliability and low power consumption, suitable for outdoor application, kiosk,
factory automation, military, transportation and gaming application.
Model Name DPD1968-UPB-Q01
 Description 19”TFT LCD, 500 nits LED Backlight, 1280 x1024
Screen Size 19”
 Display Area (mm) 376.32(H) x 301.06(V)
 Brightness 500 cd/m2
 Resolution  1920x1024
 Aspect Ratio  5 : 4
Contrast Ratio  1000 : 1
 Pixel Pitch (mm)  0.294(H) x 0. 294(V)
 Viewing Angle  170°(H), 160°(V)
Color Saturation (NTSC) 80%
Display Colors 16.7M
Response Time (Typical) 10ms
Panel Interface LVDS
AD Board Input Interface VGA
Input Power DC 9~36V
Power Consumption 13W
OSD Key 4 Keys (Power Switch, Menu, +, -)
OSD Control Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Dimensions (mm) 485 x 410 x 60 mm
Bezel Size(U/B/L/R) 54.47/54.47/54.34/54.34 mm
Weight (Net) 3 KG
 Operating Temperature -30˚C ~ 85˚C
 Storage Temperature  -30˚C ~ 85 ˚C
Certification EN50155
