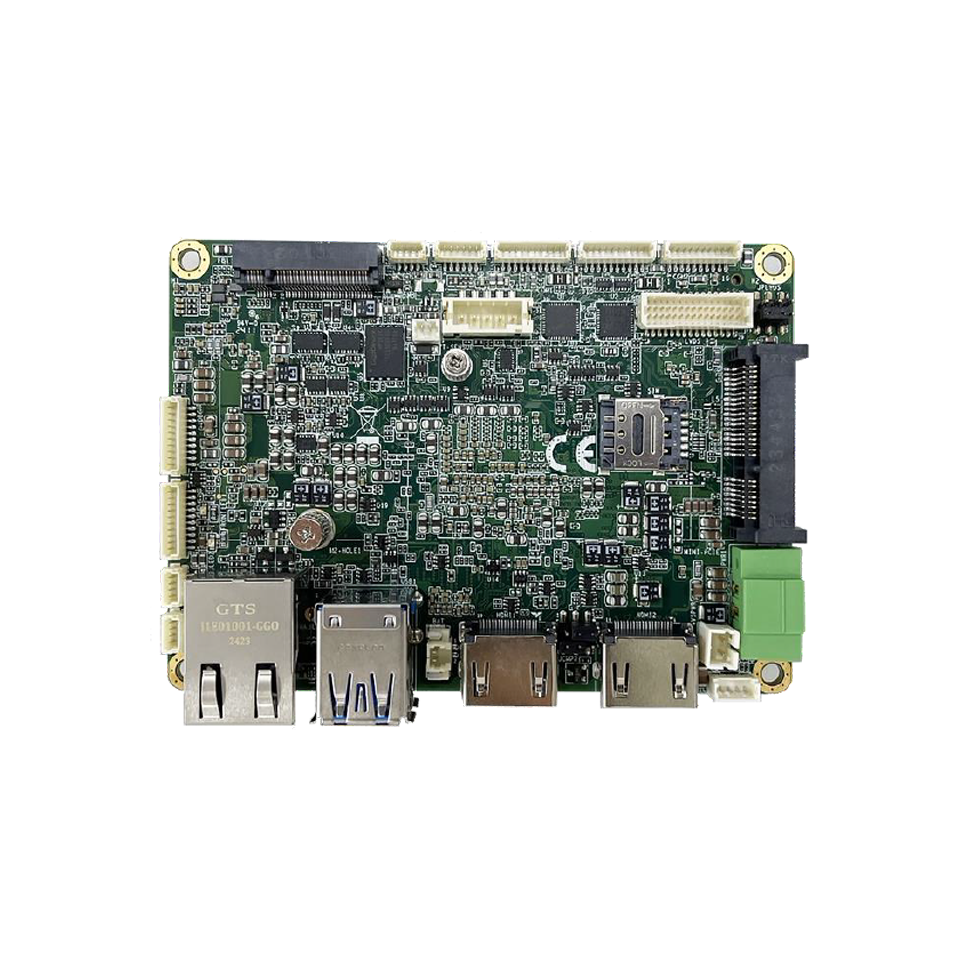

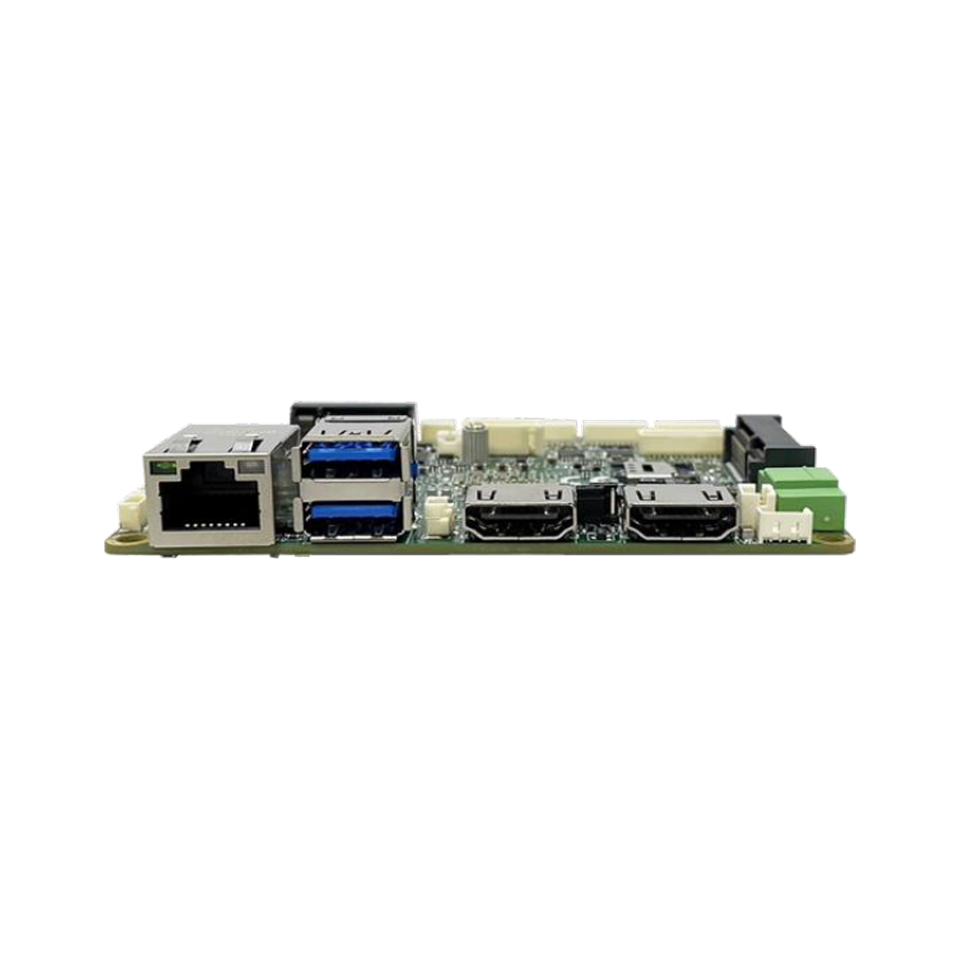

APIX-EHL3

Intel® Atom®/ Pentium®/ Celeron® Series SoC based 2.5"
Embedded Board with 2 HDMI /2 LVDS, SATA III, 2 COM, 6
USB, Dual Intel® GbE LAN.
▪ Intel® Elkhart Lake Atom®/ Celeron® series SoC on board
▪ One 260-pin SO-DIMM up to 32GB DDR4 3200MT/s SDRAM
▪ Multi-Display Support
▪ One 2.5 Gigabit Ethernet support
▪ 2xHDMI, 2xUSB 3.0, 2xUSB 2.0, 2xCOM,
▪ 1 x Fullsize Mini-PCIe 、1 x B+M-Key 3042
▪ EuP/ErP 2013 Ready, DC-IN 12V
▪ Support dTPM v2.0 (optional)
IMPRIMER
DEMANDE COMPARER

Principales caractéristiques

  • Multi Display

  • Fanless

Spécifications TÉLÉCHARGER

Télécharger
