Accueil / Produit / Affichage industriel / Custom LCD Displays / SSD3205-A

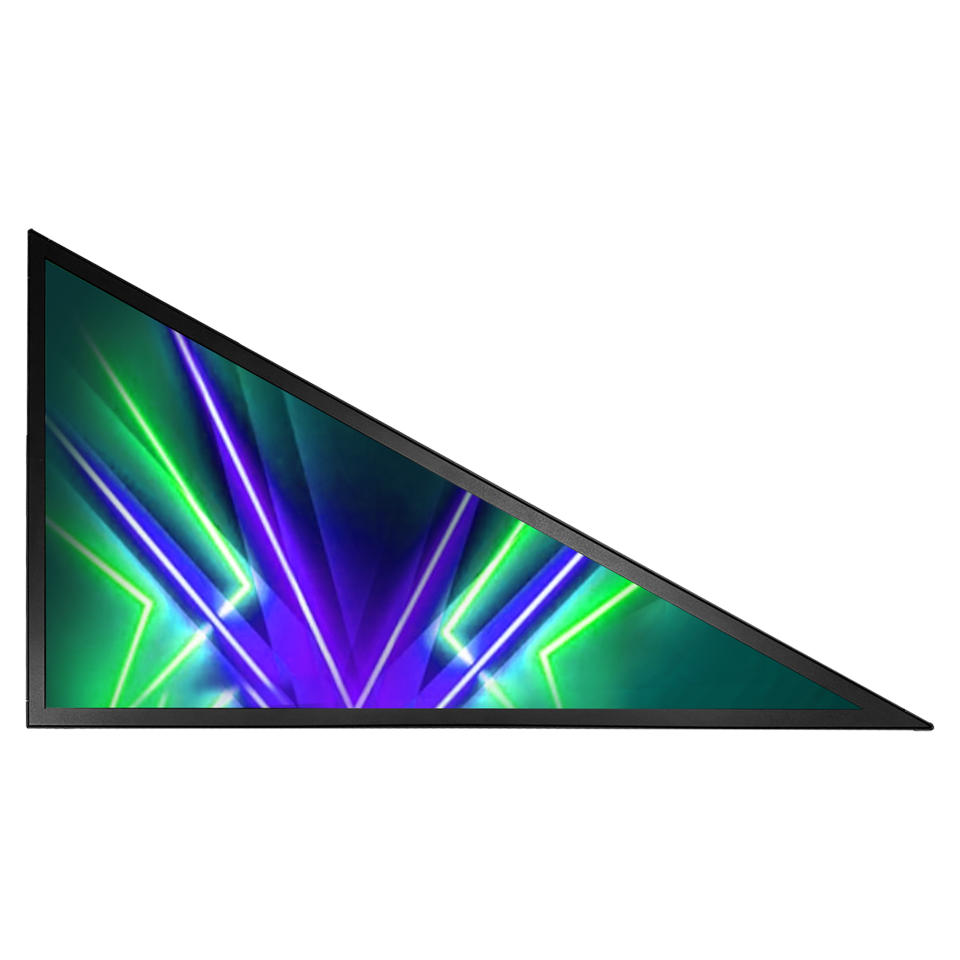

SSD3205-A

▪ Triangle Display
▪ Brightness 1000 nits
▪ High Color Saturation 94%
▪ Viewing Angle of 178°(H), 178°(V)
▪ LED Backlight
▪ Low Power Consumption
▪ BL MTBF: 100,000 hours
IMPRIMER
DEMANDE COMPARER

Principales caractéristiques

  • aftermarket

  • dashboard

  • HMI

  • ESG

  • High Performance

  • Wide Temp

  • Wide Viewing Angle

INTRODUCTION Spécifications TÉLÉCHARGER
Le SSD3205-A est un écran TFT-LCD couleur de 32 pouces avec un format d’image spécial 16:9 et une résolution étendue de 1920 x 1080. Il fait partie de la série Spanpixel de Litemax, conçue pour offrir une haute luminosité de 1000 nits grâce à un rétroéclairage LED à faible consommation d’énergie.
Cet écran LCD, doté de formats spécifiques et lisible en plein soleil, est idéal pour les applications de signalisation numérique, transports publics, halls d’exposition, grands magasins et distributeurs automatiques.
Model Name SSD3205-A
 Description 32” TFT LCD, 1000nits LED Backlight, 1920x1080, MaxRGB, Triangle Display
Screen Size 32”
 Display Area (mm) 698.4(H) x 392.85(V)
 Brightness 1000 cd/m2
 Resolution 1920x1080
 Aspect Ratio  16 : 9
Contrast Ratio  4900 : 1
 Pixel Pitch (mm) 0.36375(H) x 0.36375 (V)
 Viewing Angle  178°(H),178°(V)
Color Saturation (NTSC) 94%
Display Colors 16.7M
Panel Interface LVDS
Input Interface HDMI, DP
Input Power DC12V
Power Consumption 37W
OSD Key 4 Keys (Power Switch, Menu, +, -)

Télécharger
