Accueil / Produit / Affichage industriel / Durapixel™ - Sunlight Readable LCDs / 2158-U 2000nits

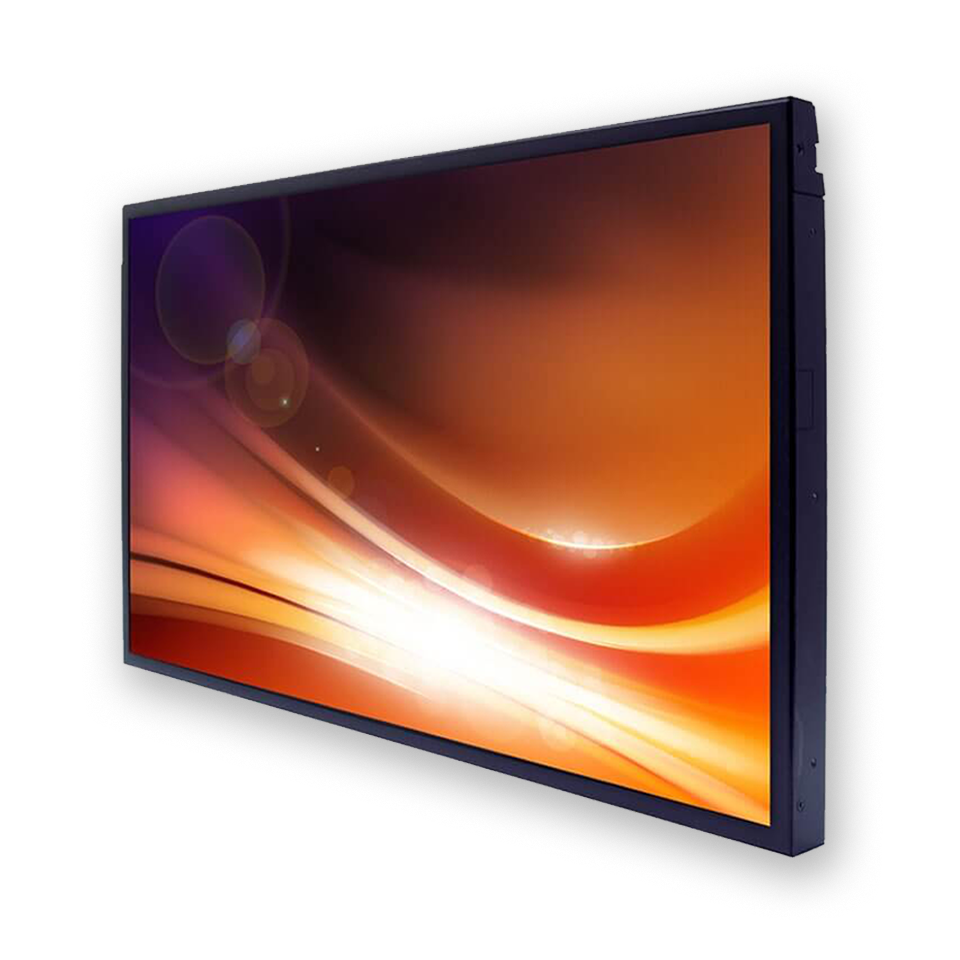

Digital Signage Display

2158-U 2000nits

21.5” TFT LCD, 2000nits, LED Backlight, FHD(1920x1080)
  • High Brightness 2000 nits
  • Sunlight Readable
  • LCD Blackening Defect Free (H-Tni 110˚C)
  • Low Power Consumption
  • BL MTBF: 100,000 hours
IMPRIMER
DEMANDE COMPARER

Principales caractéristiques

  • Sunlight Readable

  • MTBF 100K

  • Low Power Consumption

  • Blackening Defect Free

INTRODUCTION Spécifications TÉLÉCHARGER
The 2158-U 2000 nits is a 21.5 inch industrial grade sunlight readable LCD, with high brightness 2000 nits, it produces sharp images, crisp text and lifelike colors. The Durapixel LED backlight technology ensures high reliability and low power consumption, suitable for outdoor application, kiosk, factory automation, military, transportation and gaming application.
Model Name DLF2158-U DLH2158-U DLD2158-U
Description 21.5” TFT LCD, 2000 nits LED Backlight, 1920x1080
size 21.5"
Display area (mm) 476.64(H) x 268.11(V)
Brightness 2000 cd/m²
Resolution 1920x1080
Aspect ratio 16:9
Contrast ratio 5000:1
Pixel pitch (mm) 0.24825(H) x 0.24825(V)
Pixel per inch (PPI) 102
Viewing angle 178°(H),178°(V)
Color saturation (NTSC) 81%
Display colors 16.7M
Response time (Typical) 25ms
Panel interface LVDS
Input interface VGA, DVI-D, HDMI
Input power DC 12V
Power consumption 47.4W 50.4W
Dimensions (mm) 497.60 x 292.20 x 13.35 500.2 x 294.6 x 36.0
Bezel size (U/B/L/R) 12.045/12.045/10.480/10.480 mm 13.3/13.2/11.8/11.8 mm
Weight (Net) 1.8 kg 6.12 kg
Mounting   75 x 75, 100 x 100 mm
OSD key 4 keys (Power switch, menu, +, -)
OSD control Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Operating temperature 0 ˚C ~ 60 ˚C
Storage temperature -20 ˚C ~ 60 ˚C

Télécharger
