NVIDIA AI Solutions

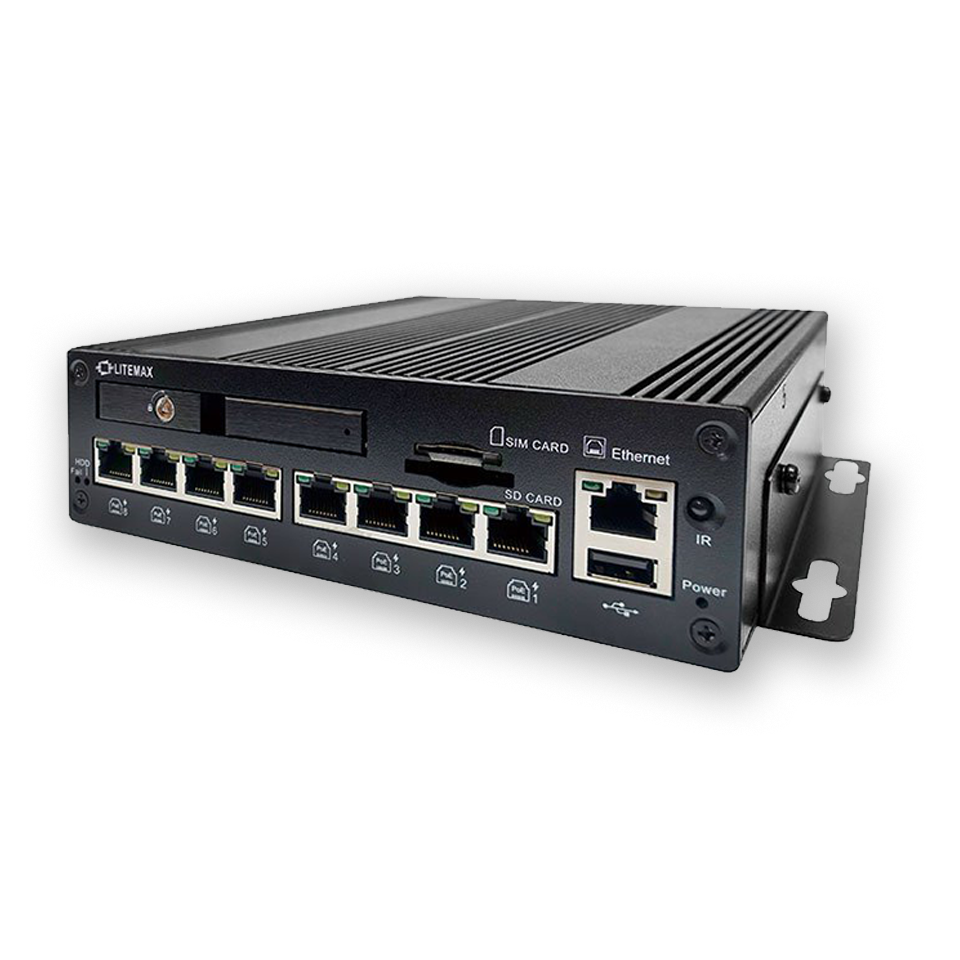

IBOX-JSX0

AI computing platform based on NVIDIA® Jetson Xavier NX for AIoT edge computing applications
  • NVIDIA® Jetson Xavier NX with Volta™ GPU architecture with 384 NVIDIA CUDA® cores
  • High AI computing performance for GPU-accelerated processing
  • Supports Ethernet x 9 ports (PoE x 8, GbE x 1)
  • Supports ONVIF 2.0, 2MP IP camera up to 8 channels
  • Wide operating temperature from -20°C to +65°C
  • JetPack supported
Drucken
Anfrage Vergleich

Main Features

  • PoE Ports

  • AI

Spezifikationen DOWNLOAD
Model name IBOX-JSX0
System
CPU 6-core NVIDIA Carmel Arm®v8.2 64-bit CPU 6MB L2 + 4MB L3
GPU NVIDIA Volta with 384 NVIDIA CUDA Cores
System memory LPDDR4 8GB-128bit on board
Flash 16Gb of eMMC
I/O
USB USB 2.0 x 1, USB 3.0 x 1
COM 2 x COM (RS-232 x 1, RS485 x 1)
LAN 9 (PoE x 8, GbE x 1)
Display 1 x HDMI, 1 x VGA
Audio 1 x RCA input, 1 x RCA output
Storage Support
HDD 1 x SSD
Expansion
Mini-PCIe 2 (1 x full-size, half-size x 1)
Power
Power supply DC 9-36V (with ignition pin)
Environmental
Operating Temperature -20°C ~ 65°C
Storage Temperature -20°C ~ 85°C
Relative Humidity 95% @ 40°C (non-condensing)
Mechanical
Construction Aluminum extrusion and heavy-duty steel
Standard color Black
Weight 1.8 kg
Dimensions 156.6mm(W) x 183.3mm(D) x 50.5mm(H)
