Heim / Produkte / Industrial Computing / Embedded Box PCs / Entry BOX PC / IBOX-BSW1 D TYPE

Entry BOX PC

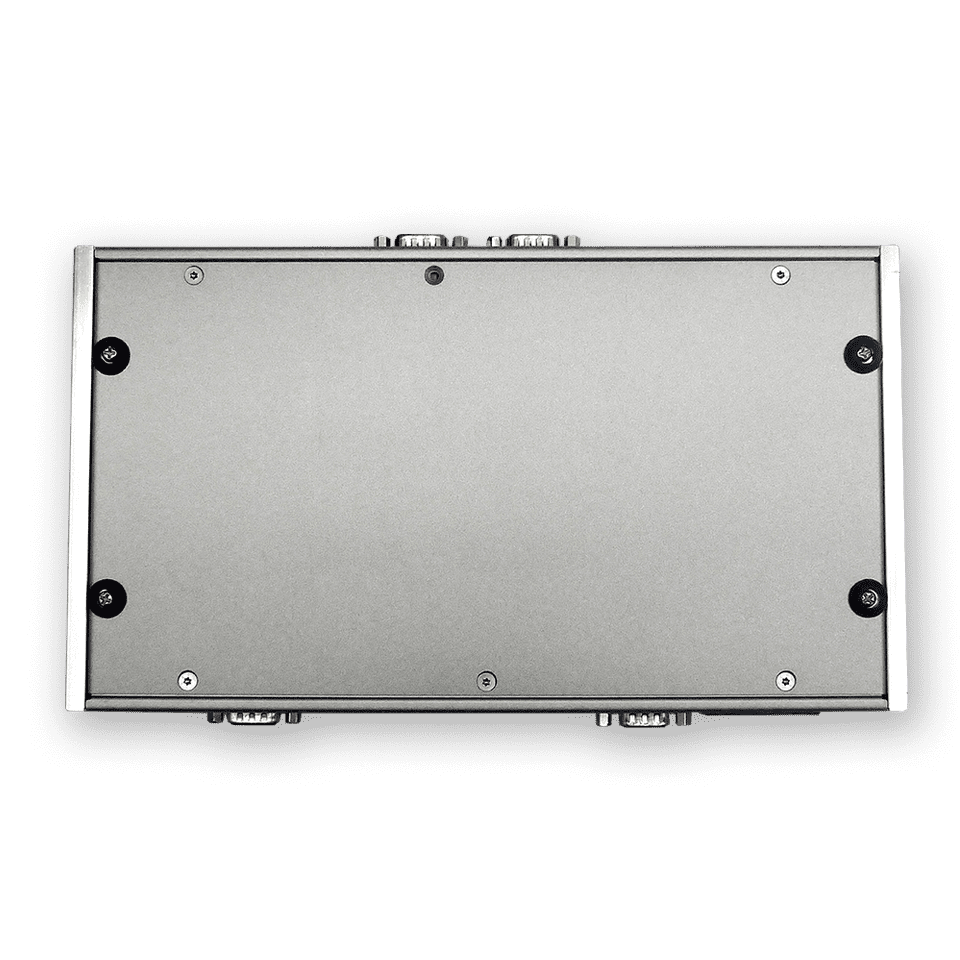

IBOX-BSW1 D TYPE

Fanless Box system with Intel® Pentium®/Celeron® (Braswell) Processor, HDMI/DP, 4 USB, 2 GbE LAN
  • Intel® Pentium®/Celeron® (Braswell SoC) onboard processor
  • Dual display: HDMI/DP
  • 1 HDMI, 1 DP, 4 USB, 3 COM, 2 LAN ,1 DIO , 1 AUDIO
  • DC 9 ~ 36V input with phoenix connector
  • Wide temperature: -20°C ~ 60°C
  • Watchdog timer
Drucken
Anfrage Vergleich

Main Features

  • Wide DC-in 9-36V

  • Fanless

Spezifikationen DOWNLOAD
Model name IBOX-BSW1 D TYPE
System
CPU Intel® Braswell SoC onboard
Intel® Pentium® N3710 1.6GHz quad-core SoC (6W)
Intel® Celeron® N3160 1.6GHz quad-core SoC (6W)
Intel® Celeron® N3060 1.6GHz dual-core SoC (6W)
Intel® Celeron® N3010 1.04GHz dual-core SoC (4W)
Chipset Intel® N3000 series SoC
BIOS AMI SPI Flash ROM
System memory 1 x 204-pin DDR3L 1600MHz SDRAM; max. up to 8GB
Graphic Intel® HD Gen. 8-KP graphics
Watchdog timer Yes
I/O
USB 2 x USB 3.0, 2 x USB 2.0
COM 3 x COM(2 x RS232, 1 x RS232/ 422/485, RS485 with auto flow control)
LAN 2
Display 1x HDMI, 1 xDP
Audio Mic-in, Line-in, Line-out
PS/2 N/A
Others 1 x DIO, 2 x SMA hole
Storage Support
HDD 1 x 2.5" HDD
M.2 N/A
mSATA 1 (with Mini-PCIe)
Expansion
Mini-PCIe 2 (1 x Half-size, 1 x Full-size w/ mSATA)
M.2 N/A
Power
Power supply Wide range DC 9 ~ 36V input, Phoenix connector
Environmental
Operating Temperature 0°C ~ 60°C (Optional -20°C, -40°C
Storage Temperature -20°C ~ 80°C
Relative Humidity 0% ~ 90% (non-condensing)
Mechanical
Construction Aluminum extrusion and heavy-duty steel
Standard color Silver
Mounting Wall mount/ VESA100
Weight 1.77 kg
Dimensions (W)x(D)x(H)mm 261mm(W) x 146mm(D) x 40.5mm(H)
