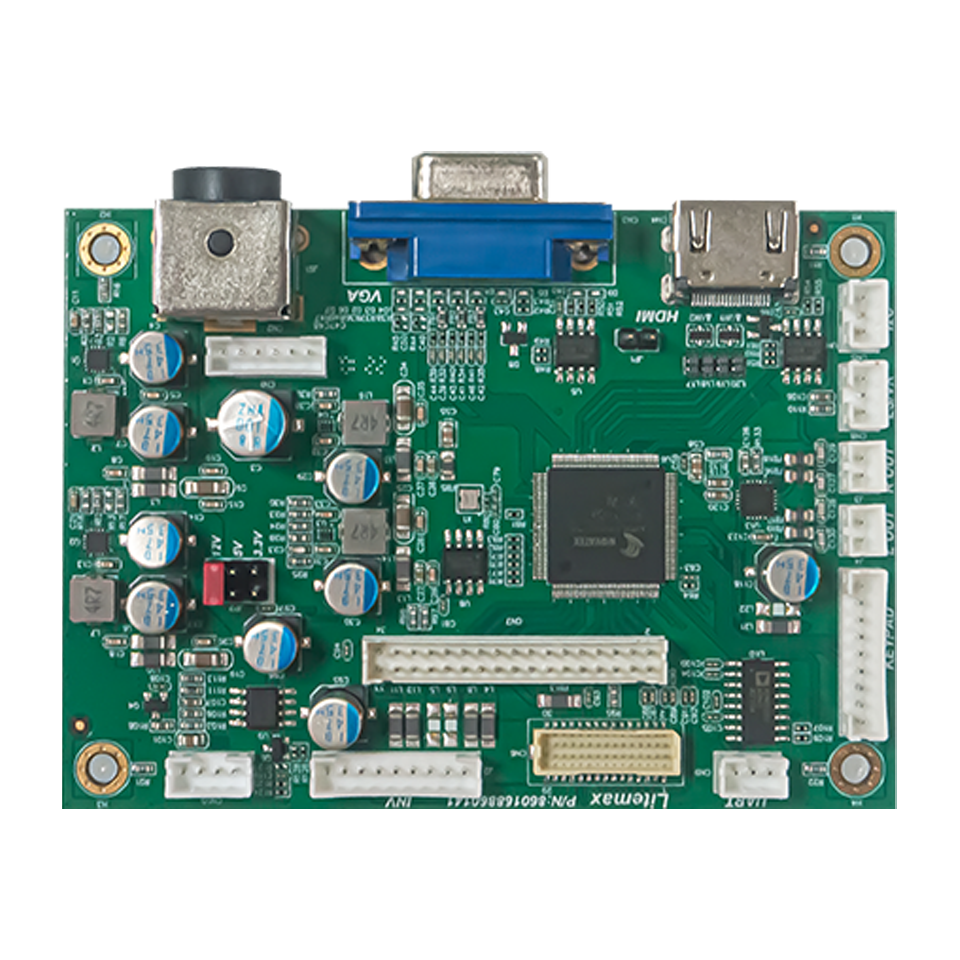

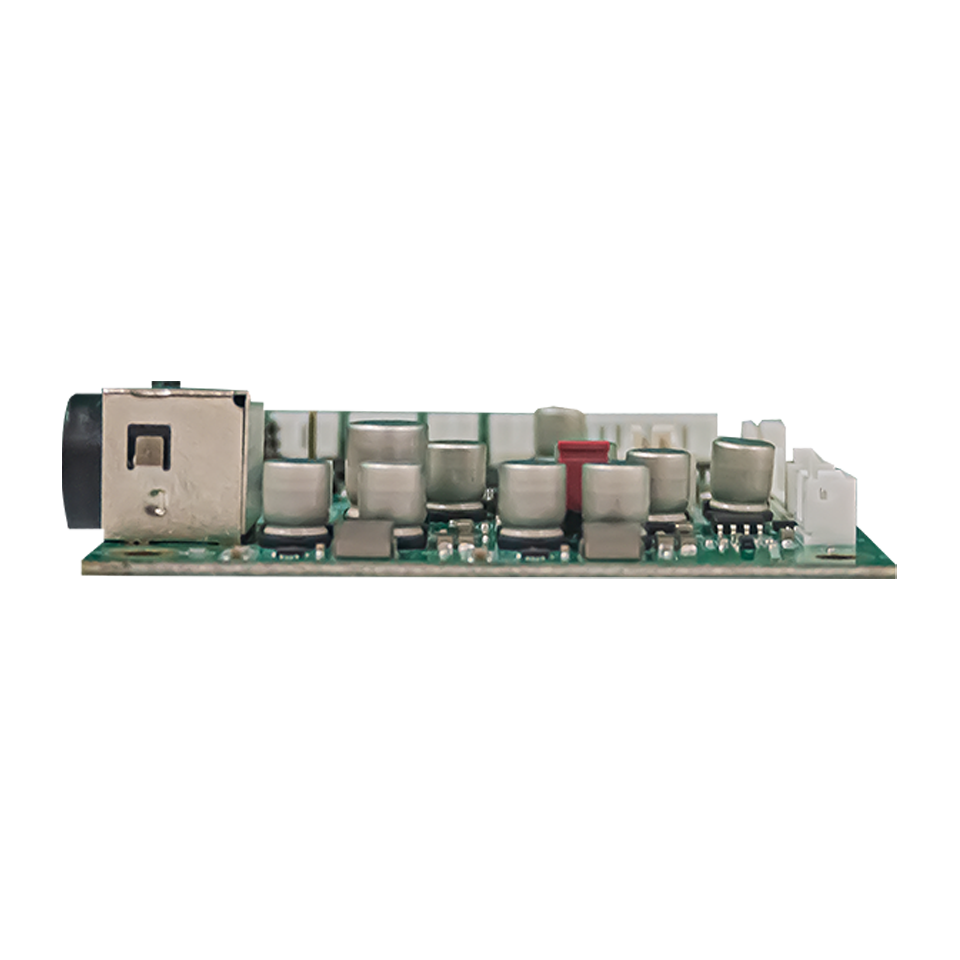

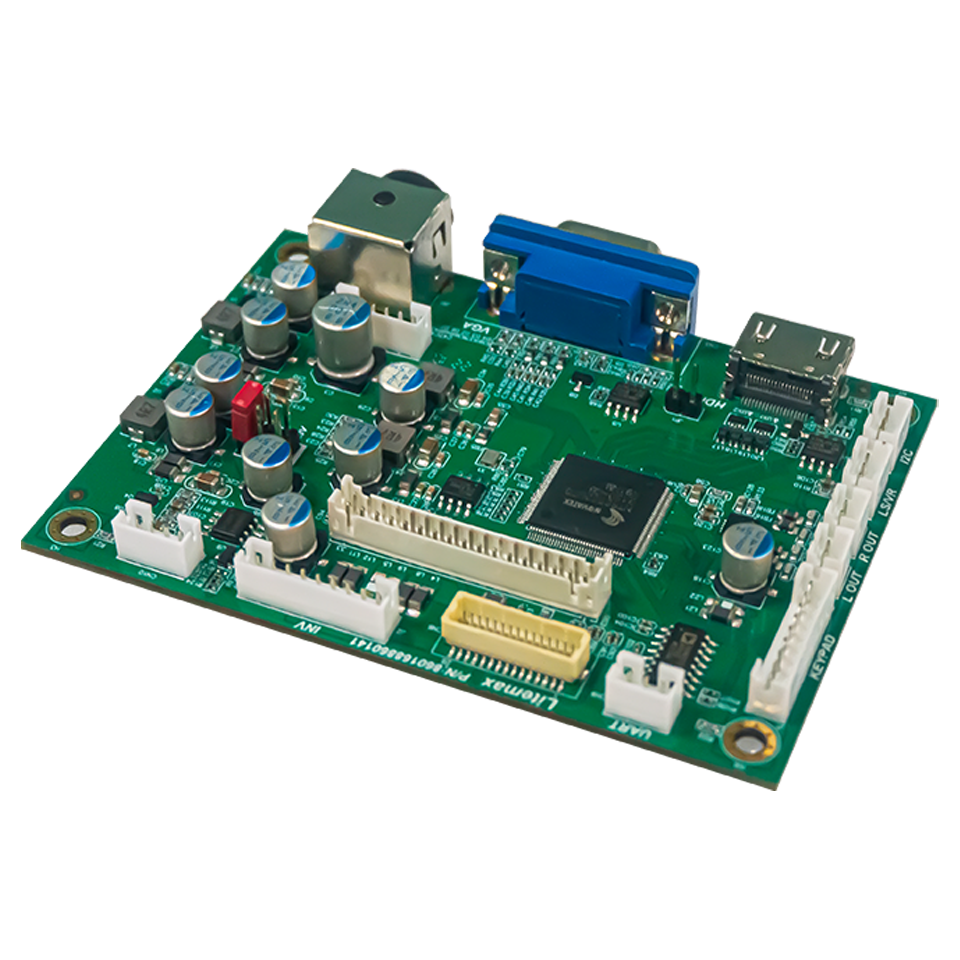

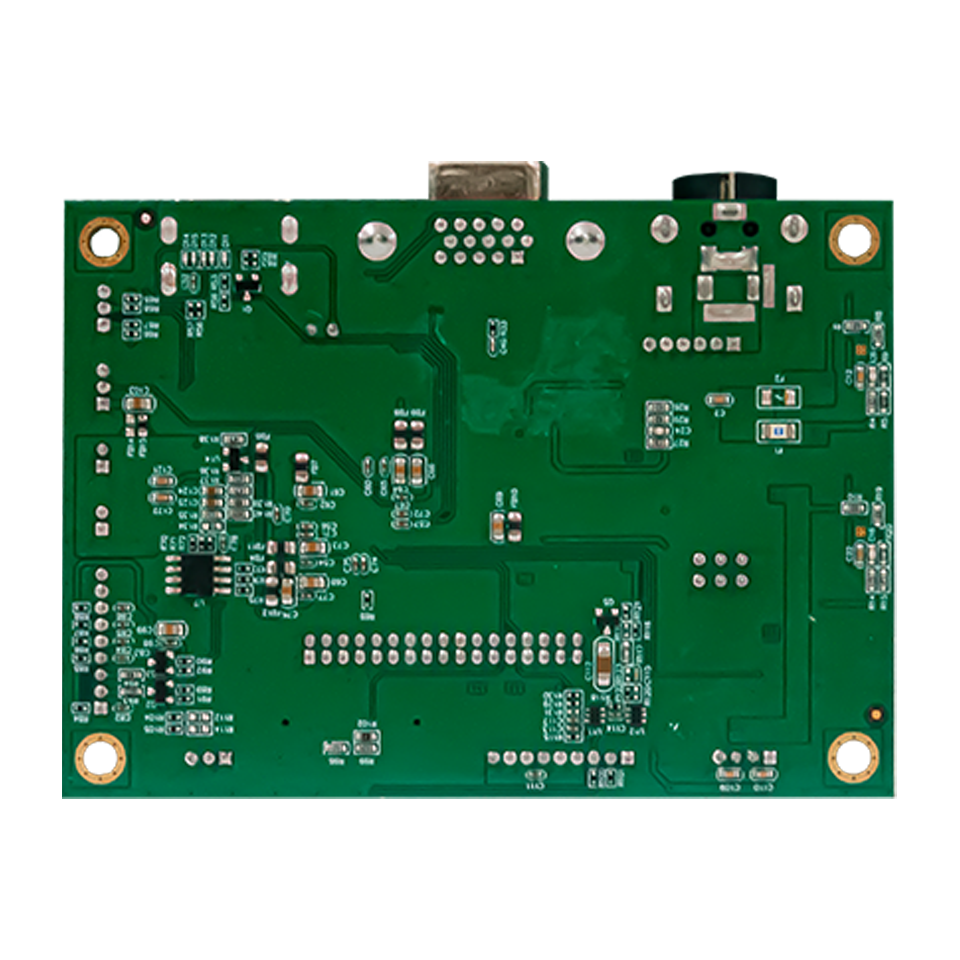

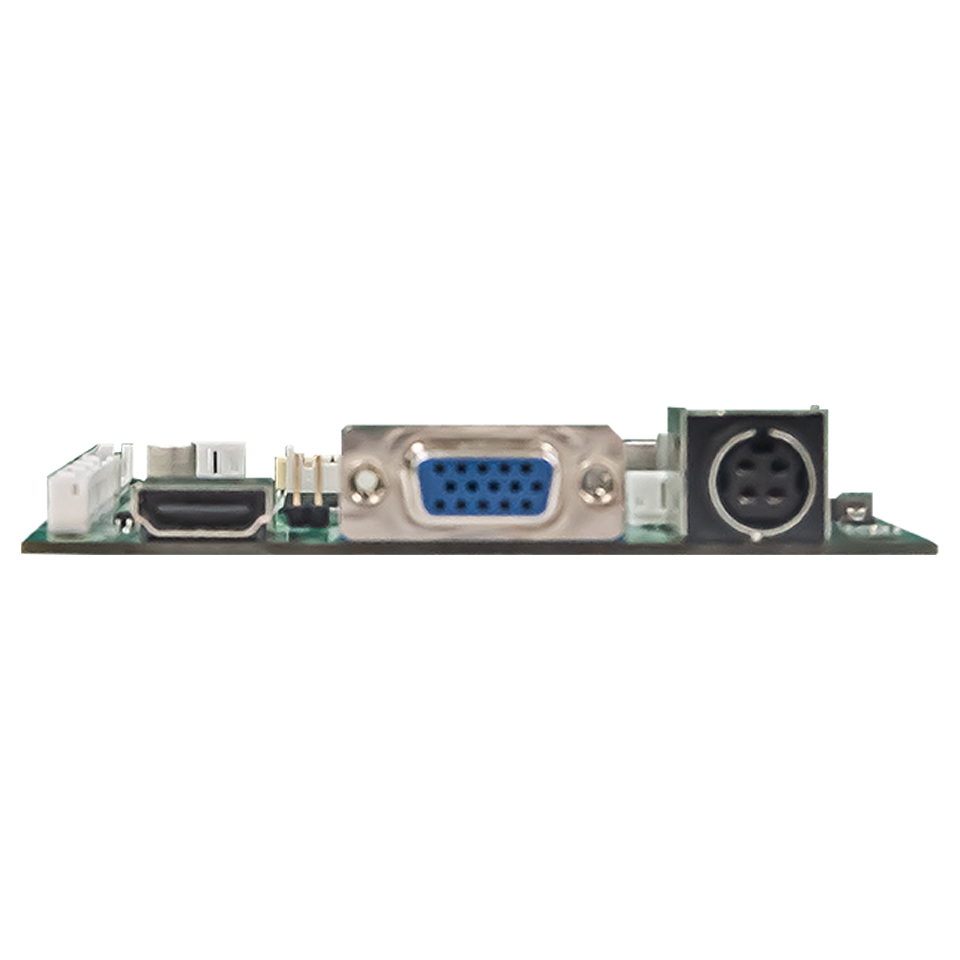

Display Control Board, FHD

AD68862GH

Display Control Board, FHD (1920x1080)
  • Max Resolution Up To FHD (1920x1080)
  • Support e-DP & LVDS interface panel
  • Analog RGB Input supports 1080P
  • HDMI 1.4 Input (1920x1080@60Hz)
  • e-DP interface (2 Lanes)
  • LVDS interface (Dual/Single)
  • EN and PWM or DC dimming for backlight
  • Support Panel DC 3.3V/5V/12V Output
  • OSD Control
  • External RS232 control (Optional)
  • Input Power 12V DC or 24V DC (Optional)
  • External Digital Light Sensor Brightness Control   (Optional)
  • External Light Sensor Brightness Control or VR   (Optional)
Drucken
Anfrage Vergleich
Spezifikationen DOWNLOAD
Model name AD68862GH
Chipset NT68862UFG/C
Max. Resolution FHD ( 1920x1080)
Interface e-DP&LVDS
Input Power DC 12V/24V (Optional)
Panel Power Selection 3.3V, 5V, 12V
Video Input (Standard) VGA, HDMI
RS232 Control Port Yes (Optional)
Light Sensor Yes (Optional)
External VR Control Yes (Optional)
Dimension 100 x 72 mm
4 key Power Switch, Menu, Select (+,-)
OSD Menu Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Pixel Color 8 bits(e-DP)
Inputs VGA, HDMI
Resolution 1920x1080
