Heim / Produkte / Industrial Display / Ubipixel™-Industrial High Brightness LCDs / IPPC-5500-AML0-WG00-1001

Modular Panel PCs & Monitors

IPPC-5500-AML0-WG00-1001

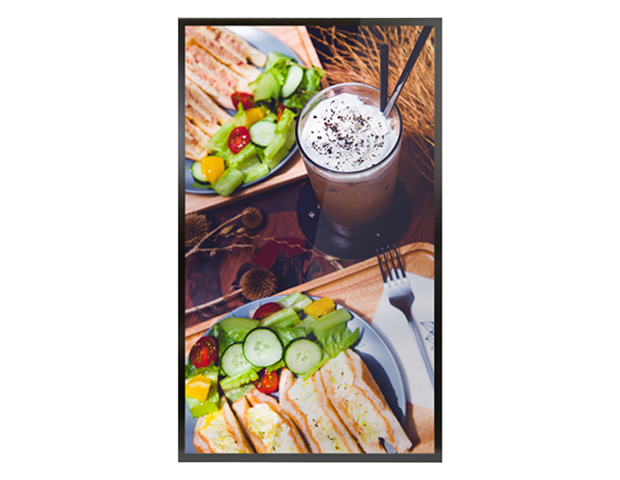

55” TFT LCD, LED Backlight 2500 nits, FHD (1920x1080)
▪ High Brightness: 2500nits (min)
▪ Sunlight Readable
▪ Low Power Consumption
▪ 5mm AG UV/IR Tampered Glass
▪ Full IP56 / IK10
▪ Auto Dimming / IR-Remote
▪ LCD Blacking Defect Free (H-Tni 110℃)
▪ Slim Bezel ▪ BL MTBF: 100,000 hours
DRUCKEN
Anfrage Vergleich

Hauptmerkmale

  • Wide Viewing Angle

  • Transportation

  • Traffice Recognition

  • Touch Screen

  • Sunlight Readable

INTRODUCTION Spezifikationen Download
The IPPC-5500-AML0-WG00-1001 is 2500nits high-brightness display ensures clear visibility in direct sunlight, making it ideal for outdoor and industrial applications. Featuring 5mm AG UV/IR tempered glass, IP56/IK10 durability, and low power consumption, it offers reliability in harsh environments. Auto-dimming, IR remote control, and LCD Blacking Defect Free (H-Tni 110°C) technology enhance performance, while the 100,000-hour backlight MTBF ensures longevity. With a slim bezel design, it delivers both durability and a sleek, modern look.
Model Name IPPC-5500-AML0-WG00-1001
Description 55” TFT LCD, LED Backlight 2500 nits, FHD (1920x1080)
size 55"
Display area (mm) 1209.6(H) x 680.4(V)
Brightness 2500 cd/m2
Resolution 1920 x 1080
Aspect ratio 16 : 9
Contrast ratio 1500 : 1
Pixel pitch (mm) 0.63(H) x 0.63(V)
Viewing angle 178° (H), 178° (V)
Color saturation (NTSC) 80%
Display colors 16.7M
Response Time (Typical) 9ms
Glass 5mm AG UV/IR Tampered Glass
IK Level IK10
IP Level IP56
CPU AML T982，Quad-Core ARM Cortex-A55
RAM DDR4 4GB
Storage eMMC 32GB
Interface  RJ45x1、HDMI in x 2 、USB3.0x1、USB2.0x1
OS Android 14.0 ( Android Open Source Project)
Power input AC 100~240V
Power Consumption 300W (typ.)
Dimensions (mm) 1260.6 x 731.4 x 108
Weight (Net) 58 kg (est.)
Operating Temperature -30 ˚C ~ 50 ˚C
Storage Temperature -40 ˚C ~ 70 ˚C
