Heim / Produkte / Industrial Display / Spanpixel™ - Größe der LCDs anpassen / 0683-M

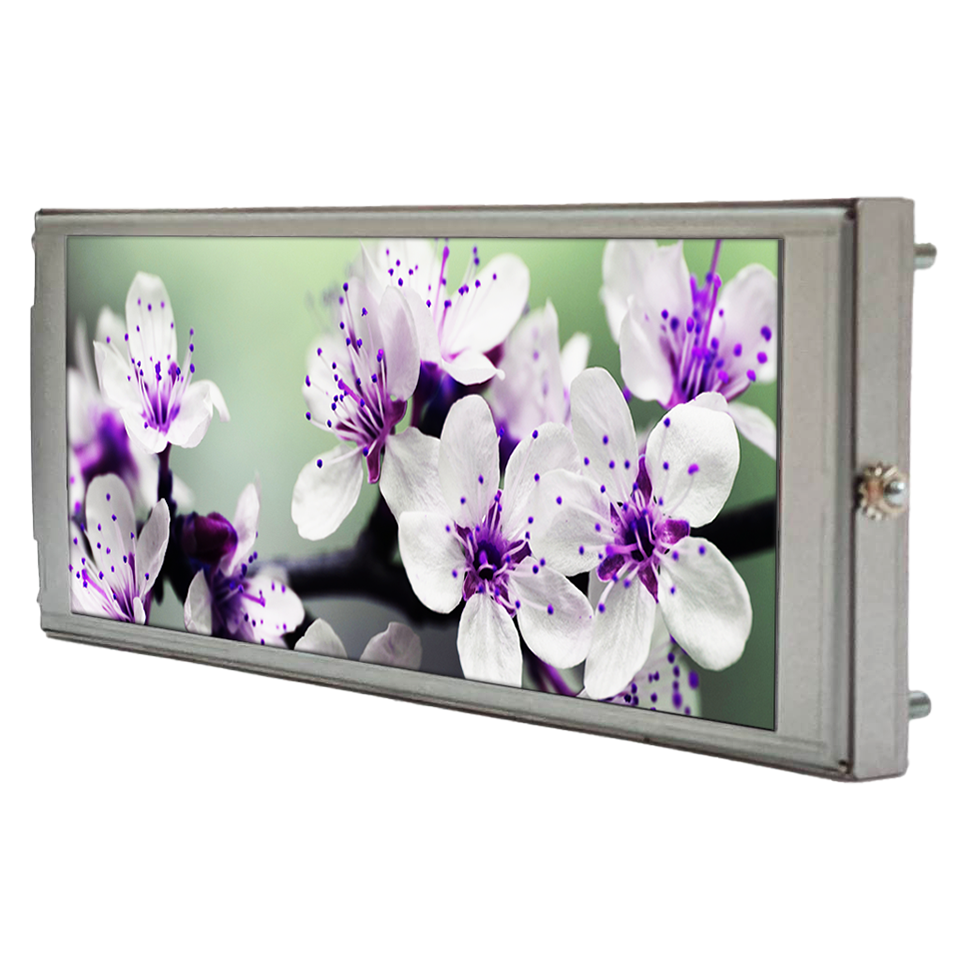

Stretch Digital Display

0683-M

6.8” LCD, 700 nits LED backlight, 480 x 1280 ultra-wide aspect ratio 6:16
  • Ultra-Wide Screen (6 : 16)
  • High Resolution 480x1280
  • Brightness 700 nits
  • LED Backlight
  • PCT(Multi-Touch)
  • Wide viewing angle
  • Support Touchscreen
  • Low Power Consumption
Drucken
Anfrage Vergleich

Main Features

  • Sunlight Readable

  • Stretch Display

  • Low Power Consumption

Spezifikationen DOWNLOAD
Model Name SSD0683-M SSF/SSH0683-M
Description 6.8” LCD, 700 nits LED backlight, 480 x 1280
size 6.8”
Display area (mm) 60.19(H) x 160.51(V) 60.22 (H) x 160.59 (V)
Brightness 700 cd/m2
Resolution 480x1280
Aspect ratio 6 : 16
Contrast ratio 900 : 1
Pixel pitch (mm) 0.1255(H) x 0.1255(V)
Pixel per inch (PPI) 199
Viewing angle 160°(H),160°(V)
Color saturation (NTSC) 84%
Display colors 16.7M
Response time (Typical) 25ms
Panel Interface MIPI
Touch Interface USB
Input Interface HDMI
Input power USB (DC 5V)
Power consumption 3.2W 2.1W( 3.2W with AD Control Bpard )
Dimensions (mm) 71 x 193.6 x 25.56 66.7 x 181.2 x 8.36
Bezel size (U/B/L/R) 12.35/12.35/5.41/5.41 10.31/10.31/3.24/3.24
Weight (Net) 0.35kg 0.15kg
Operating temperature -20℃~70℃
Storage temperature -30℃~80℃
