| Model Name | DLF3200-G | DLH3200-G | DLD3200-G |

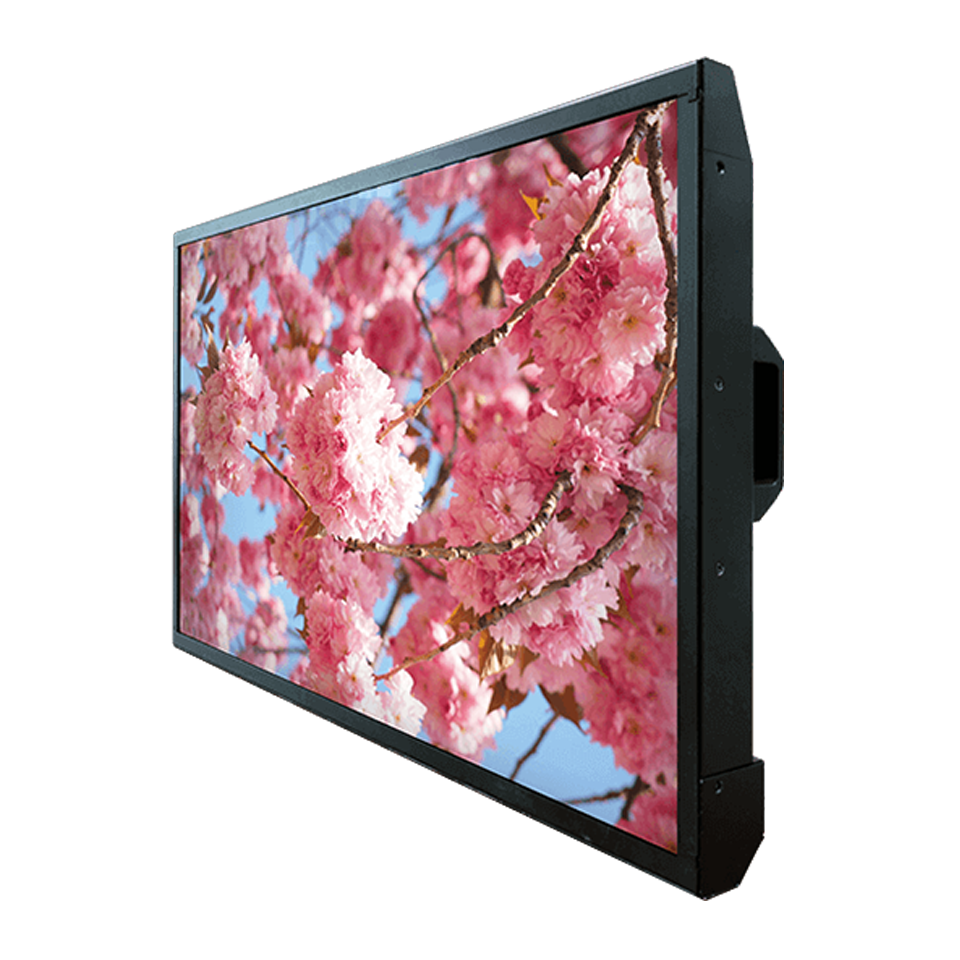

| Description | 32” TFT LCD, LED Backlight 2000nits, FHD(1920x1080) | ||
| size | 32” | ||
| Display area (mm) | 698.4(H) x 392.8(V) | ||
| Brightness | 2000 cd/m² | ||
| Resolution | 1920x1080 | ||
| Aspect ratio | 16:9 | ||
| Contrast ratio | 1400:1 | ||
| Pixel pitch (mm) | 0.36375(H) x 0.36375(V) | ||
| Pixel per inch (PPI) | 68 | ||
| Viewing angle | 178° (H), 178° (V) | ||
| Color saturation (NTSC) | 82% | ||
| Display colors | 16.7M | ||
| Response time (Typical) | 25ms | ||
| Video interface | LVDS | VGA, DVI-D, HDMI | |
| Input power | AC100~240V | ||
| Power consumption | 75.42W | 86.8W | |
| Dimensions (mm) | 732.4 x 426.85x 30.1 | 735.4 x 429.8 x 59.3 | |
| Bezel size (U/B/L/R) | 15/15/15/15 | 16.5/16.5/16.5/16.5 | |
| Weight (Net) | 6 kg | 8.5 kg | |
| Mounting | VESA 100x100, 200x200 | ||
| OSD key | 4 keys (Power switch, menu, +, -) | ||
| OSD control | Brightness, Color, Contrast, Auto Turing, H/V Position…etc | ||
| Operating temperature | 0°C ~ +50°C | ||
| Storage temperature | -20°C ~ +60°C | ||
| Product approval | CE, FCC | ||
下载
-
标题
DLD3200-G
类型Datasheet
发布日期2021/Aug/21
-
标题
DLF_H3200-G
类型Datasheet
发布日期2021/Aug/21
