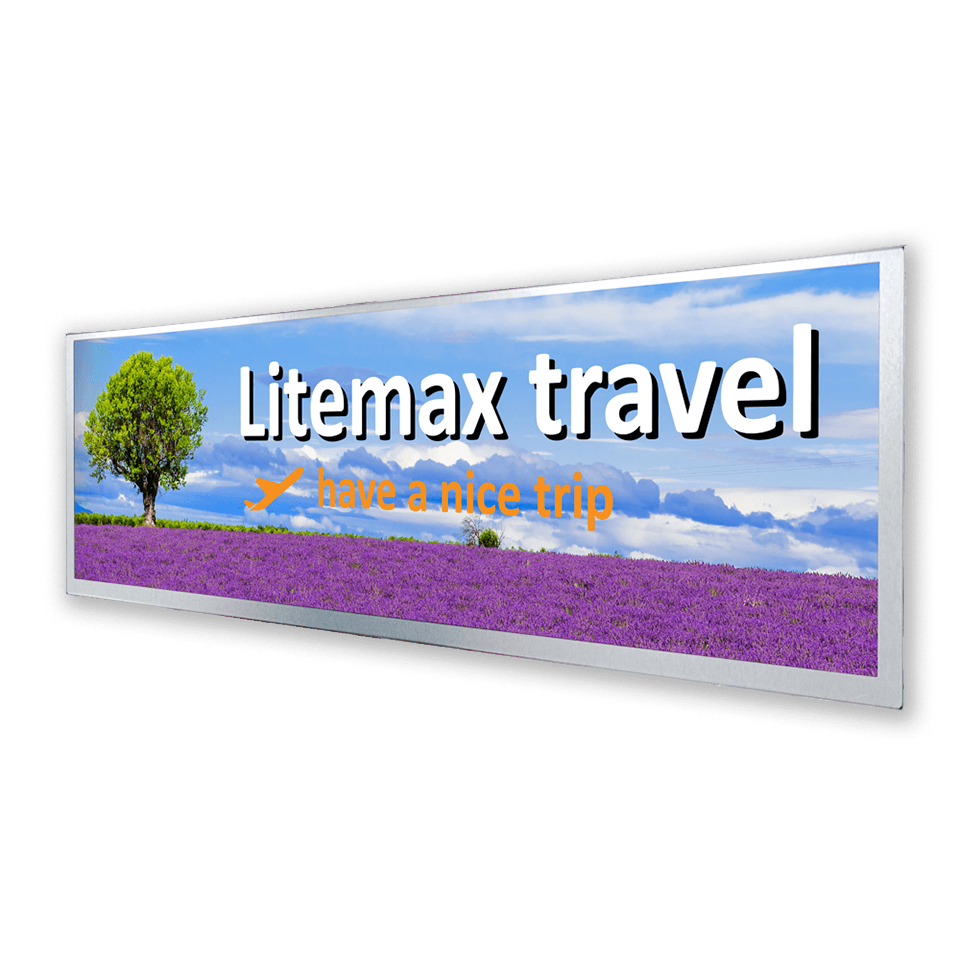

| Model name | SSF1945-M | SSH1945-M | SSD1945-M |
| Description | 19.4” TFT LCD, 1000 nits LED backlight | ||
| Size | 19.4” | ||
| Display area (mm) | 476.06(H) x 132.9(V) | ||
| Brightness | 1000 cd/m² | ||
| Resolution | 1920x536 | ||
| Aspect ratio | 16: 4.5 | ||
| Contrast ratio | 6000: 1 | ||
| Pixel pitch (mm) | 0.248(H) x 0.248(V) | ||
| Pixel per inch (PPI) | 102 | ||
| Viewing angle | 178°(H),178°(V) | ||
| Color saturation (NTSC) | 92% | ||
| Display colors | 16.7M | ||
| Response time (Typical) | 20ms | ||
| Video interface | LVDS | DP | |
| Input power | DC12V | ||
| Power consumption | 21.5W | 23W | |
| Dimensions (mm) | 497x 149.8 x 13.96 | 499.6x 152.3 x 31.8 | |
| Bezel size (U/B/L/R) | 9.6/5.14/8.68/8.68 | 10.8/6.44/9.98/9.98 | |
| Weight (Net) | 0.92 kg | 1.9 kg | |
| Mounting | N/A | ||
| OSD key | 4 keys (Power switch, menu, +, -) | ||
| OSD control | Brightness, color, contrast, H/V position… etc | ||
| Operating temperature | 0 ˚C ~ 50 ˚C | ||
| Storage temperature | -20 ˚C ~ 60 ˚C | ||
